GIHNRK20-LO-B INA

€ 68,82 ex VAT
€ 83,27 in VAT
€ 83,27 in VAT
€ 68,82 ex VAT

Guaranteed same day shipment on orders placed before 18.00h (CEST)
This product is available from stock
Worldwide shipping from the Netherlands
30 days return policy
Track your order through Track & Trace
iDeal, Mastercard, Visa, PayPal

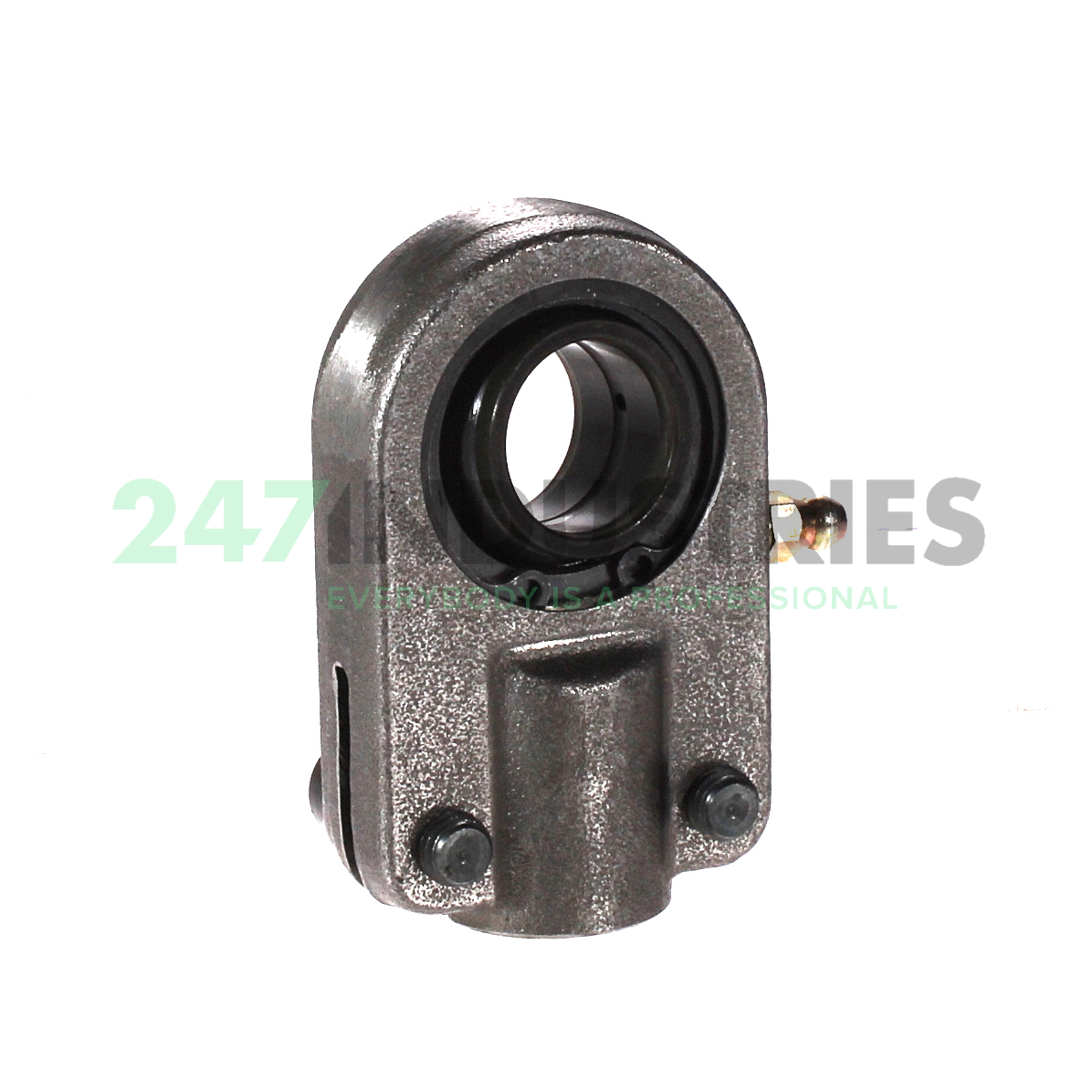

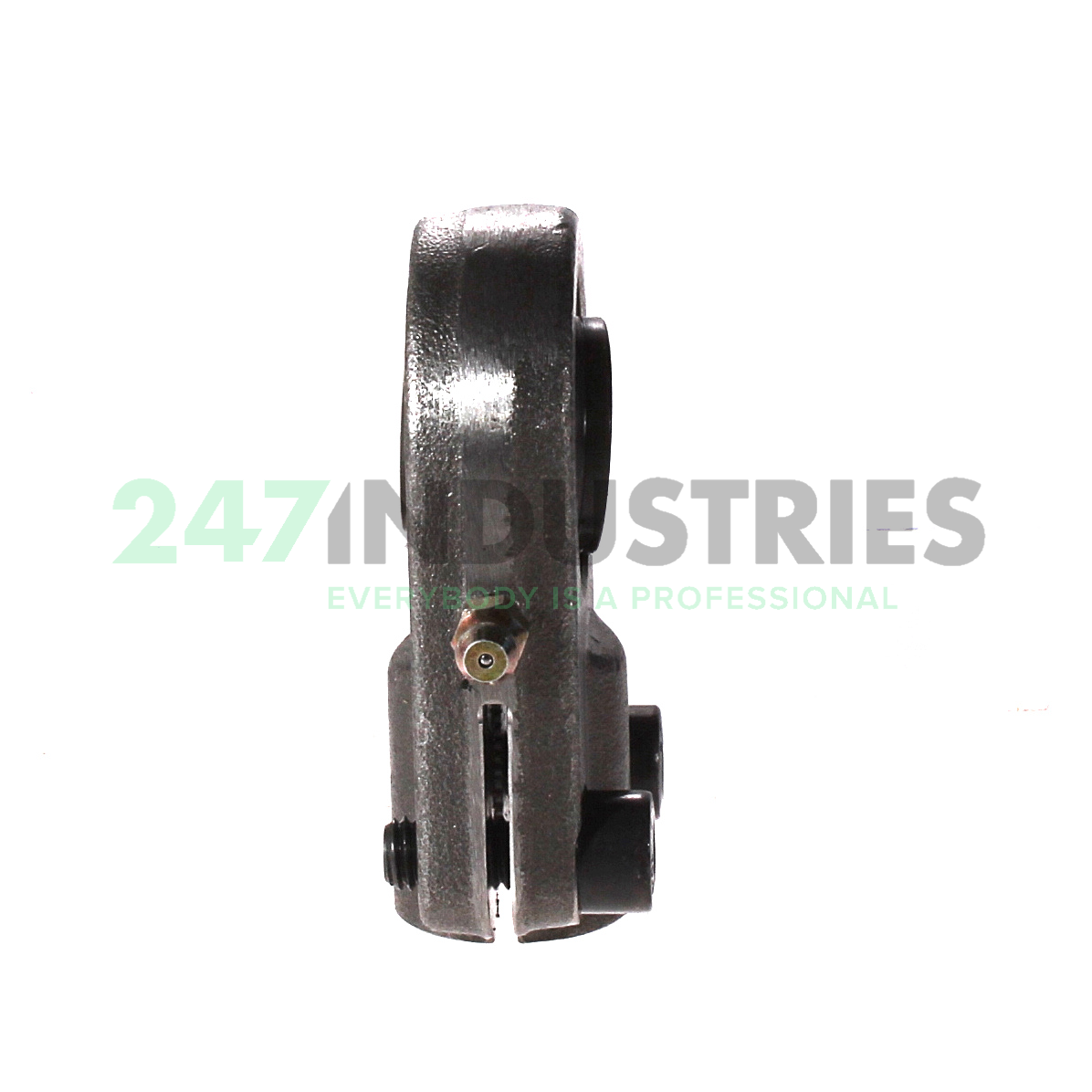

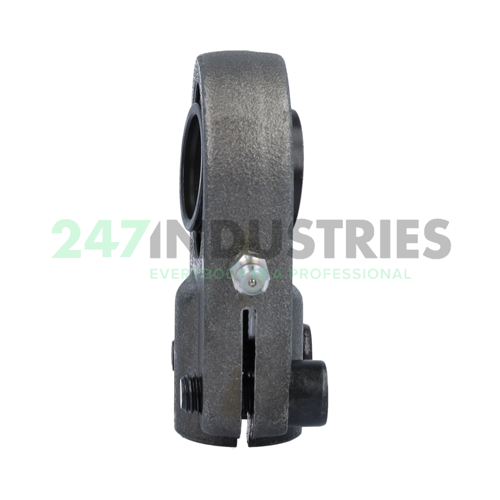

GIHNRK20-LO-B INA

Rod end

Stock
7 pcs in stock and ready for shipment
Brand INA
Article number GIHNRK20-LO-B INA
Inside diameter 20mm
Outside diameter 47mm
Width 20mm
Product description

The GIHNRK20-LO-B INA is a rod end. Rod ends consist of a housing with integral shank and a spherical plain bearing. This plain bearing is composed of an inner and outer ring without rolling elements. Rod ends are often mounted on the end of hydraulic or pneumatic cylinders. They are also used to connect two shafts. Rod ends can accommodate misalignment, and they support radial forces in a tensile or compressive direction.

The GIHNRK20-LO-B INA has a spherical plain bearing with a steel-on-steel sliding contact. Both the outer and inner rings of this bearing are made of steel. Bearings with steel-on-steel sliding contacts are wear-resistant and have a high load carrying capacity. This bearing type requires regular maintenance. Proper lubrication is required to reduce friction and prevent fouling and corrosion.

Help with this product

Downloads and links

Similar to: GIHNRK20-LO-B INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 20
  2. Outer (D) MM 47
  3. Width (B) MM 20
  4. Inner (d) Inch 0.7874
  5. Outer (D) Inch 1.8504
  6. Width (B) Inch 0.7874
  7. Outside diameter bearing (D) mm 35

Suffix description

  1. LO Sliding Contact Surface Is Steel/Steel, Inner Ring Extended On Both Sides, Single Axial Split In Outer Ring
  2. B The Significance Of This Sign Is Not Determined Separately. They Are In Need For Appointment Of Special Features Of The Construction Of Internal Form External Uses. In General, The Use These Only Temporarily, During A Transitional Time To Avoid Confusion. In Some Cases, They Also For Permanent Appointment Of Bearings And Parts Of The Same Type And Size, But With A Differ Interior Design. (Source: Ina-Catalogue No. 307)

Technical details

  1. Availability 7 pcs
  2. Brand INA
  3. Item number GIHNRK20-LO-B INA
  4. Also known as 0066345080000
    SIQG20ES
    TAPR20CE
  5. EAN 4012802525557
  6. Category Rod End

Weight and Dimensions

  1. Weight (kg) 0.35

Product Properties

  1. Seal No Seal
  2. Contact Material Steel on Steel

Data from Schaeffler (medias)

  1. Radial Clearance (G r) 0,03 - 0,082
  2. Radial Static Load Rating C0r (N) 41500
  3. Radial Dynamic Load Rating Cr (N) 29600
  4. Basic static load rating, radial (C 0r) "41500.0000"
  5. ECLASS number 23-05-01-05
  6. ECLASS2 number 23-05-01-05
  7. Medias description Hydraulic rod end, with thread clamping device, right hand thread, requiring maintenance, sliding contact surface: steel/steel, DIN 24338 ISO 6982, open design
