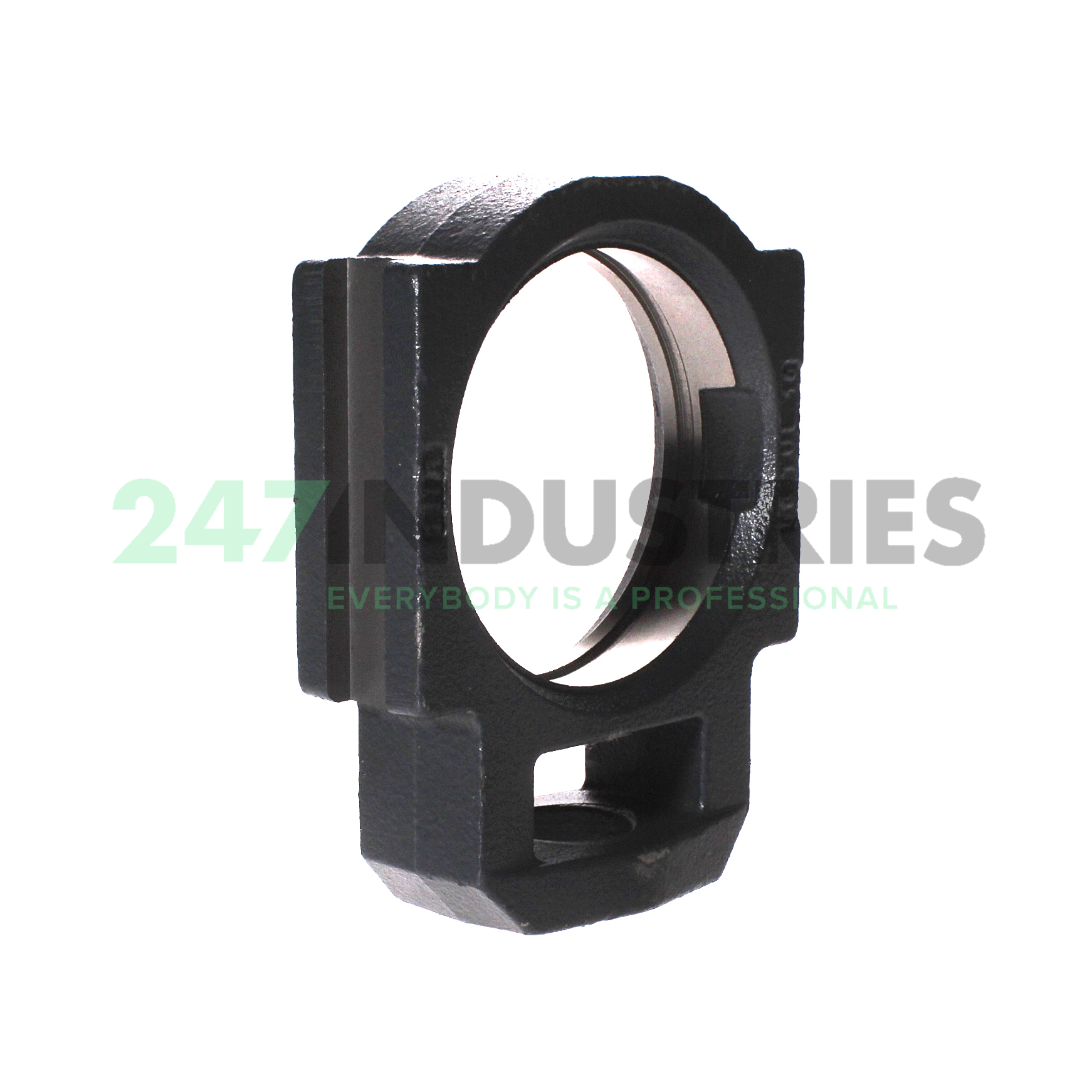

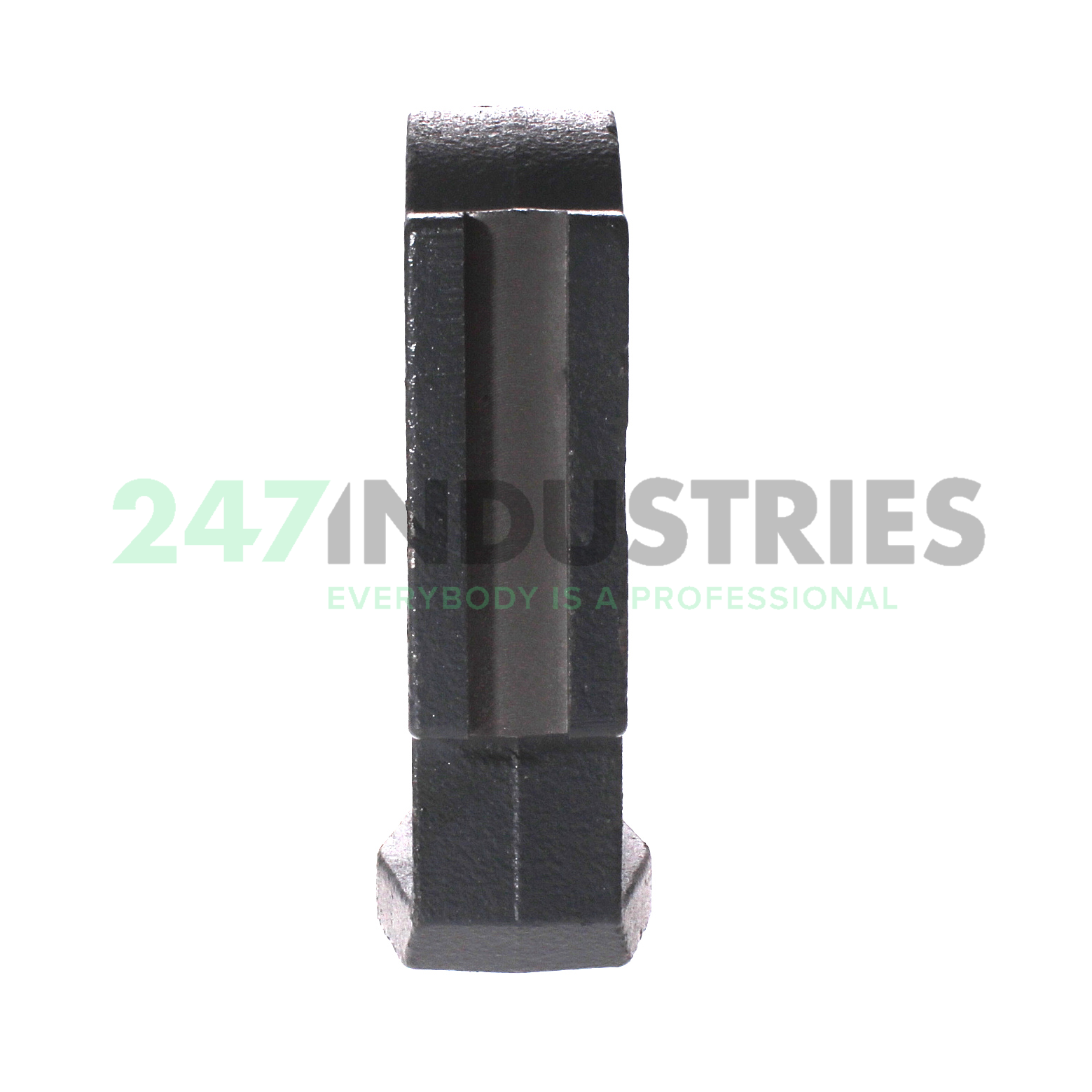

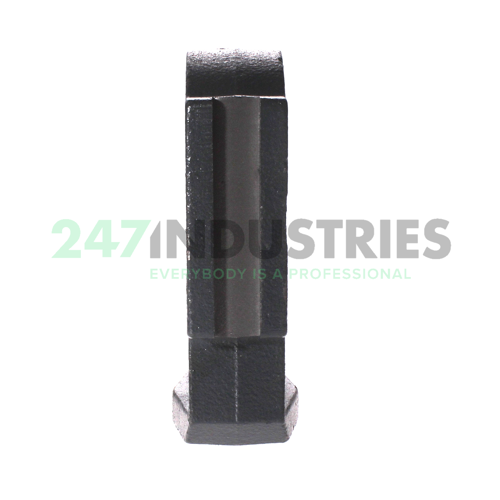

GEHTUE10-GG INA

Name: GEHTUE10-GG INA
Brand: INA

€ 27,57 ex VAT

€ 33,36 in VAT

€ 27,57 ex VAT

	Guaranteed same day shipment on orders placed before 18.00h (CET)
	This product is available from stock
	Worldwide shipping from the Netherlands
	30 days return policy
	Track your order through Track & Trace

GEHTUE10-GG INA

Housing / Y-Housing

Stock	30 pcs in stock and ready for shipment
Brand	INA
Article number	GEHTUE10-GG INA
Inside diameter	90mm
Outside diameter	149mm
Width	50mm

Product description

The GEHTUE10-GG INA housing is designed for insert bearings (sold separately). These housings simplify the installation of bearings and shafts, while also providing support and protection to the bearings. They enhance maintenance efficiency and extend the bearing's lifespan. A matching bearing, which is easy to install, completes the desired set.

The GEHTUE10-GG INA housing is suitable for use with insert bearings. This bearing type's design is based on single-row deep groove ball bearings. It comprises a single- or double-sided widened inner ring, a solid outer ring, a ball bearing cage, and seals. Insert bearings are straightforward to (dis)assemble.

Email us at: help@247industries.com Response within 24h

Downloads and links

Link to manufacturer

Similar to: GEHTUE10-GG INA

Loading similair products

Product specifications

Inside diameter 90mm
Outside diameter 149mm
Width 50mm

All dimensions

Inner (d) MM 90
Outer (D) MM 149
Width (B) MM 50
Inner (d) Inch 3.5433
Outer (D) Inch 5.8661
Width (B) Inch 1.9685

Suffix description

GG Flake Graphite Cast Iron
>A The Significance Of This Sign Is Not Determined Separately. They Are In Need For Appointment Of Special Features Of The Construction Of Internal Form External Uses. In General, The Use These Only Temporarily, During A Transitional Time To Avoid Confusion. In Some Cases, They Also For Permanent Appointment Of Bearings And Parts Of The Same Type And Size, But With A Differ Interior Design. (Source: Ina-Catalogue No. 307)

Technical details

Availability 30 pcs
Brand INA
Item number GEHTUE10-GG INA
Also known as 0871068680000
NIP DIN71412-A R 1/8
NIP DIN71412-B R 1/8
NIP DIN71412-C R 1/8
EAN 4064327137784
Category Housing / Y-Housing
