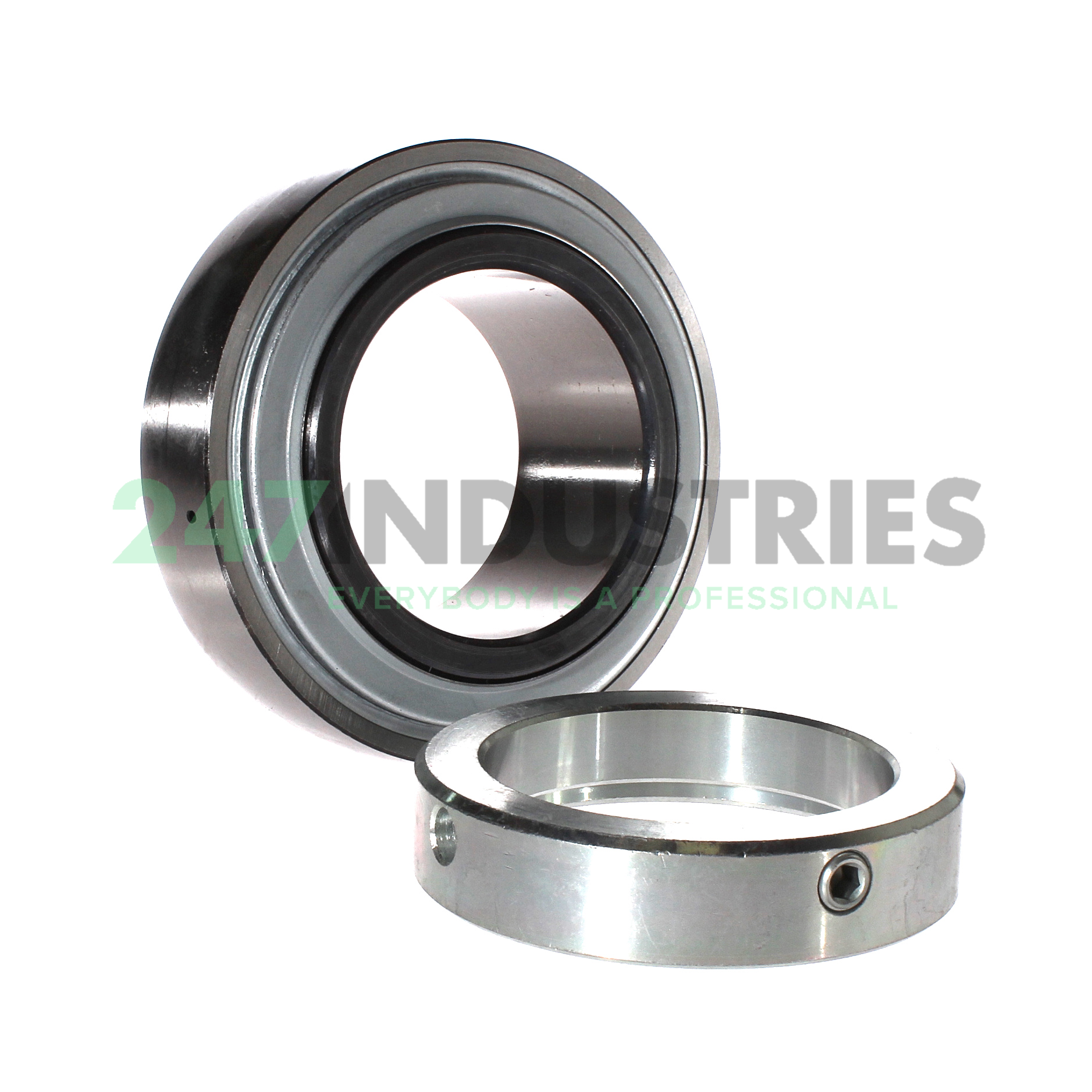

GE80-XL-KRR-B INA

All dimensions

1. Inner (d) MM 80,00
2. Outer (D) MM 140,00
3. Width (B) MM 70,70
4. Inner (d) Inch 3.1496
5. Outer (D) Inch 5.5118
6. Width (B) Inch 2.7835
7. Outside diameter (D SP) mm 140,00
8. Width (b) mm 53,20
9. Locking collar total width (B 1) mm 70,70

Suffix description

1. XL X-Life
2. KRR Lip Seals On Both Sides (R Type Seal - Has A Zinc Plated Inner And Outer Cover. Between The Covers There Is An NBR Seal Lip Running On A Ground Shoulder)
3. B Bearing With Spherical Outer Ring

Technical details

1. Availability 69 pcs
2. Brand INA
3. Item number GE80-XL-KRR-B INA
4. Also known as 0008050760000
   GE80-KRR-B

5. EAN 4012802783643
6. Category Bearings for Housings

Weight and Dimensions

1. Weight (kg) 2.95

Product Properties

1. Seal 2RS - Rubber Seal on Two Sides
2. Lubrication Standard Lubrication
3. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 54000
2. Radial Dynamic Load Rating Cr (N) 76000
3. Basic static load rating, radial (C 0r) "54000.0000"
4. ECLASS number 23-05-08-02
5. ECLASS2 number 23-05-08-02
6. Medias description Radial insert ball bearing GE..-XL-KRR-B

Downloads and links

1. X-life brochure X-life brochure
2. Link to manufacturer Link to manufacturer
