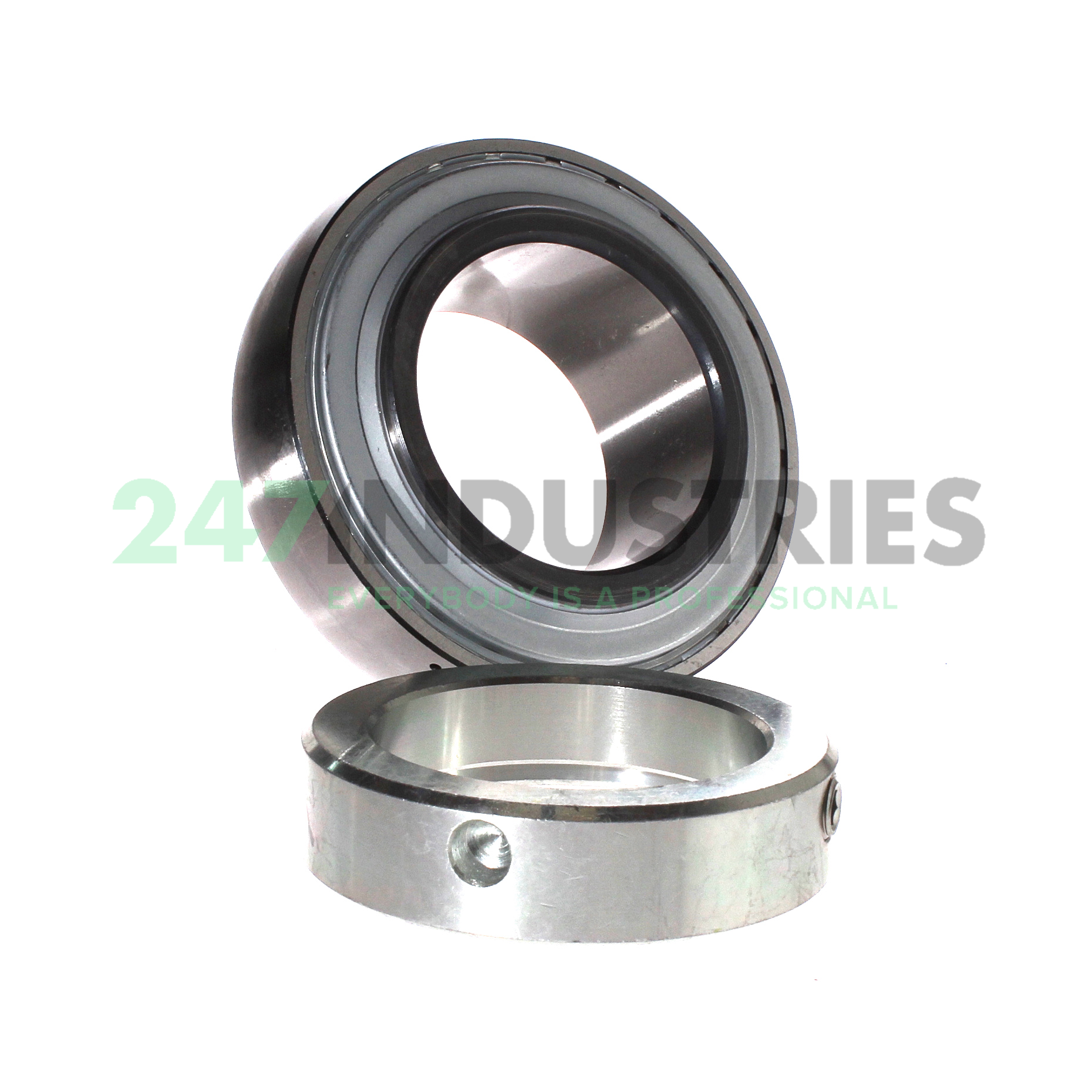

GE70-XL-KRR-B-FA164 INA

All dimensions

1. Inner (d) MM 70
2. Outer (D) MM 125
3. Width (B) MM 66
4. Inner (d) Inch 2.7559
5. Outer (D) Inch 4.9213
6. Width (B) Inch 2.5984
7. Outside diameter (D SP) mm 125
8. Width (b) mm 48,5
9. Locking collar total width (B 1) mm 66

Suffix description

1. XL X-Life
2. KRR Lip Seals On Both Sides (R Type Seal - Has A Zinc Plated Inner And Outer Cover. Between The Covers There Is An NBR Seal Lip Running On A Ground Shoulder)
3. B Bearing With Spherical Outer Ring
4. FA164 High Temperature Design Up To +250°C

Technical details

1. Availability 8 pcs
2. Brand INA
3. Item number GE70-XL-KRR-B-FA164 INA
4. Also known as 0009750790000
   GE70-KRR-B-FA164

5. EAN 4012802819922
6. Category Bearings for Housings

Weight and Dimensions

1. Weight (kg) 2.15

Product Properties

1. Seal 2F - Standard Seal for Y-bearings
2. Lubrication Standard Lubrication
3. Special Treatment E - High Temp Design Up to +250°C

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 44000
2. Radial Dynamic Load Rating Cr (N) 66000
3. ECLASS number 23-05-08-02
4. ECLASS2 number 23-05-08-02
5. Medias description Radial insert ball bearings GE..-KRR-B-FA164, spherical outer ring, location by eccentric locking collar, R seals on both sides, for temperatures up to +250°C

Downloads and links

1. X-life brochure X-life brochure
2. Link to manufacturer Link to manufacturer
