GE65-SW-A INA

Spherical plain bearing

Stock
108 pcs in stock and ready for shipment
Brand INA
Article number GE65-SW-A INA
Inside diameter 65,00mm
Outside diameter 100,00mm
Width 23,00mm
Product description

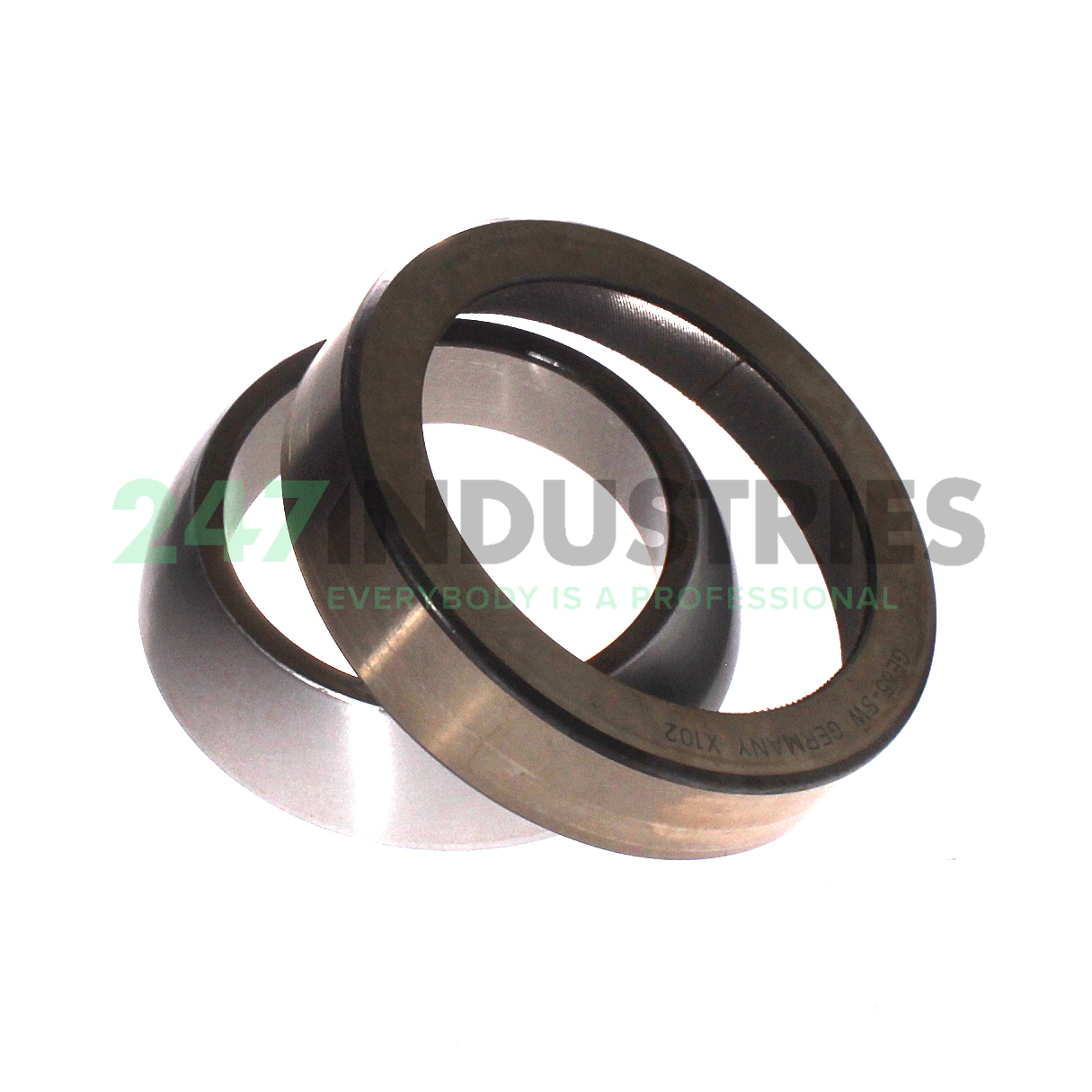

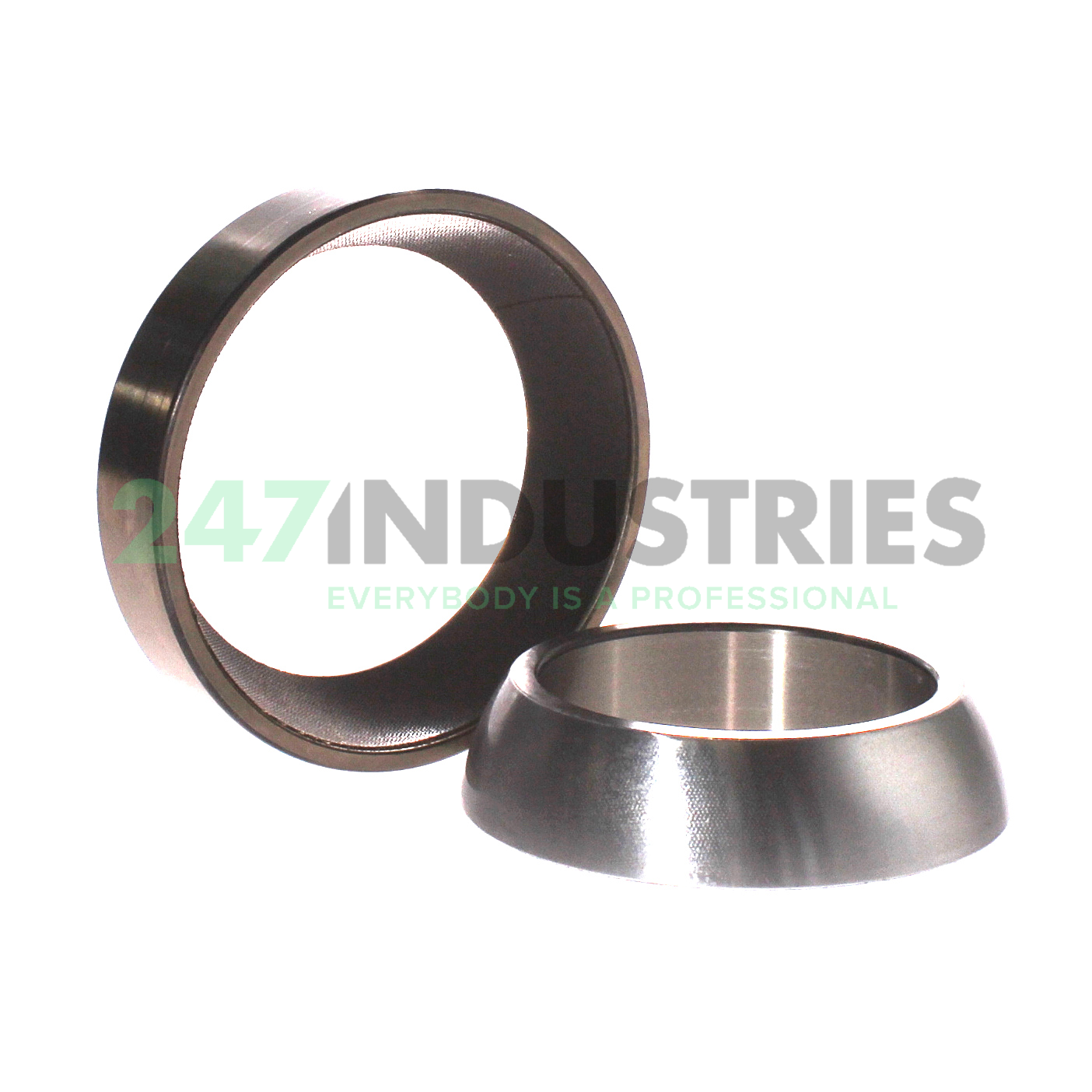

The GE65-SW-A INA is a spherical plain bearing. Spherical plain bearings are two-piece plain bearings. They have no rolling elements, but consist of an inner and outer ring. The inner ring has a convex outer surface. The outer ring has a concave inner surface. This construction gives spherical plain bearings their high load carrying capacity and capacity to accommodate misalignment.

The GE65-SW-A INA has a steel-on-PTFE sliding contact which makes it maintenance-free. PTFE is a special plastic. During the run-in period of these plain bearings, particles of PTFE are deposited on the opposite running surface. They fill in the small irregularities of the inner ring surface, creating a smooth surface. As a result, the components fit each other perfectly.

Read more Show less
Help with this product

Downloads and links

Similar to: GE65-SW-A INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 65,00
  2. Outer (D) MM 100,00
  3. Width (B) MM 23,00
  4. Inner (d) Inch 2.5591
  5. Outer (D) Inch 3.9370
  6. Width (B) Inch 0.9055
  7. Outside diameter bearing (D) mm 100,00
  8. Height (T) mm 23,00
  9. Width inner ring (B) mm 22,00

Suffix description

  1. SW Sliding Contact Surface Hard Chromium/Elgoglide® (Elgoglide®=PTFE (Polyetrafluoroethylene))
  2. A The Significance Of This Sign Is Not Determined Separately. They Are In Need For Appointment Of Special Features Of The Construction Of Internal Form External Uses. In General, The Use These Only Temporarily, During A Transitional Time To Avoid Confusion. In Some Cases, They Also For Permanent Appointment Of Bearings And Parts Of The Same Type And Size, But With A Differ Interior Design. (Source: Ina-Catalogue No. 307)

Technical details

  1. Availability 108 pcs
  2. Brand INA
  3. Item number GE65-SW-A INA
  4. Also known as 0066518790000
  5. EAN 4012802532685
  6. Category Spherical Plain Bearing

Weight and Dimensions

  1. Weight (kg) 0.8

Product Properties

  1. Seal No Seal
  2. Contact Material Steel on PTFE

Data from Schaeffler (medias)

  1. Radial Static Load Rating C0r (N) 867000
  2. Radial Dynamic Load Rating Cr (N) 520000
  3. Basic static load rating, radial (C 0r) "867000.0000"
  4. ECLASS number 23-05-01-06
  5. ECLASS2 number 23-05-01-06
  6. Medias description Angular contact spherical plain bearing, maintenance-free, DIN ISO 12240-2, inner ring curved surface with hard chromium coating, open design
