GE60-AW-A INA

Spherical Plain Bearing

Stock
10 pcs in stock and ready for shipment
Brand INA
Article number GE60-AW-A INA
Inside diameter 60mm
Outside diameter 150mm
Width 45mm
Product description

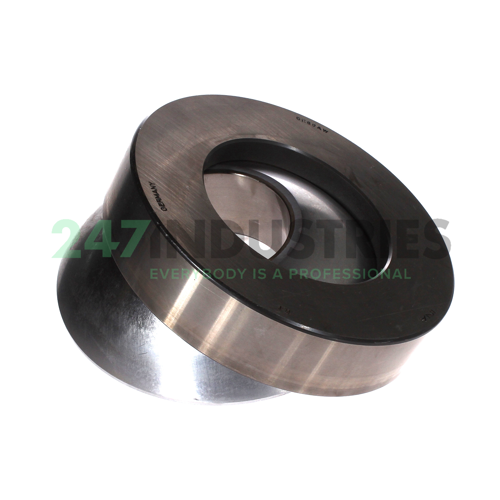

The GE60-AW-A INA is an axial spherical plain bearing. Axial spherical plain bearings are two-piece plain bearings. They have no rolling elements, but consist of a shaft washer and a housing washer. The shaft washer has a convex surface. The housing washer has a concave inner surface. This construction gives spherical plain bearings their high load carrying capacity and capacity to accommodate misalignment.

The GE60-AW-A INA has a steel-on-PTFE sliding contact which makes it maintenance-free. PTFE is a special plastic. During the run-in period of these plain bearings, particles of PTFE are deposited on the opposite running surface. They fill in the small irregularities of the inner ring surface, creating a smooth surface. As a result, the components fit each other perfectly.

Read more Show less
Help with this product

Downloads and links

Similar to: GE60-AW-A INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 60
  2. Outer (D) MM 150
  3. Width (B) MM 45
  4. Inner (d) Inch 2.3622
  5. Outer (D) Inch 5.9055
  6. Width (B) Inch 1.7717
  7. Outside diameter bearing (D) mm 150
  8. Height (T) mm 45
  9. Width inner ring (B) mm 37

Suffix description

  1. AW Sliding Contact Surface Hard Chromium/Elgoglide® (Elgoglide®=PTFE (Polyetrafluoroethylene))
  2. A The Significance Of This Sign Is Not Determined Separately. They Are In Need For Appointment Of Special Features Of The Construction Of Internal Form External Uses. In General, The Use These Only Temporarily, During A Transitional Time To Avoid Confusion. In Some Cases, They Also For Permanent Appointment Of Bearings And Parts Of The Same Type And Size, But With A Differ Interior Design. (Source: Ina-Catalogue No. 307)

Technical details

  1. Availability 10 pcs
  2. Brand INA
  3. Item number GE60-AW-A INA
  4. Also known as 0066518360000
    GX60F
  5. EAN 4012802532715
  6. Category Spherical Plain Bearing

Weight and Dimensions

  1. Weight (kg) 4.4

Product Properties

  1. Seal No Seal
  2. Contact Material Steel on PTFE

Data from Schaeffler (medias)

  1. Axial Static Load Rating C0a (N) 3680000
  2. Axial Dynamic Load Rating Ca (N) 2210000
  3. ECLASS number 23-05-01-06
  4. ECLASS2 number 23-05-01-06
  5. Medias description Axial spherical plain bearing, maintenance-free, DIN ISO 12240-3, shaft location washer curved surface with hard chromium coating, open design
