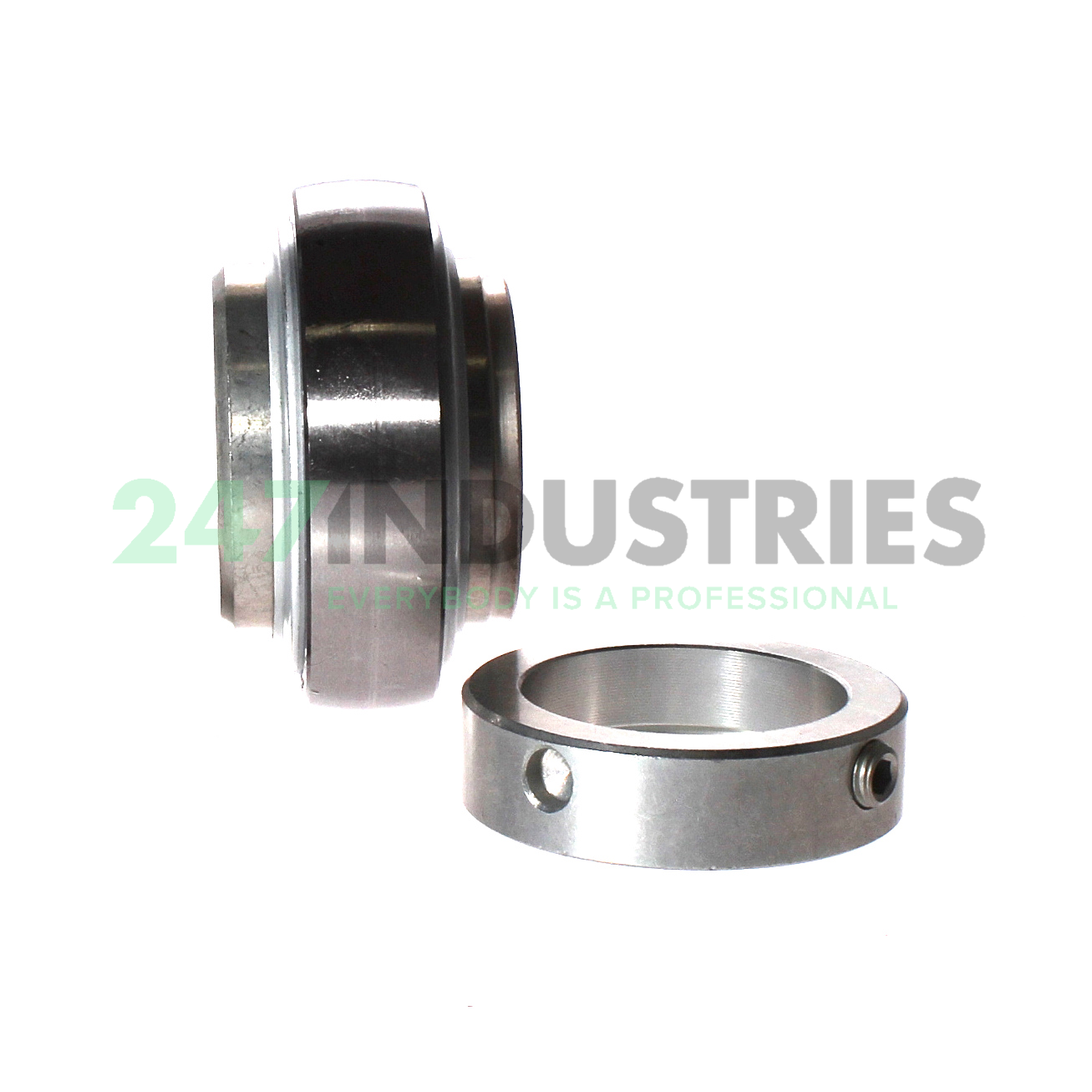

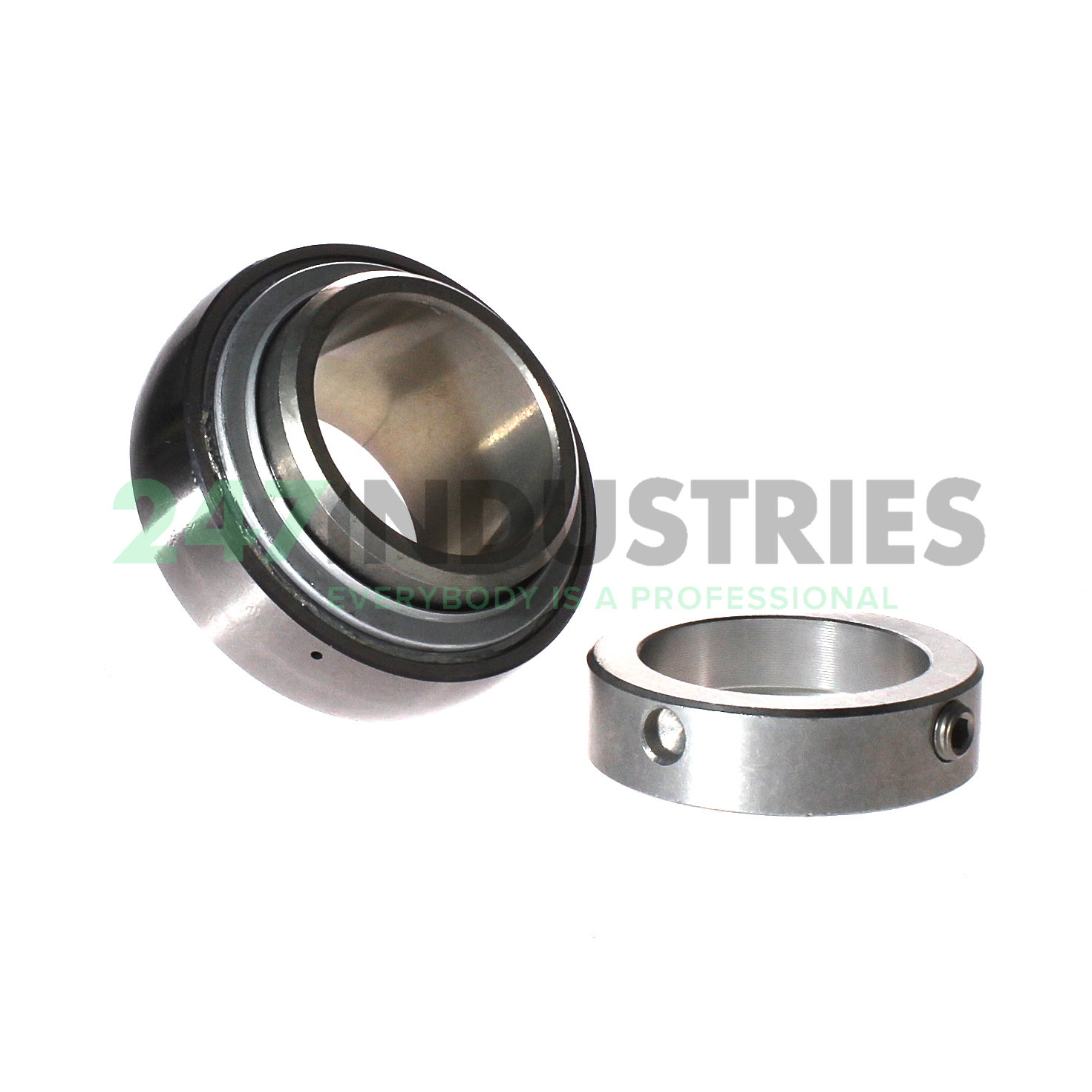

GE50-XL-KRR-B INA

All dimensions

1. Inner (d) MM 50
2. Outer (D) MM 90
3. Width (B) MM 62,7
4. Inner (d) Inch 1.9685
5. Outer (D) Inch 3.5433
6. Width (B) Inch 2.4685
7. Outside diameter (D SP) mm 90
8. Width (b) mm 49,2
9. Locking collar total width (B 1) mm 62,8

Suffix description

1. XL X-Life
2. KRR Lip Seals On Both Sides (R Type Seal - Has A Zinc Plated Inner And Outer Cover. Between The Covers There Is An NBR Seal Lip Running On A Ground Shoulder)
3. B Bearing With Spherical Outer Ring

Technical details

1. Availability 55 pcs
2. Brand INA
3. Item number GE50-XL-KRR-B INA
4. Also known as 0008040530000
   56210
   GE50-KRR-B
   YEL210-2F

5. EAN 4012802783995
6. Category Bearings for Housings

Weight and Dimensions

1. Weight (kg) 0.965

Product Properties

1. Seal 2F - Standard Seal for Y-bearings
2. Lubrication Standard Lubrication
3. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 23200
2. Radial Dynamic Load Rating Cr (N) 37500
3. ECLASS number 23-05-08-02
4. ECLASS2 number 23-05-08-02
5. Medias description Radial insert ball bearing GE..-XL-KRR-B
