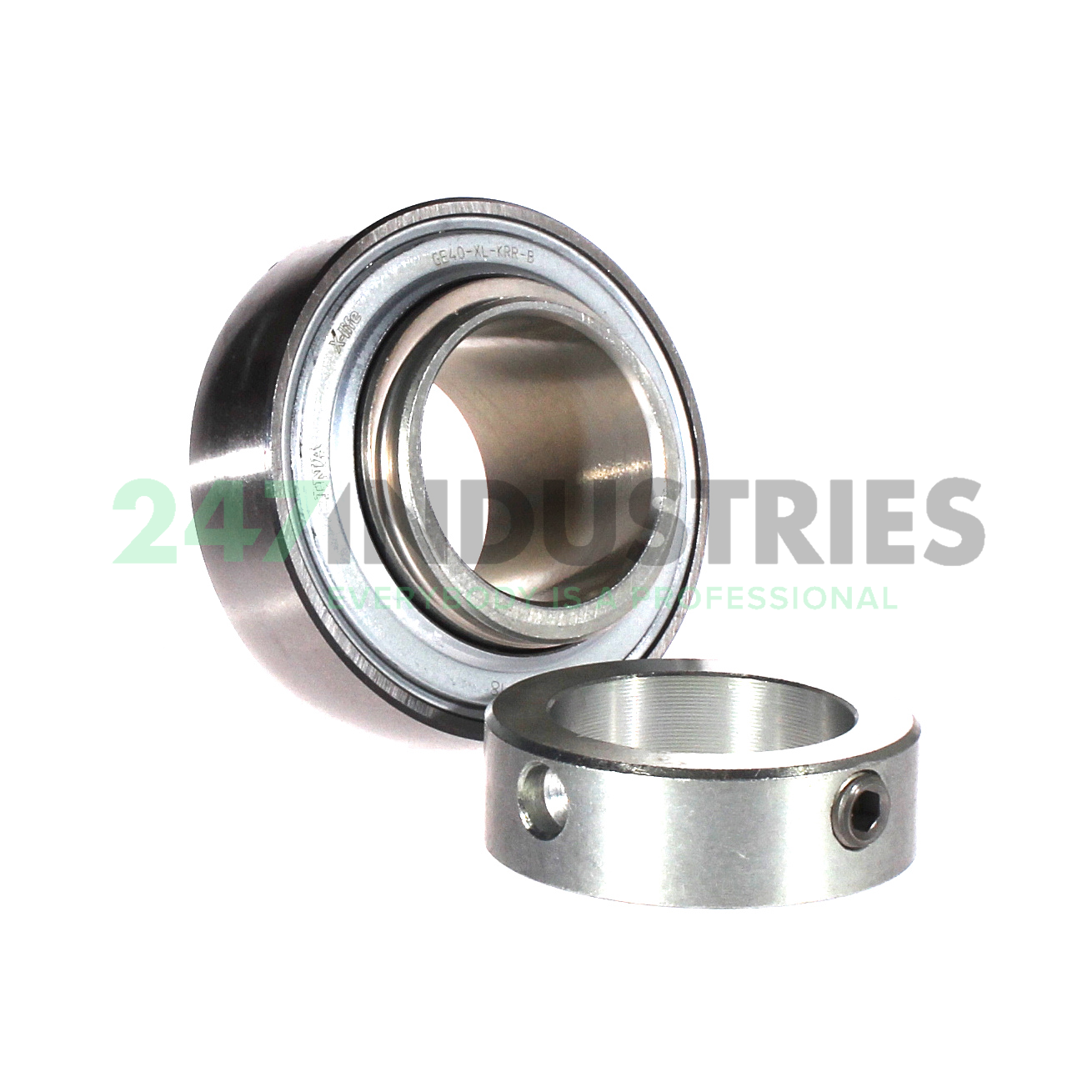

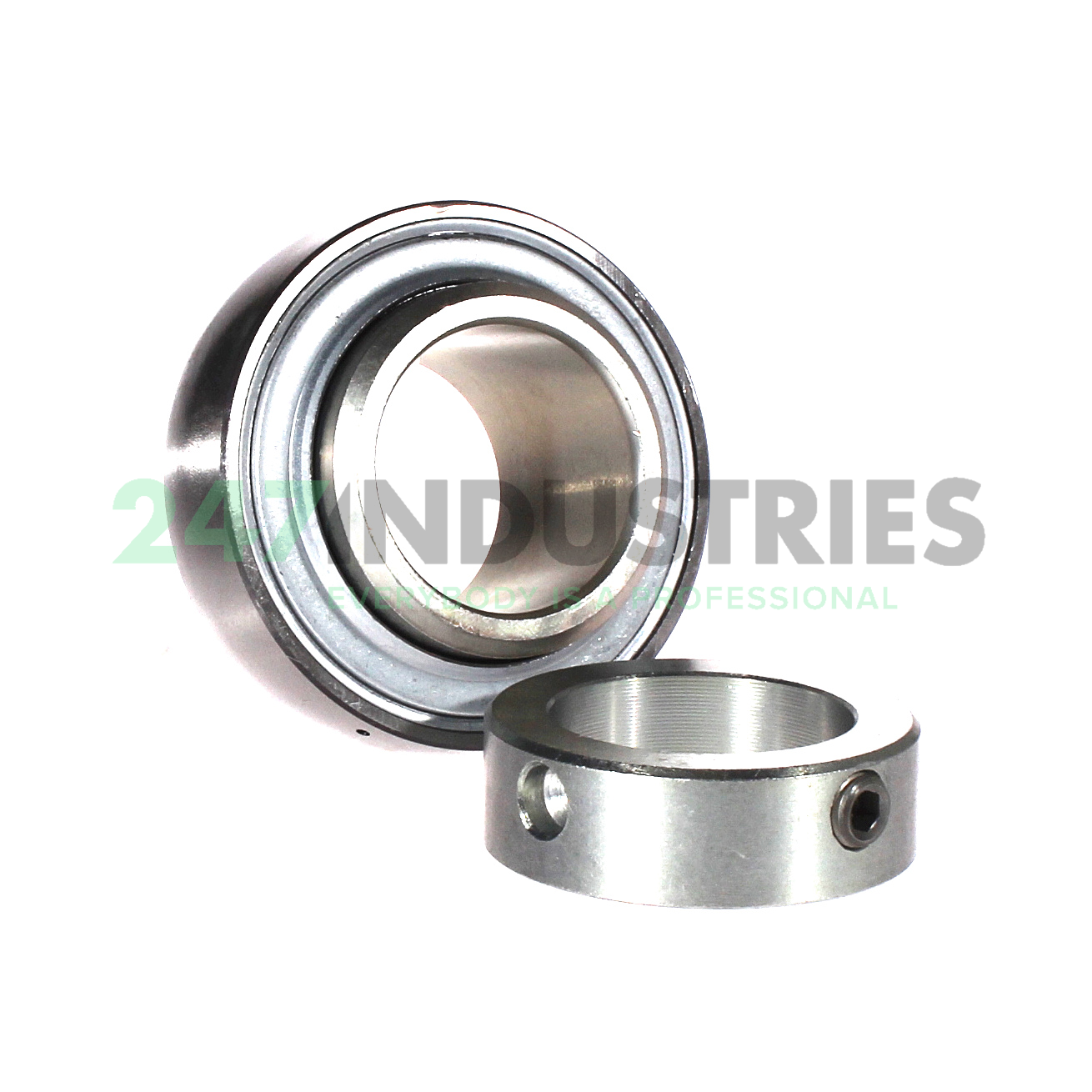

GE40-XL-KRR-B INA

All dimensions

1. Inner (d) MM 40,00
2. Outer (D) MM 80,00
3. Width (B) MM 56,30
4. Inner (d) Inch 1.5748
5. Outer (D) Inch 3.1496
6. Width (B) Inch 2.2165
7. Outside diameter (D SP) mm 80,00
8. Width (b) mm 42,90
9. Locking collar total width (B 1) mm 56,50

Suffix description

1. XL X-Life
2. KRR Lip Seals On Both Sides (R Type Seal - Has A Zinc Plated Inner And Outer Cover. Between The Covers There Is An NBR Seal Lip Running On A Ground Shoulder)
3. B Bearing With Spherical Outer Ring

Technical details

1. Availability 222 pcs
2. Brand INA
3. Item number GE40-XL-KRR-B INA
4. Also known as 0008049670000
   GE40-KRR-B
   YEL208
   YEL208-2F

5. EAN 4012802783681
6. Category Bearings for Housings

Weight and Dimensions

1. Weight (kg) 0.697

Product Properties

1. Seal 2F - Standard Seal for Y-bearings
2. Lubrication Standard Lubrication
3. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 19800
2. Radial Dynamic Load Rating Cr (N) 34500
3. Basic static load rating, radial (C 0r) "19800.0000"
4. ECLASS number 23-05-08-02
5. ECLASS2 number 23-05-08-02
6. Medias description Radial insert ball bearing GE..-XL-KRR-B

Downloads and links

1. X-life brochure X-life brochure
2. Link to manufacturer Link to manufacturer
