GE35-XL-KTT-B INA

All dimensions

1. Inner (d) MM 35
2. Outer (D) MM 72
3. Width (B) MM 51,3
4. Inner (d) Inch 1.378
5. Outer (D) Inch 2.8346
6. Width (B) Inch 2.0197
7. Outside diameter (D SP) mm 72
8. Width (b) mm 37,7
9. Locking collar total width (B 1) mm 51,3

Suffix description

1. XL X-Life
2. KTT Triple Lip Seals On Both Sides Of The Bearing (T Type Seal)
3. B Bearing With Spherical Outer Ring
4. >A Alteration In Internal Construction. Identical To Old Notation

Technical details

1. Availability 2 pcs
2. Brand INA
3. Item number GE35-XL-KTT-B INA
4. Also known as 0008515660000
   GE35KPPB3

5. EAN 4012802800197
6. Category Bearings for Housings

Weight and Dimensions

1. Weight (kg) 0.56

Product Properties

1. Seal 2T - Two T-seals
2. Lubrication Standard Lubrication
3. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 15300
2. Radial Dynamic Load Rating Cr (N) 27500
3. ECLASS number 23-05-08-02
4. ECLASS2 number 23-05-08-02

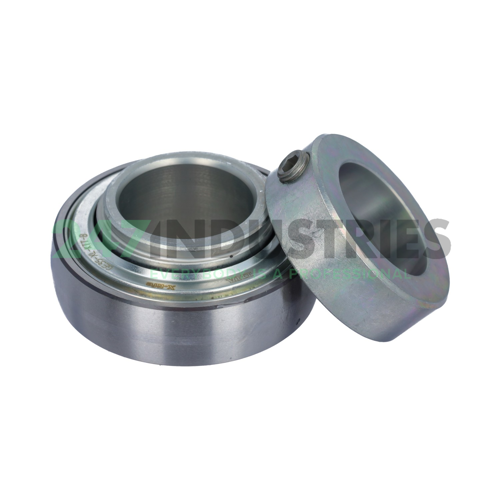

5. Medias description Radial insert ball bearings GE..-KTT-B, spherical outer ring, location by eccentric locking collar, T seals on both sides

Downloads and links

1. X-life brochure X-life brochure
2. Link to manufacturer Link to manufacturer
