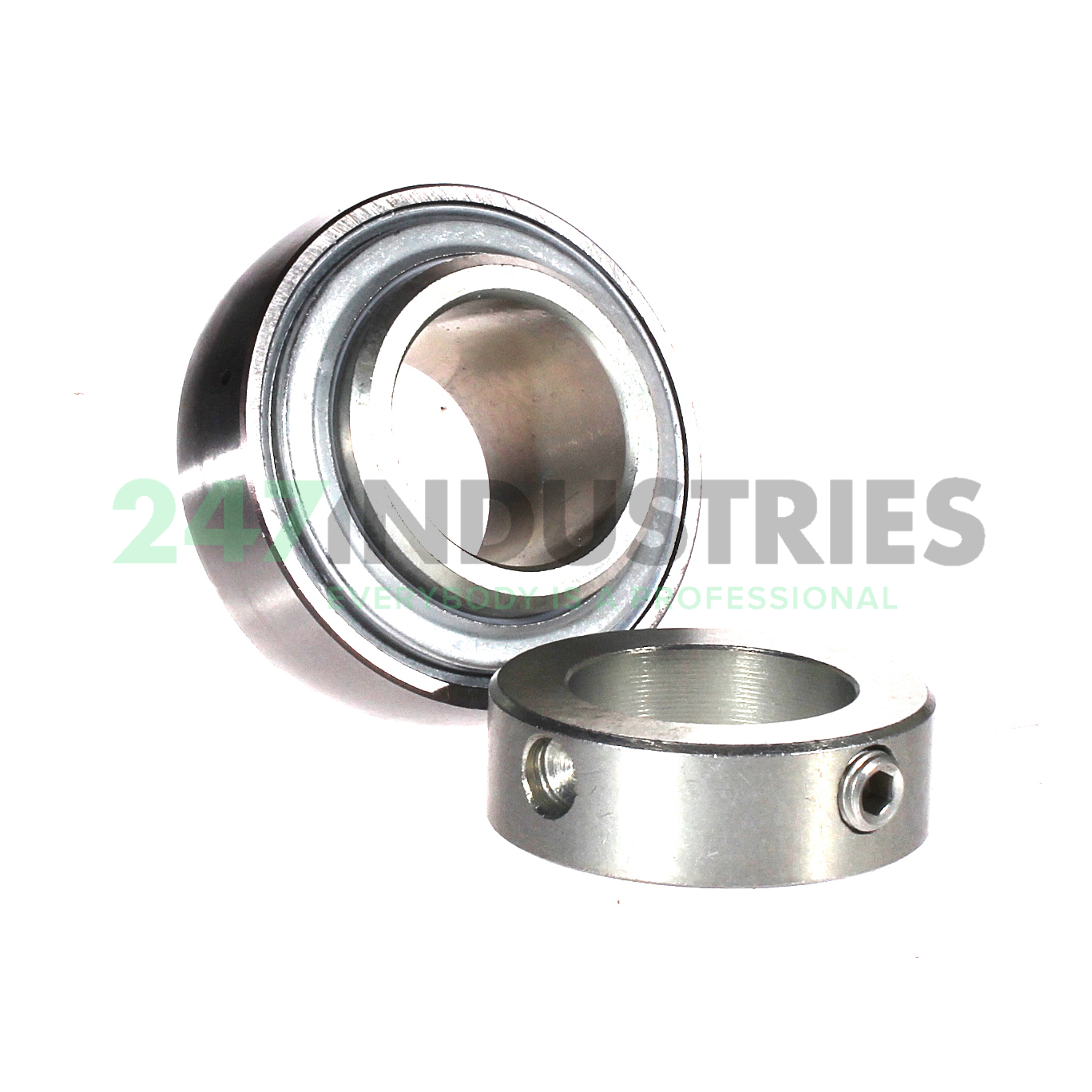

GE35-XL-KRR-B-FA164 INA

All dimensions

1. Inner (d) MM 35
2. Outer (D) MM 72
3. Width (B) MM 51,3
4. Inner (d) Inch 1.378
5. Outer (D) Inch 2.8346
6. Width (B) Inch 2.0197
7. Outside diameter (D SP) mm 72
8. Width (b) mm 37,7
9. Locking collar total width (B 1) mm 51,3

Suffix description

1. XL X-Life
2. KRR Lip Seals On Both Sides (R Type Seal - Has A Zinc Plated Inner And Outer Cover. Between The Covers There Is An NBR Seal Lip Running On A Ground Shoulder)
3. B Bearing With Spherical Outer Ring
4. FA164 High Temperature Design Up To +250°C

Technical details

1. Availability 22 pcs
2. Brand INA
3. Item number GE35-XL-KRR-B-FA164 INA
4. Also known as 0009510720000
   GE35-KRR-B-FA164

5. EAN 4012802823905
6. Category Bearings for Housings

Weight and Dimensions

1. Weight (kg) 0.525

Product Properties

1. Seal 2F - Standard Seal for Y-bearings
2. Lubrication Standard Lubrication
3. Special Treatment E - High Temp Design Up to +250°C

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 15300
2. Radial Dynamic Load Rating Cr (N) 27500
3. ECLASS number 23-05-08-02
4. ECLASS2 number 23-05-08-02
5. Medias description Radial insert ball bearings GE..-KRR-B-FA164, spherical outer ring, location by eccentric locking collar, R seals on both sides, for temperatures up to +250°C
