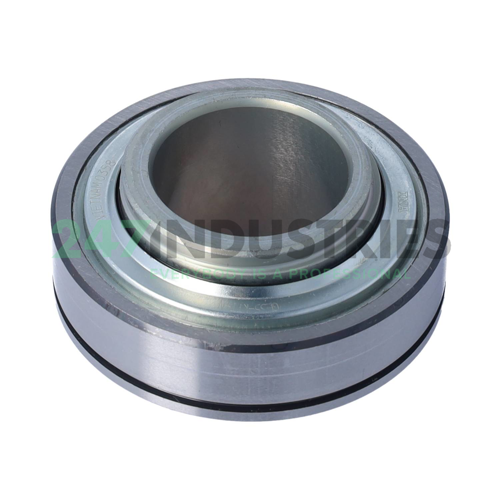

GE35-KTT-N-OSE INA

All dimensions

1. Inner (d) MM 35
2. Outer (D) MM 72
3. Width (B) MM 37,7
4. Inner (d) Inch 1.378
5. Outer (D) Inch 2.8346
6. Width (B) Inch 1.4843
7. Width (b) mm 37,7

Suffix description

1. KTT Triple Lip Seals On Both Sides Of The Bearing (T Type Seal)
2. N Cast Iron Housing With Undercut Slot For End Caps
3. OSE Bearing Without Locking Element (Eccentric Locking Collar)

Technical details

1. Availability 4 pcs
2. Brand INA
3. Item number GE35-KTT-N-OSE INA
4. Also known as 0004066350000

5. EAN 4012802786545
6. Category Bearings for Housings

Weight and Dimensions

1. Weight (kg) 0.42

Product Properties

1. Seal 2T - Two T-seals
2. Lubrication Standard Lubrication
3. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 15300
2. Radial Dynamic Load Rating Cr (N) 25500
3. ECLASS number 23-05-08-02
4. ECLASS2 number 23-05-08-02

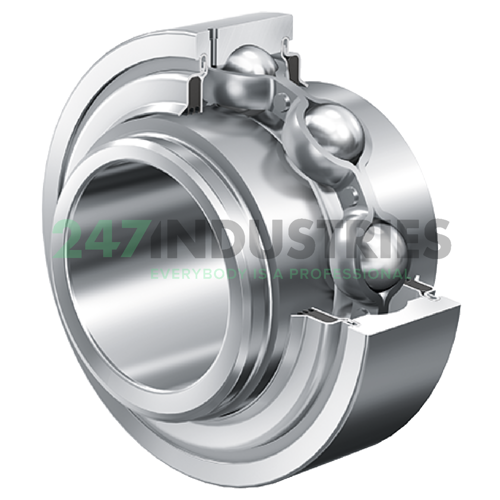

5. Medias description Radial insert ball bearing GE..-KTT-N-OSE
