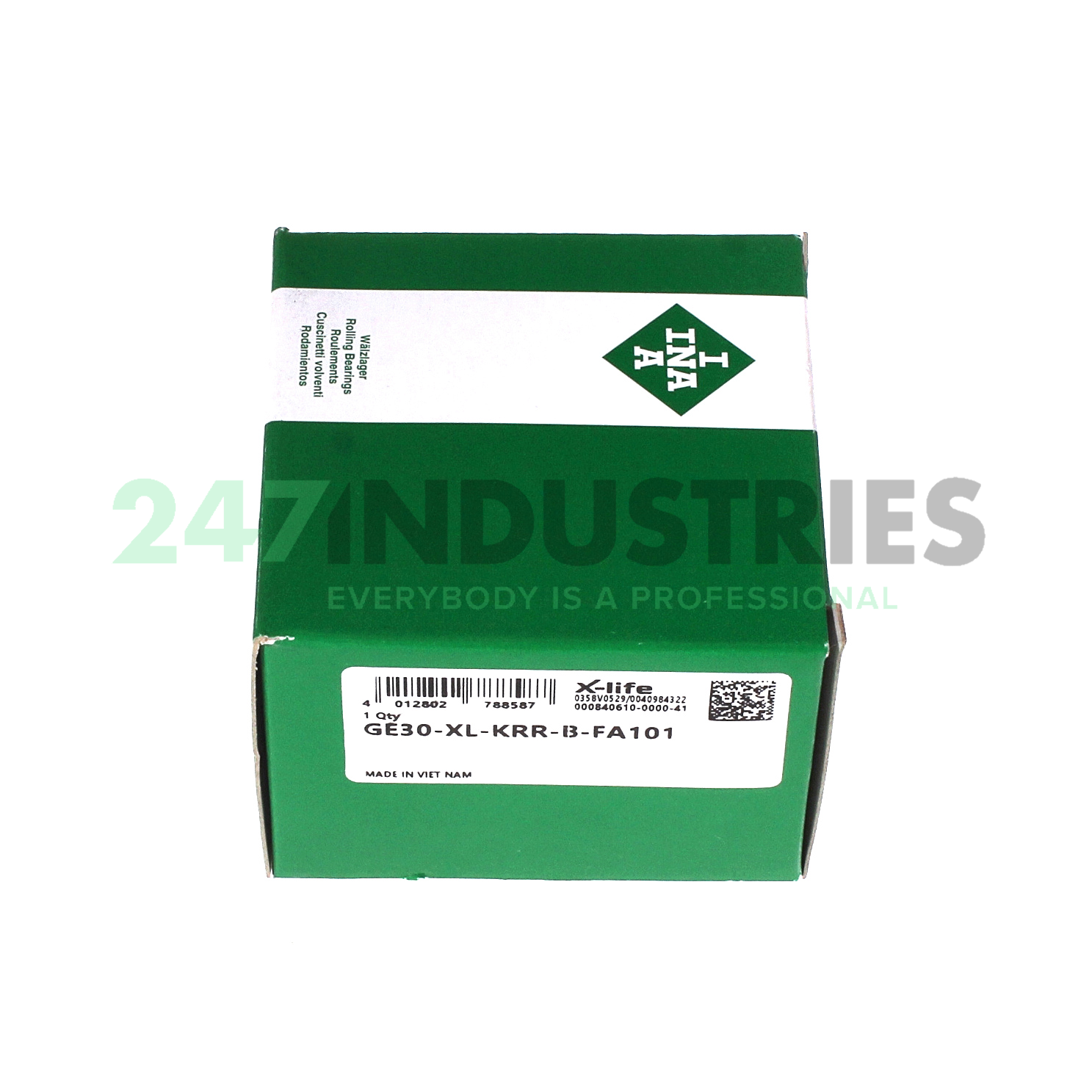

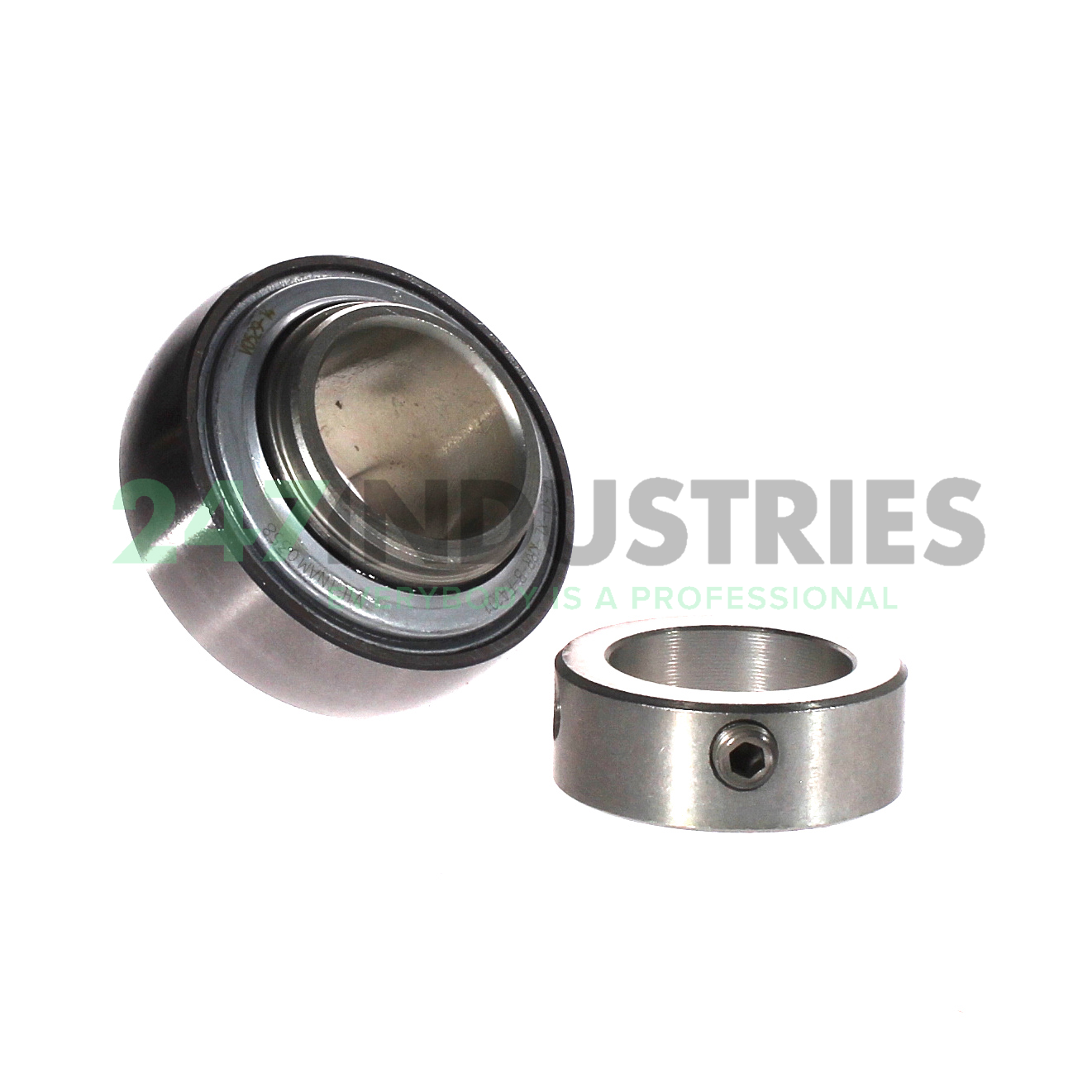

GE30-XL-KRR-B-FA101 INA

All dimensions

1. Inner (d) MM 30,00
2. Outer (D) MM 62,00
3. Width (B) MM 48,50
4. Inner (d) Inch 1.1811
5. Outer (D) Inch 2.4409
6. Width (B) Inch 1.9094
7. Outside diameter (D SP) mm 62,00
8. Width (b) mm 36,50
9. Locking collar total width (B 1) mm 48,50

Suffix description

1. XL X-Life
2. KRR Lip Seals On Both Sides (R Type Seal - Has A Zinc Plated Inner And Outer Cover. Between The Covers There Is An NBR Seal Lip Running On A Ground Shoulder)
3. B Bearing With Spherical Outer Ring
4. FA101 High And Low Temperature Design -40 ~ 180℃

Technical details

1. Availability 43 pcs
2. Brand INA
3. Item number GE30-XL-KRR-B-FA101 INA
4. Also known as 0008406100000
   GE30-KRR-B-FA101

5. EAN 4012802788587
6. Category Bearings for Housings

Weight and Dimensions

1. Weight (kg) 0.38

Product Properties

1. Seal 2F - Standard Seal for Y-bearings
2. Lubrication Standard Lubrication
3. Special Treatment G - High/Low Tem Design -40/+180°C

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 11300
2. Radial Dynamic Load Rating Cr (N) 20700
3. Basic static load rating, radial (C 0r) "11300.0000"
4. ECLASS number 23-05-08-02
5. ECLASS2 number 23-05-08-02

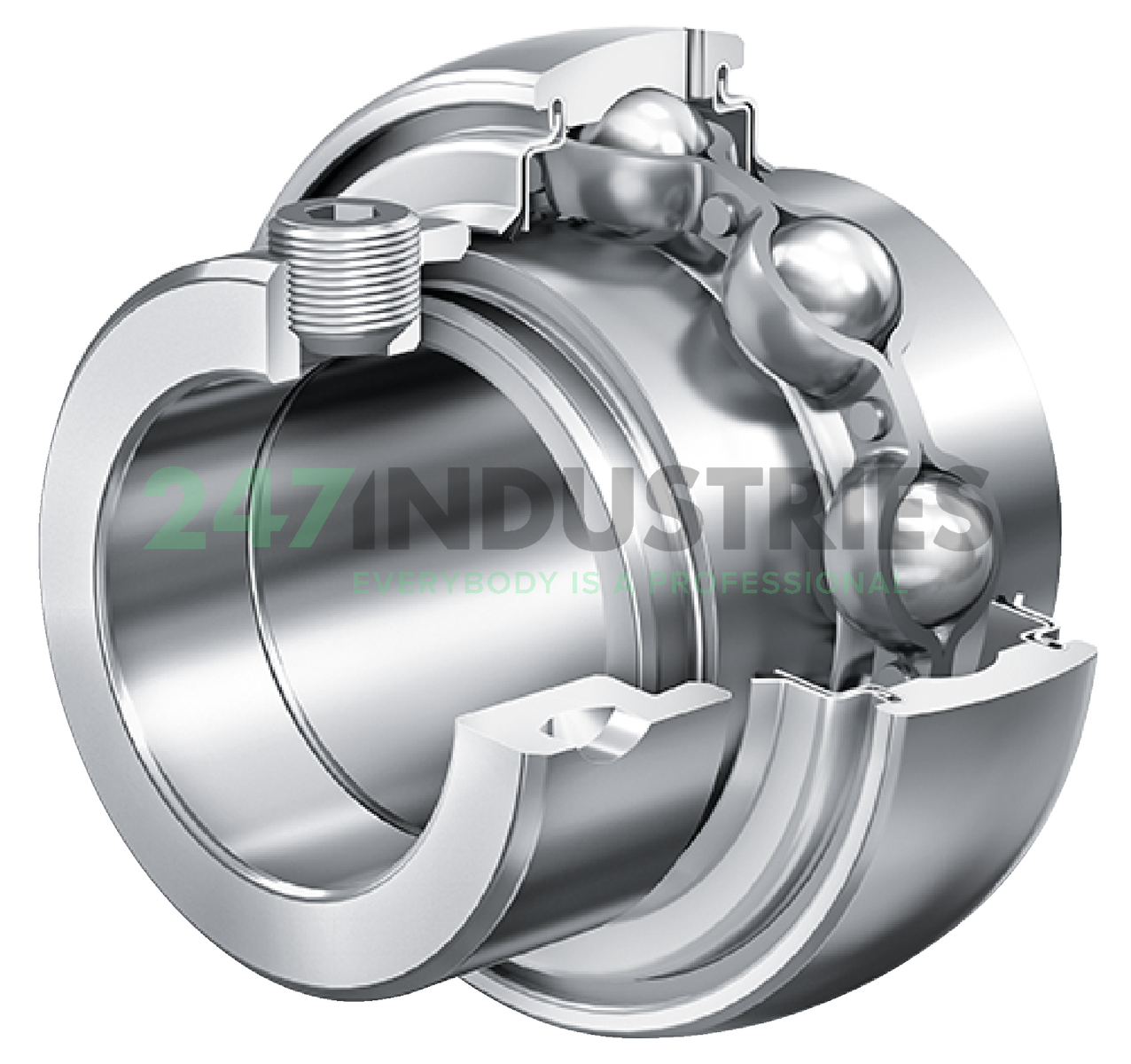

6. Medias description Radial insert ball bearing GE..-XL-KRR-B-FA101
