GE30-XL-KLL-B INA

All dimensions

1. Inner (d) MM 30
2. Outer (D) MM 62
3. Width (B) MM 48,5
4. Inner (d) Inch 1.1811
5. Outer (D) Inch 2.4409
6. Width (B) Inch 1.9094
7. Outside diameter (D SP) mm 62
8. Width (b) mm 36,5
9. Locking collar total width (B 1) mm 48,5

Suffix description

1. XL X-Life
2. K Conrad (Non-Filling Slot) Type
3. LL Labyrinth Seals On Both Sides (L Type Seal - All Parts Of The L Type Seal Are Zinc Plated On All Sides In Order To Improve Corrosion Protection - No Seal Friction)
4. B Bearing With Spherical Outer Ring

Technical details

1. Availability 239 pcs
2. Brand INA
3. Item number GE30-XL-KLL-B INA
4. Also known as 0008519650000
   GE30-KLL-B

5. EAN 4012802800036
6. Category Bearings for Housings

Weight and Dimensions

1. Weight (kg) 0.39

Product Properties

1. Seal 2RU - Two Seals / Non Contact Type
2. Lubrication Standard Lubrication
3. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 11300
2. Radial Dynamic Load Rating Cr (N) 20700
3. ECLASS number 23-05-08-02
4. ECLASS2 number 23-05-08-02

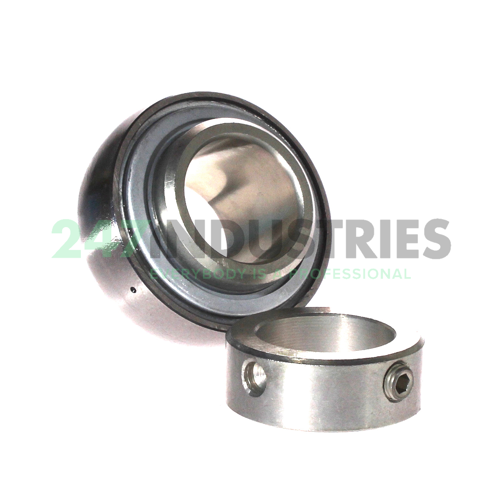

5. Medias description Radial insert ball bearings GE..-KLL-B, spherical outer ring, location by eccentric locking collar, L seals on both sides

Downloads and links

1. X-life brochure X-life brochure
2. Link to manufacturer Link to manufacturer
