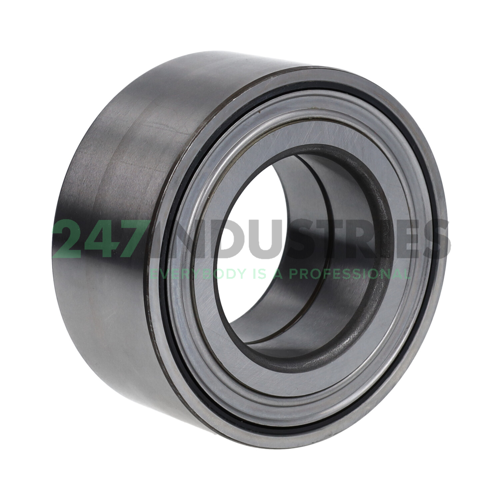

GB40246.S07 SNR

All dimensions

1. Inner (d) MM 44
2. Outer (D) MM 82,5
3. Width (B) MM 37
4. Inner (d) Inch 1.7323
5. Outer (D) Inch 3.248
6. Width (B) Inch 1.4567

Suffix description

1. S07 Variant Design

Technical details

1. Availability 10 pcs
2. Brand SNR
3. Item number GB40246.S07 SNR
4. Category Angular Contact Ball Bearing Double Row

Weight and Dimensions

1. Weight (kg) 0.799

Product Properties

1. Bore C - Cylindrical Bore
2. Seal ZZ/2Z - Steel Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Split Inner ring / Outer ring Split inner ring
