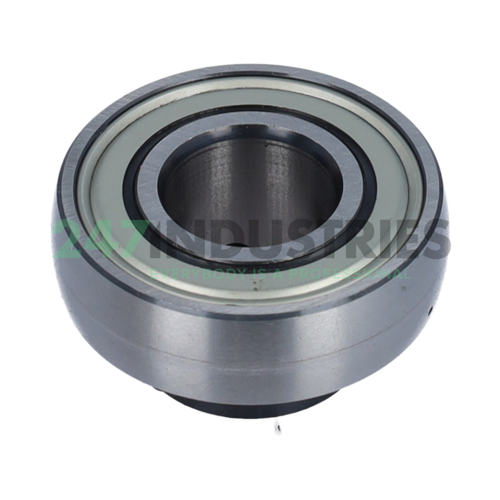

GAY20-NPP-B-FA107 INA

All dimensions

1. Inner (d) MM 20
2. Outer (D) MM 47
3. Width (B) MM 25
4. Inner (d) Inch 0.7874
5. Outer (D) Inch 1.8504
6. Width (B) Inch 0.9843
7. Outside diameter (D SP) mm 47
8. Width (b) mm 25

Suffix description

1. NPP Lip Seals On Both Sides (P Type - Two Zinc-Plated Sheet Steel Washers With Intermediate NBR Part, Seal Lip Axially Preloaded)
2. FA107 Bearing With Lubrication Holes On The Locating Side

Technical details

1. Availability 2 pcs
2. Brand INA
3. Item number GAY20-NPP-B-FA107 INA
4. Also known as 0004902700000

5. EAN 4012802784787
6. Category Bearings for Housings

Weight and Dimensions

1. Weight (kg) 0.13

Product Properties

1. Seal 2RS - Rubber Seal on Two Sides
2. Lubrication Standard Lubrication
3. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 6600
2. Radial Dynamic Load Rating Cr (N) 13600
3. ECLASS number 23-05-08-02
4. ECLASS2 number 23-05-08-02
5. Medias description Radial insert ball bearing GAY..-NPP-B
