GAR60-UK-2RS-A INA

Rod end

Stock
10 pcs in stock and ready for shipment
Brand INA
Article number GAR60-UK-2RS-A INA
Inside diameter 60,00mm
Outside diameter 135,00mm
Width 44,00mm
Product description

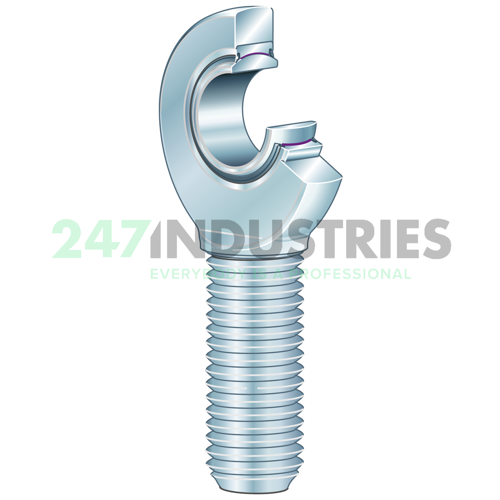

The GAR60-UK-2RS-A INA is a rod end. Rod ends consist of a housing with integral shank and a spherical plain bearing. This plain bearing is composed of an inner and outer ring without rolling elements. Rod ends are often mounted on the end of hydraulic or pneumatic cylinders. They are also used to connect two shafts. Rod ends can accommodate misalignment, and they support radial forces in a tensile or compressive direction.

The GAR60-UK-2RS-A INA has a spherical plain bearing with a steel-on-PTFE sliding contact, making it maintenance-free. PTFE is a special plastic. During the run-in period of these plain bearings, particles of PTFE are deposited on the opposite running surface. They fill in the small irregularities of the inner ring surface, creating a smooth surface. As a result, the components fit each other perfectly.

Read more Show less
Help with this product

Downloads and links

Similar to: GAR60-UK-2RS-A INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 60,00
  2. Outer (D) MM 135,00
  3. Width (B) MM 44,00
  4. Inner (d) Inch 2.3622
  5. Outer (D) Inch 5.3150
  6. Width (B) Inch 1.7323
  7. Outside diameter bearing (D) mm 90,00
  8. Outer eye diameter (d 2) mm 135,00
  9. Width inner ring (B) mm 44,00
  10. Total length external thread rod (l 2) mm 277,50

Suffix description

  1. UK Sliding Contact Surface Hard Chromium/PTFE Composite
  2. 2RS Lip Seals On Both Sides
  3. A The Significance Of This Sign Is Not Determined Separately. They Are In Need For Appointment Of Special Features Of The Construction Of Internal Form External Uses. In General, The Use These Only Temporarily, During A Transitional Time To Avoid Confusion. In Some Cases, They Also For Permanent Appointment Of Bearings And Parts Of The Same Type And Size, But With A Differ Interior Design. (Source: Ina-Catalogue No. 307)

Technical details

  1. Availability 10 pcs
  2. Brand INA
  3. Item number GAR60-UK-2RS-A INA
  4. Also known as 0066459250000
    SAA60TXE-2RS
  5. EAN 4012802528961
  6. Category Rod End

Weight and Dimensions

  1. Weight (kg) 6.12

Product Properties

  1. Seal 2RS - Rubber Seal on Two Sides
  2. Contact Material Steel on PTFE

Data from Schaeffler (medias)

  1. Radial Static Load Rating C0r (N) 485000
  2. Radial Dynamic Load Rating Cr (N) 691000
  3. Basic static load rating, radial (C 0r) "485000.0000"
  4. ECLASS number 23-05-01-05
  5. ECLASS2 number 23-05-01-05
  6. Medias description Rod end with external thread, right hand thread, maintenance-free, sliding layer: ELGOGLIDE DIN ISO 12240-4, dimension series E, type M, inner ring curved surface with hard chromium coating, sealed
