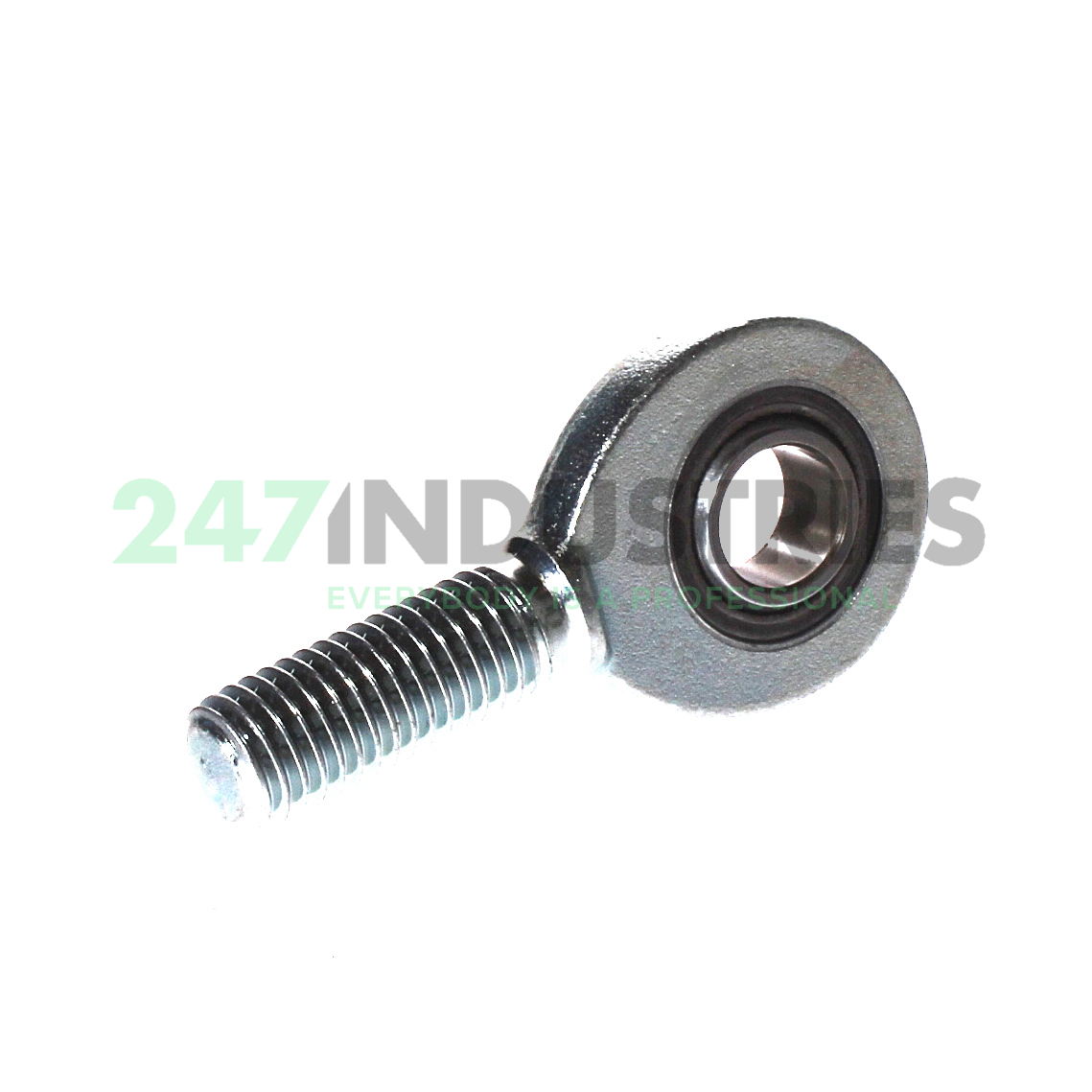

GAR12-UK INA

Rod end

Stock
73 pcs in stock and ready for shipment
Brand INA
Article number GAR12-UK INA
Inside diameter 12mm
Outside diameter 34mm
Width 10mm
Product description

The GAR12-UK INA is a rod end. Rod ends consist of a housing with integral shank and a spherical plain bearing. This plain bearing is composed of an inner and outer ring without rolling elements. Rod ends are often mounted on the end of hydraulic or pneumatic cylinders. They are also used to connect two shafts. Rod ends can accommodate misalignment, and they support radial forces in a tensile or compressive direction.

The GAR12-UK INA has a spherical plain bearing with a steel-on-PTFE sliding contact, making it maintenance-free. PTFE is a special plastic. During the run-in period of these plain bearings, particles of PTFE are deposited on the opposite running surface. They fill in the small irregularities of the inner ring surface, creating a smooth surface. As a result, the components fit each other perfectly.

Read more Show less
Help with this product

Downloads and links

Similar to: GAR12-UK INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 12
  2. Outer (D) MM 34
  3. Width (B) MM 10
  4. Inner (d) Inch 0.4724
  5. Outer (D) Inch 1.3386
  6. Width (B) Inch 0.3937
  7. Outside diameter bearing (D) mm 22
  8. Outer eye diameter (d 2) mm 34
  9. Width inner ring (B) mm 10
  10. Total length external thread rod (l 2) mm 71

Suffix description

  1. UK Sliding Contact Surface Hard Chromium/PTFE Composite

Technical details

  1. Availability 73 pcs
  2. Brand INA
  3. Item number GAR12-UK INA
  4. Also known as 0066339780000
    SA12C
    TFE12MKB
  5. EAN 4012802524901
  6. Category Rod End

Weight and Dimensions

  1. Weight (kg) 0.079

Product Properties

  1. Seal No Seal
  2. Contact Material Steel on PTFE

Data from Schaeffler (medias)

  1. Radial Static Load Rating C0r (N) 30200
  2. Radial Dynamic Load Rating Cr (N) 11300
  3. Basic static load rating, radial (C 0r) "30200.0000"
  4. ECLASS number 23-05-01-05
  5. ECLASS2 number 23-05-01-05
  6. Medias description Rod end with external thread, right hand thread maintenance-free, sliding layer: PTFE composite, DIN ISO 12240-4, dimension series E, type M, inner ring curved surface with hard chromium coating, open design
