GAKL6-PB-A INA

Rod end

Stock
13 pcs in stock and ready for shipment
Brand INA
Article number GAKL6-PB-A INA
Inside diameter 6,00mm
Outside diameter 21,00mm
Width 9,00mm
Product description

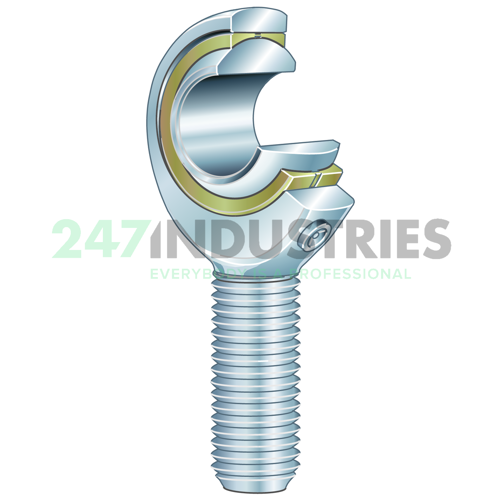

The GAKL6-PB-A INA is a rod end. Rod ends consist of a housing with integral shank and a spherical plain bearing. This plain bearing is composed of an inner and outer ring without rolling elements. Rod ends are often mounted on the end of hydraulic or pneumatic cylinders. They are also used to connect two shafts. Rod ends can accommodate misalignment, and they support radial forces in a tensile or compressive direction.

The GAKL6-PB-A INA has a spherical plain bearing with a steel-on-bronze sliding contact. The steel inner ring contacts the bronze surface of the outer ring. The steel-on-bronze sliding contact makes this bearing highly wear-resistant, providing low friction. However, the load capacity is slightly lower compared to spherical plain bearings with steel-on-steel sliding contacts. This bearing needs regular maintenance. Proper lubrication is required to reduce friction and prevent fouling and corrosion.

Read more Show less
Help with this product

Downloads and links

Similar to: GAKL6-PB-A INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 6,00
  2. Outer (D) MM 21,00
  3. Width (B) MM 9,00
  4. Inner (d) Inch 0.2362
  5. Outer (D) Inch 0.8268
  6. Width (B) Inch 0.3543
  7. Outside diameter bearing (D) mm 16,00
  8. Width inner ring (B) mm 9,00

Suffix description

  1. PB Segment Contact Mat., Code S/B)=Sliding Contact Surface Is Steel/Bronze
  2. A The Significance Of This Sign Is Not Determined Separately. They Are In Need For Appointment Of Special Features Of The Construction Of Internal Form External Uses. In General, The Use These Only Temporarily, During A Transitional Time To Avoid Confusion. In Some Cases, They Also For Permanent Appointment Of Bearings And Parts Of The Same Type And Size, But With A Differ Interior Design. (Source: Ina-Catalogue No. 307)

Technical details

  1. Availability 13 pcs
  2. Brand INA
  3. Item number GAKL6-PB-A INA
  4. Also known as 0066334390000

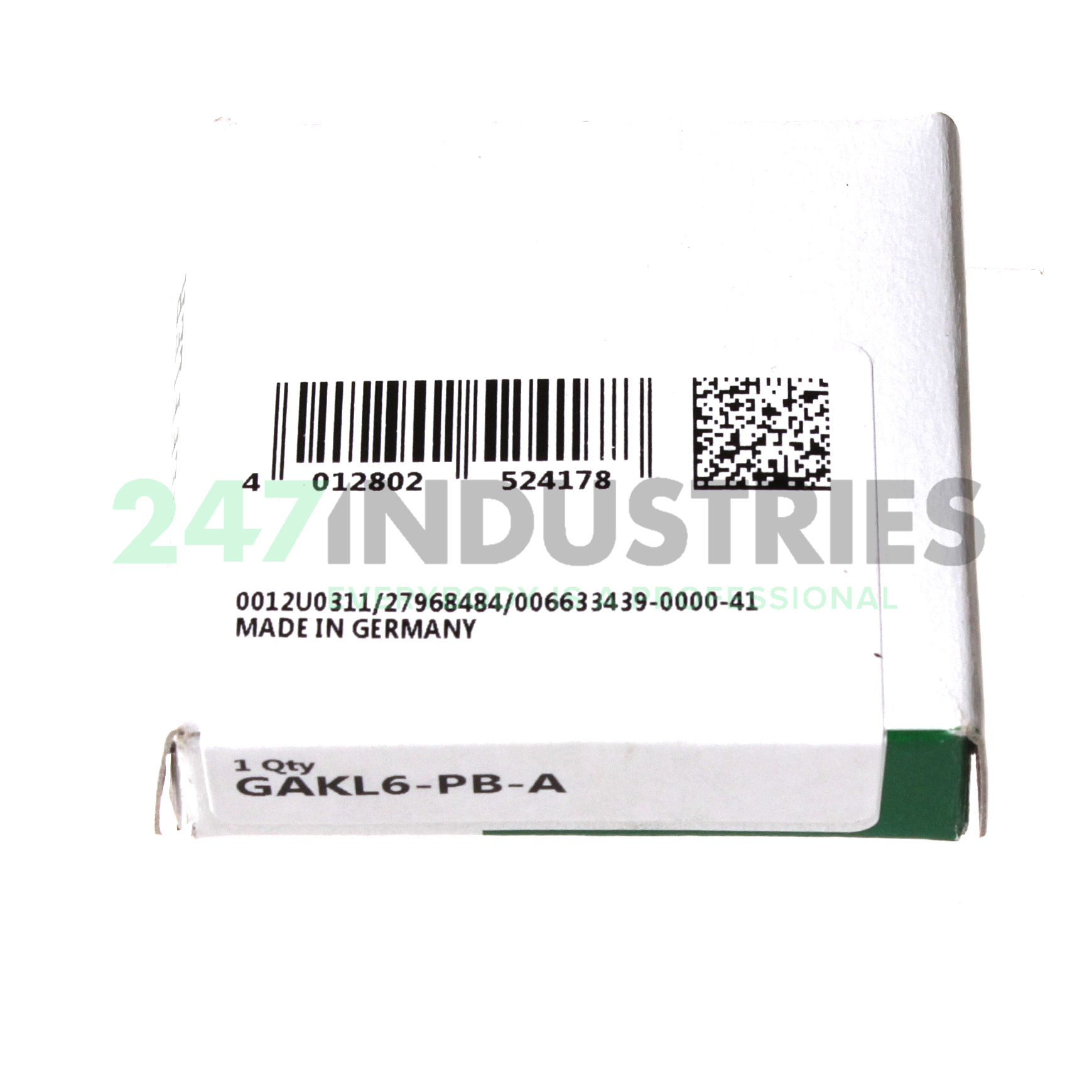

  5. EAN 4012802524178
  6. Category Rod End

Weight and Dimensions

  1. Weight (kg) 0.02

Product Properties

  1. Seal No Seal
  2. Contact Material Steel on Bronze

Data from Schaeffler (medias)

  1. Radial Static Load Rating C0r (N) 6930
  2. Radial Dynamic Load Rating Cr (N) 4320
  3. Basic static load rating, radial (C 0r) "6930.0000"
  4. ECLASS number 23-05-01-05
  5. ECLASS2 number 23-05-01-05
  6. Medias description Rod end with external thread, left hand thread, requiring maintenance, sliding contact surface: steel/bronze, DIN ISO 12240-4, dimension series K, type M, open design
