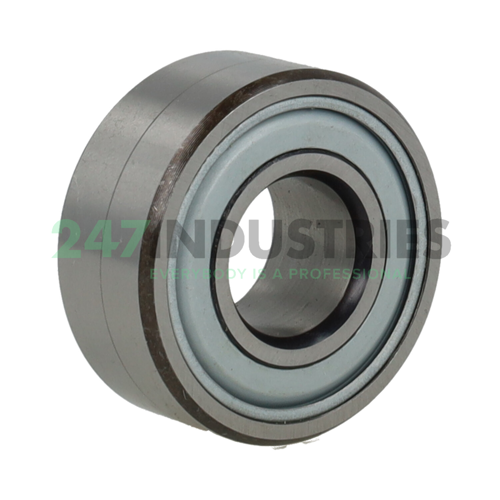

G3204-2Z INA

All dimensions

1. Inner (d) MM 20
2. Outer (D) MM 47
3. Width (B) MM 20,6
4. Inner (d) Inch 0.7874
5. Outer (D) Inch 1.8504
6. Width (B) Inch 0.811

Suffix description

1. 2Z Gap Seals At Both Sides Of The Bearing

Technical details

1. Availability 9 pcs
2. Brand INA
3. Item number G3204-2Z INA
4. Category Angular Contact Ball Bearing Double Row

Weight and Dimensions

1. Weight (kg) 0.18

Product Properties

1. Bore C - Cylindrical Bore
2. Seal ZZ/2Z - Steel Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Split Inner ring / Outer ring Standard
