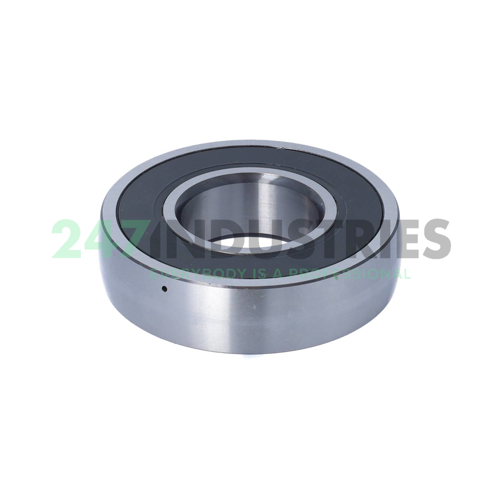

G309-XL-NPP-B INA

All dimensions

1. Inner (d) MM 45
2. Outer (D) MM 100
3. Width (B) MM 25
4. Inner (d) Inch 1.7717
5. Outer (D) Inch 3.937
6. Width (B) Inch 0.9843
7. Outside diameter (D SP) mm 100
8. Width (b) mm 25

Suffix description

1. XL X-Life
2. NPP Lip Seals On Both Sides (P Type - Two Zinc-Plated Sheet Steel Washers With Intermediate NBR Part, Seal Lip Axially Preloaded)
3. B Bearing With Spherical Outer Ring
4. FA106 Bearing Subjected To Special Noise Testing
5. L460 NSF-H1 Approval, Lubricants Registered As H1 Or Certified To ISO 21469 Are Considered Food Grade

Technical details

1. Availability 0 pcs
2. Brand INA
3. Item number G309-XL-NPP-B INA
4. Also known as 0009939480000
   G309-NPP-B

5. EAN 4012802816068
6. Category Bearings for Housings

Weight and Dimensions

1. Weight (kg) 0.74

Product Properties

1. Seal 2RS - Rubber Seal on Two Sides
2. Lubrication Standard Lubrication
3. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 27500
2. Radial Dynamic Load Rating Cr (N) 53000
3. ECLASS number 23-05-08-01
4. ECLASS2 number 23-05-08-01
5. Medias description Plummer block housing unit G3..-XL-NPP-B, RIBB sheet metal PB
