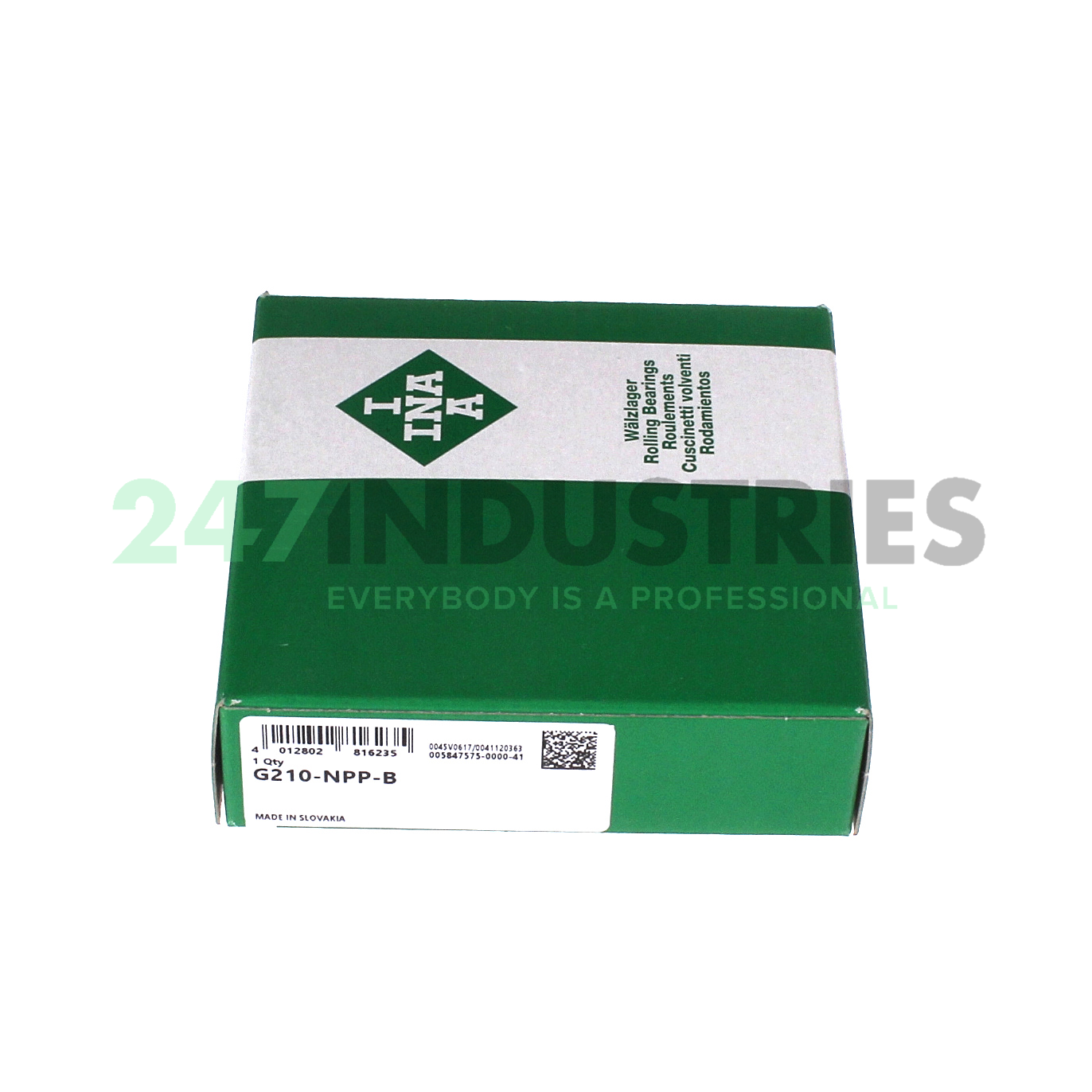

G210-NPP-B INA

All dimensions

1. Inner (d) MM 50
2. Outer (D) MM 90
3. Width (B) MM 20
4. Outside diameter (D SP) mm 90
5. Width (b) mm 20

Suffix description

1. NPP Lip Seals On Both Sides (P Type - Two Zinc-Plated Sheet Steel Washers With Intermediate NBR Part, Seal Lip Axially Preloaded)
2. B Bearing With Spherical Outer Ring
3. W Eccentric Locking Collar,
4. FA106 Bearing Subjected To Special Noise Testing

Technical details

1. Availability 40 pcs
2. Brand INA
3. Item number G210-NPP-B INA
4. Also known as 0058475750000

5. EAN 4012802816235
6. Category Bearings for Housings

Weight and Dimensions

1. Weight (kg) 0.429

Product Properties

1. Seal 2RS - Rubber Seal on Two Sides
2. Lubrication Standard Lubrication
3. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 23200
2. Radial Dynamic Load Rating Cr (N) 37500
3. ECLASS number 23-05-08-01
4. ECLASS2 number 23-05-08-01
5. Medias description Plummer block housing unit G2..-NPP-B, RIBB sheet metal PB
