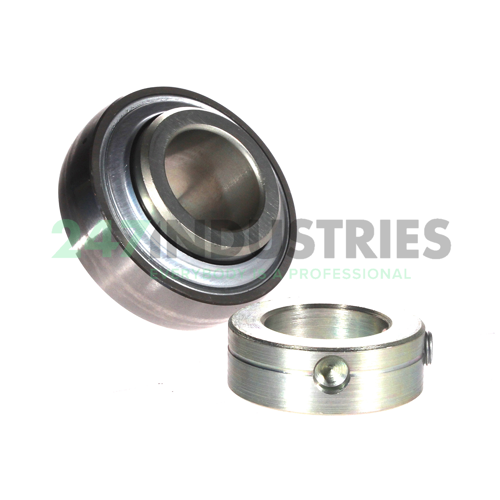

G1104-KRR-B-AS2/V INA

All dimensions

1. Inner (d) MM 31,75
2. Outer (D) MM 72
3. Width (B) MM 51,1
4. Inner (d) Inch 1.25
5. Outer (D) Inch 2.8346
6. Width (B) Inch 2.0118

Suffix description

1. KRR Lip Seals On Both Sides (R Type Seal - Has A Zinc Plated Inner And Outer Cover. Between The Covers There Is An NBR Seal Lip Running On A Ground Shoulder)
2. B Bearing With Spherical Outer Ring
3. AS2/V Bearing Outer Ring With Two Lubrication Holes In Offset Planes

Technical details

1. Availability 0 pcs
2. Brand INA
3. Item number G1104-KRR-B-AS2/V INA
4. Also known as 1035-1.1/4DEC
   1035-1.1/4DECG
   36207.104
   36207.104W
   G1104KRRBW
   YEL207-104-2F

5. Category Bearings for Housings

Weight and Dimensions

1. Weight (kg) 0.596

Product Properties

1. Seal 2F - Standard Seal for Y-bearings
2. Lubrication Standard Lubrication
3. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 15300
2. Radial Dynamic Load Rating Cr (N) 27500
3. ECLASS number 23-05-08-02
4. ECLASS2 number 23-05-08-02
5. Medias description Radial insert ball bearing G1..-KRR-B-AS2/V

Downloads and links

1. Link to manufacturer Link to manufacturer
