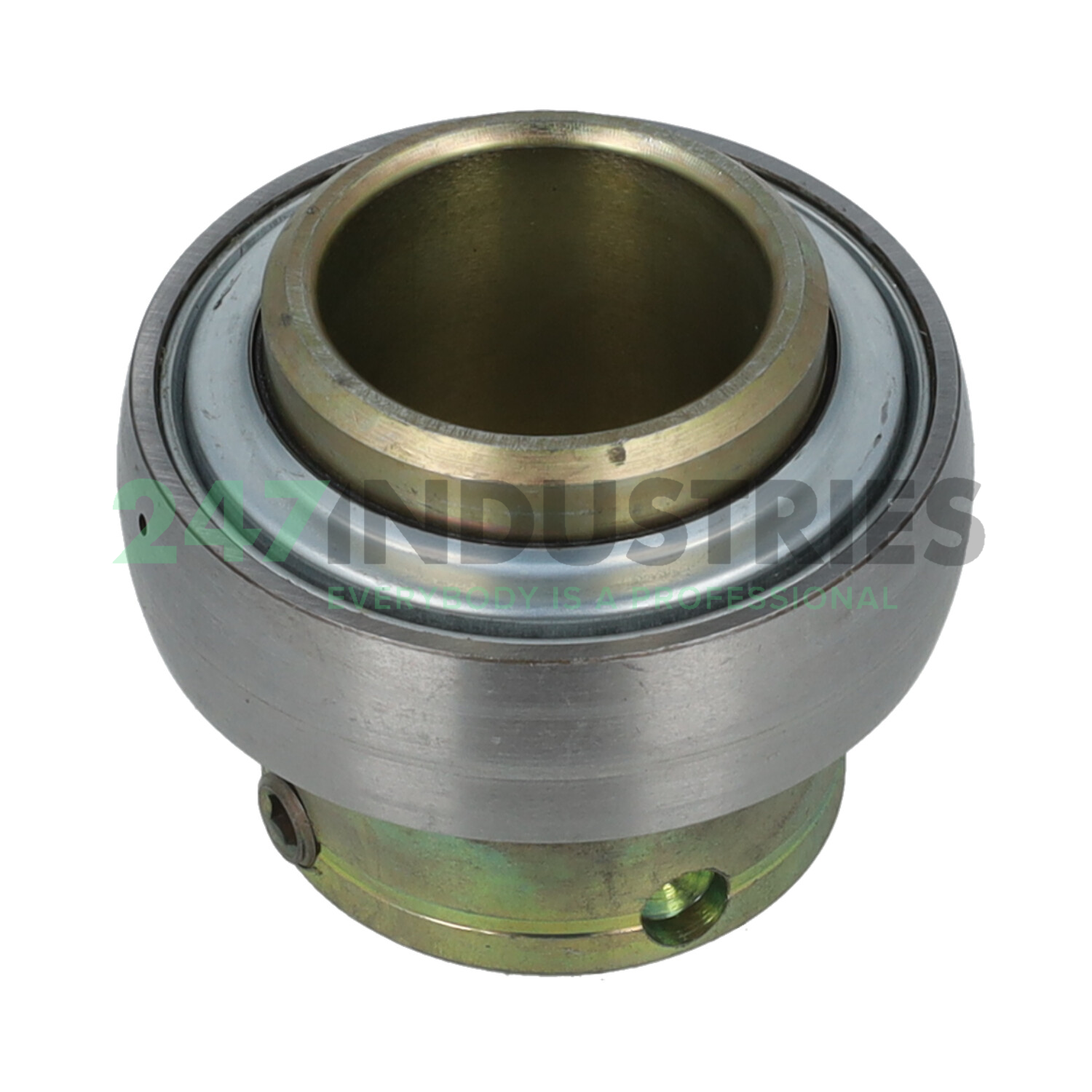

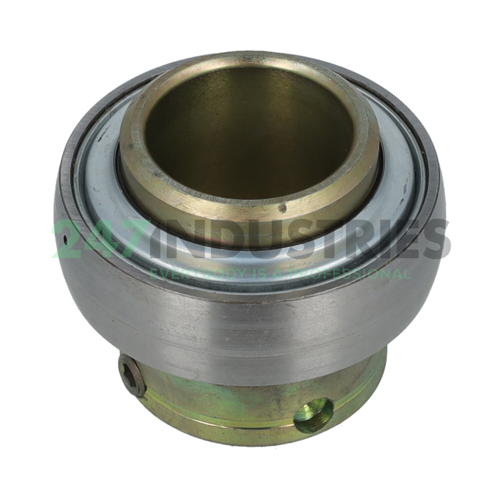

G1104-206KRRB-AS2/V INA

All dimensions

1. Inner (d) MM 31,75
2. Outer (D) MM 62
3. Width (B) MM 48,4
4. Inner (d) Inch 1.25
5. Outer (D) Inch 2.4409
6. Width (B) Inch 1.9055

Suffix description

1. KRR Lip Seals On Both Sides (R Type Seal - Has A Zinc Plated Inner And Outer Cover. Between The Covers There Is An NBR Seal Lip Running On A Ground Shoulder)
2. B Bearing With Spherical Outer Ring
3. AS2/V Bearing Outer Ring With Two Lubrication Holes In Offset Planes

Technical details

1. Availability 183 pcs
2. Brand INA
3. Item number G1104-206KRRB-AS2/V INA
4. Also known as YEL206-104
   YEL206-104-2F

5. Category Bearings for Housings

Weight and Dimensions

1. Weight (kg) 0.32

Product Properties

1. Seal 2F - Standard Seal for Y-bearings
2. Lubrication Standard Lubrication
3. Special Treatment No Special Treatment
