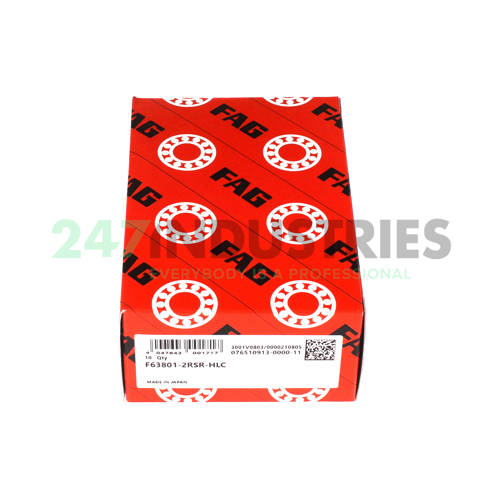

F63801-2RSR-HLC FAG

All dimensions

1. Inner (d) MM 12
2. Outer (D) MM 23
3. Width (B) MM 7
4. Inner (d) Inch 0.4724
5. Outer (D) Inch 0.9055
6. Width (B) Inch 0.2756

Suffix description

1. 2RSR Rubber Seals At Each Side Of The Bearing
2. HLC Factory Location Code, No Additional Meaning, Can Be Used As Standard

Technical details

1. Availability 4 pcs
2. Brand FAG
3. Item number F63801-2RSR-HLC FAG
4. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.006

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RS - Rubber Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification F - Flange
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. ECLASS number 23-05-08-01
2. ECLASS2 number 23-05-08-01

Downloads and links

1. Link to manufacturer Link to manufacturer
