F505-A-L FAG

Name: F505-A-L FAG
Brand: FAG

€ 72,47 ex VAT

€ 87,69 incl. VAT

€ 72,47 ex VAT

	10 similar products for F505-A-L FAG in stock
	Worldwide shipping from the Netherlands
	30 days return policy
	Track your order through Track & Trace

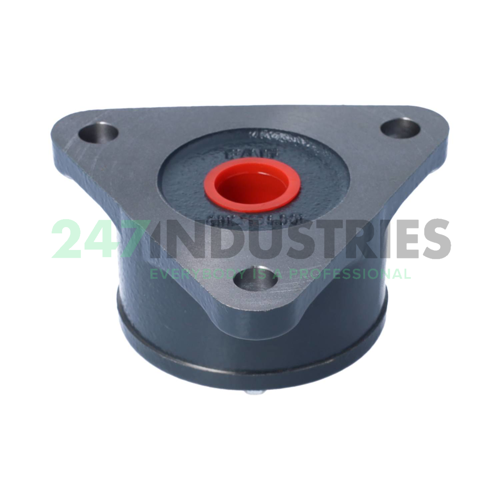

F505-A-L FAG

Housing

Stock	not in stock
Brand	FAG
Article number	F505-A-L FAG
Inside diameter	0,00mm
Outside diameter	110,00mm
Width	50,00mm

Product description

The F505-A-L FAG housing is a robust industrial solution for bearings with higher load ratings. The bearing is available separately. These housings simplify the installation of bearings and shafts, while also offering support and protection to the bearings. They improve maintenance efficiency and extend the bearing's lifespan. Consequently, the F505-A-L FAG housing provides enhanced convenience and reduced costs.

Email us at: help@247industries.com Response within 24h

Downloads and links

Link to manufacturer

Similar to: F505-A-L FAG

Loading similair products

Product specifications

Inside diameter 0,00mm
Outside diameter 110,00mm
Width 50,00mm

All dimensions

Inner (d) MM 0,00
Outer (D) MM 110,00
Width (B) MM 50,00
Inner (d) Inch 0.0000
Outer (D) Inch 4.3307
Width (B) Inch 1.9685
Shaft diameter (d 1) mm 20,00
Flange width (a) mm 110,00
Height flange (h 1) mm 100,00
Total width with cover (g 2) mm 50,00

Suffix description

A One End Closed
L Grey Cast Iron

Technical details

Availability 0 pcs
Brand FAG
Item number F505-A-L FAG
Also known as 0383828900000
EAN 4012801212977
Category Housing / Y-Housing

Weight and Dimensions

Weight (kg) 1.2

Data from Schaeffler (medias)

Number of fastening holes "3.0000"
ECLASS number 23-05-17-02
ECLASS2 number 23-05-17-02
Medias description Flanged housing for various bearing types, with conical bore and clamping sleeve, closed on one side
