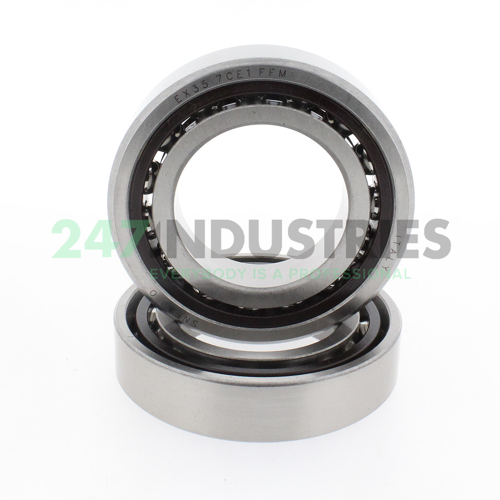

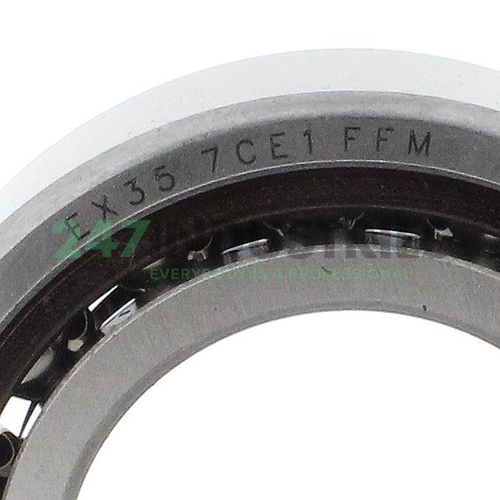

EX35 7 CE1 FFM SNFA

All dimensions

1. Inner (d) MM 35
2. Outer (D) MM 62
3. Width (B) MM 28
4. Inner (d) Inch 1.378
5. Outer (D) Inch 2.4409
6. Width (B) Inch 1.1024

Suffix description

1. 7 P4 (SKF)=Abec.7
2. C Phenolic Resin
3. E External Cage Location
4. 1 CD (SKF)=15° Contact Angle
5. FF (DF-SKF)-Two Bearings Arranged Face-To-Face ><
6. M Moderate Preload (For Symmetrical Sets Only)

Technical details

1. Availability 0 pcs
2. Brand SNFA
3. Item number EX35 7 CE1 FFM SNFA
4. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.3

Product Properties

1. Seal No Seal
2. Cage Type TB - Hard Fiber Cage
3. Precision P4 Precision (Higher than P5)
4. Contact Angle 15 degrees
5. Pairing DF - X-arrangement, 2
6. Axial Internal Clearance / Preload GB - Medium Preload
7. Lubrication Standard Lubrication
