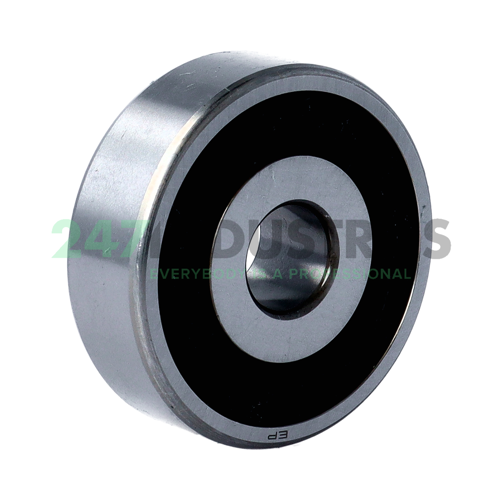

EP5-B17-127T1XDDGC01 MA7X5 NSK

All dimensions

1. Inner (d) MM 17
2. Outer (D) MM 62
3. Width (B) MM 20
4. Inner (d) Inch 0.6693
5. Outer (D) Inch 2.4409
6. Width (B) Inch 0.7874

Suffix description

1. T1X Polyamide Retainer
2. DD Rubber Seals At Each Side Of The Bearing
3. GC01 Unknown
4. MA7 Lubricant, Operating Temperature -40 ~ 150°C
5. X Automotive - 5 Pack With A Damp Proofing Course
6. 5 Standard Single Pack. Bearings In Polythene Bags Or Hizex Film Are Placed In Individual Cardboard Boxes. The Individual Boxes Are Then Placed In A Cardboard Outer Carton And Polystrene Filled

Technical details

1. Availability 0 pcs
2. Brand NSK
3. Item number EP5-B17-127T1XDDGC01 MA7X5 NSK
4. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.3

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RS - Rubber Seal on Two Sides
3. Cage Type P - Plastic Molded Cage
4. External Modification No External Modification
5. Radial Internal Play Special Internal Clearance
6. Precision Standard Precision
7. Lubrication 2 - High Temperature Grease
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
