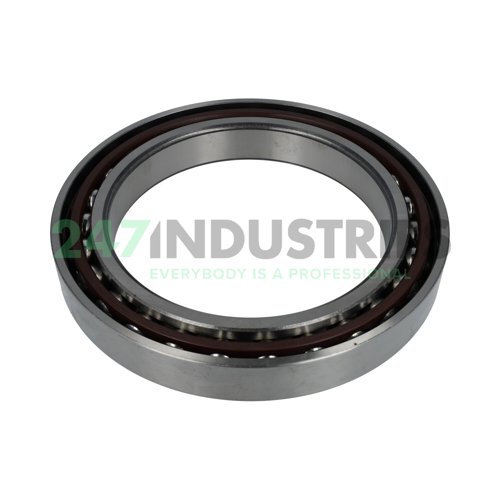

ENS71940 HV Q16 J84 SNR

All dimensions

1. Inner (d) MM 200,00
2. Outer (D) MM 280,00
3. Width (B) MM 114,00
4. Inner (d) Inch 7.8740
5. Outer (D) Inch 11.0236
6. Width (B) Inch 4.4882

Suffix description

1. H 25° Contact Angle
2. V Laminated Phenolic Cage Centered On Outer Ring
3. Q16 (TBT)-Triple Bearings, Association Of Paired Bearings, Identical Contact Angle
4. J84 Dimensional & Running Accuracy To Iso Tolerance Class 4 (More Accurate Than P5)-Abec7,
5. 8 Medium Preload

Technical details

1. Availability 3 pcs
2. Brand SNR
3. Item number ENS71940 HV Q16 J84 SNR
4. Also known as 71930ACD/P4ATBTA

5. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 18.3

Product Properties

1. Seal No Seal
2. Cage Type TB - Hard Fiber Cage
3. Precision P4 Precision (Higher than P5)
4. Contact Angle 25 degrees
5. Pairing TBT - O- and Tandem Arrangement, 3
6. Axial Internal Clearance / Preload GA - Light Preload
7. Lubrication Standard Lubrication
