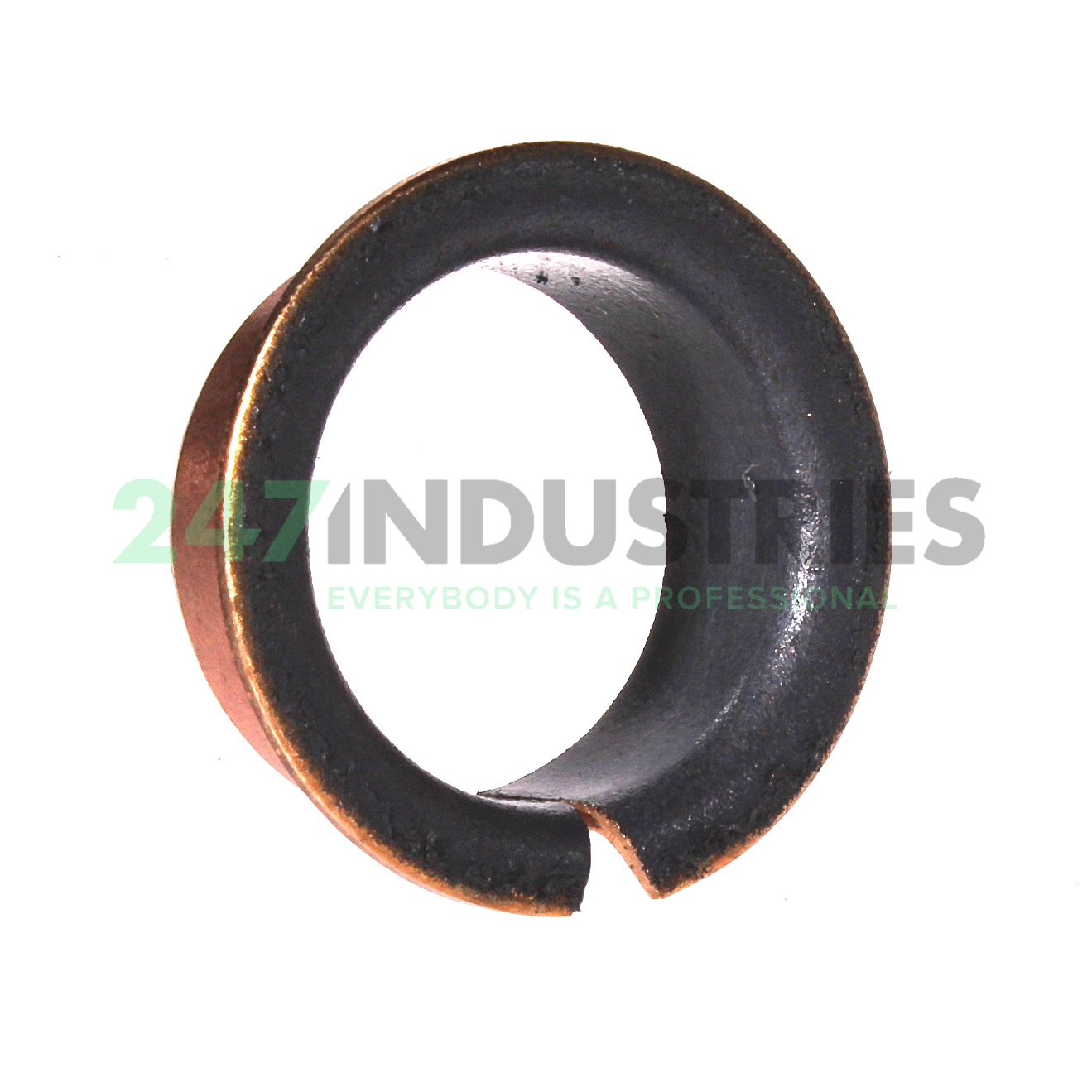

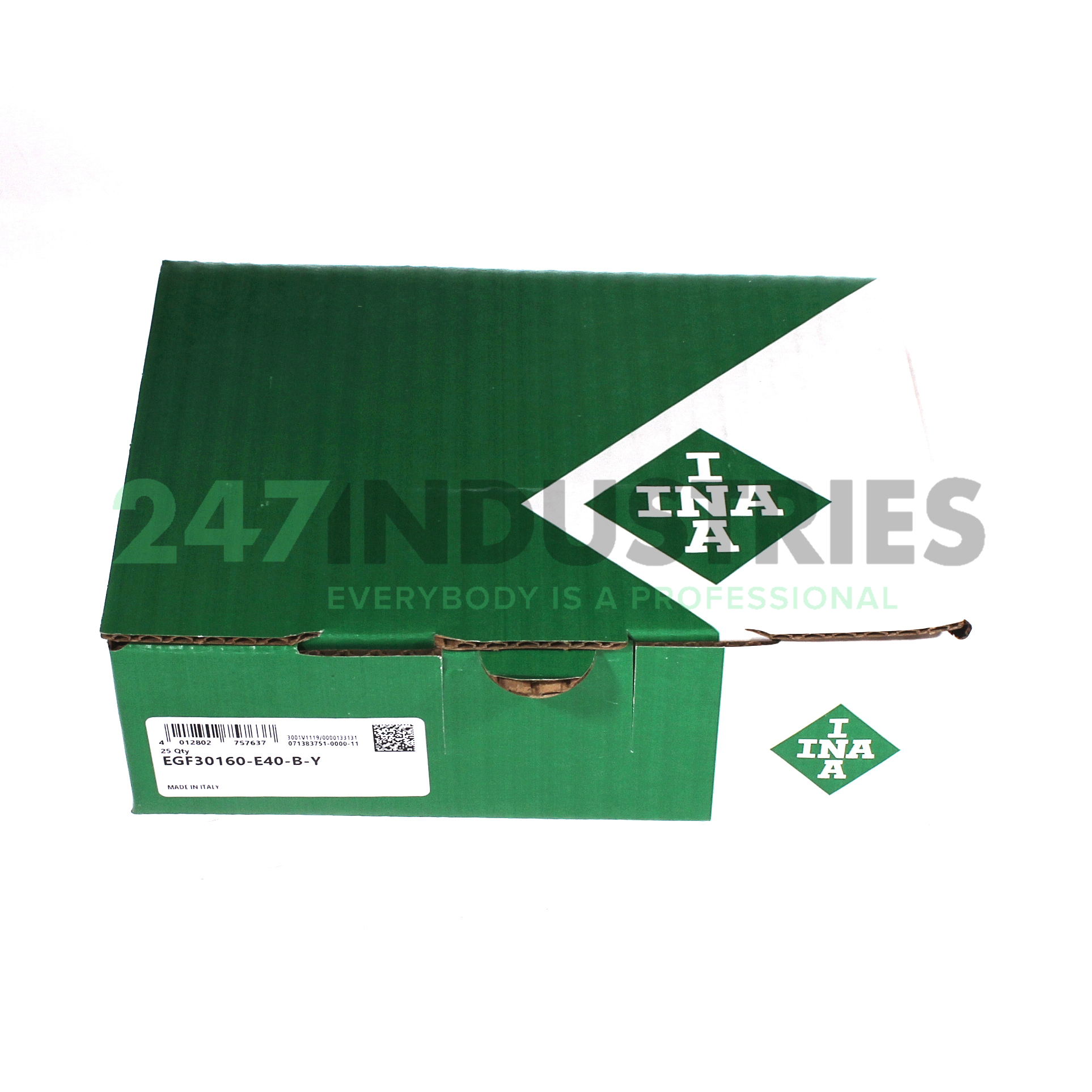

EGF30160-E40-B-Y INA

All dimensions

1. Inner (d) MM 30,00
2. Outer (D) MM 34,00
3. Width (B) MM 16,00
4. Inner (d) Inch 1.1811
5. Outer (D) Inch 1.3386
6. Width (B) Inch 0.6299
7. Outer diameter (D o) mm 34,00
8. Width (b) mm 16,00
9. Outside diameter of flange (D fl) mm 42,00

Suffix description

1. E40-B Maintenance Free, With Bronze Backing
2. Y Schaeffler Factory Code

Technical details

1. Availability 639 pcs
2. Brand INA
3. Item number EGF30160-E40-B-Y INA
4. Also known as 0713837510000
   PAF30160-P11

5. EAN 4012802757187
6. Category Bushing

Weight and Dimensions

1. Weight (kg) 0.0335

Data from Schaeffler (medias)

1. Basic dynamic load rating, axial (C a) "35200.0000"
2. Radial Static Load Rating C0r (N) 90000
3. Radial Dynamic Load Rating Cr (N) 50400
4. Axial Static Load Rating C0a (N) 62800
5. Basic static load rating, axial (C 0a) "62800.0000"
6. Basic static load rating, radial (C 0r) "90000.0000"
7. Axial Dynamic Load Rating Ca (N) 35200
8. ECLASS number 23-05-01-91
9. ECLASS2 number 23-05-01-91
10. Medias description Flanged bush, maintenance-free, ISO 3547, with bronze backing
