EGF12090-E40-Y INA

All dimensions

1. Inner (d) MM 12,00
2. Outer (D) MM 14,00
3. Width (B) MM 9,00
4. Inner (d) Inch 0.4724
5. Outer (D) Inch 0.5512
6. Width (B) Inch 0.3543
7. Outer diameter (D o) mm 14,00
8. Width (b) mm 9,00
9. Outside diameter of flange (D fl) mm 20,00

Suffix description

1. E40 Steel Backing With Sintered Layer Of Tin Bronze. Pore Filling And Covering Layer (5 To 30µm) Of PTFE With Friction-Reduction Additives
2. Y Schaeffler Factory Code

Technical details

1. Availability 1,559 pcs
2. Brand INA
3. Item number EGF12090-E40-Y INA
4. Also known as 0692861910000
   GLY.PBG121409F
   PAF12090P10

5. EAN 4012802618358
6. Category Bushing

Weight and Dimensions

1. Weight (kg) 0.0042

Data from Schaeffler (medias)

1. Basic dynamic load rating, axial (C a) "15800.0000"
2. Radial Static Load Rating C0r (N) 21000
3. Radial Dynamic Load Rating Cr (N) 11800
4. Axial Static Load Rating C0a (N) 28300
5. Basic static load rating, axial (C 0a) "28300.0000"
6. Basic static load rating, radial (C 0r) "21000.0000"
7. Axial Dynamic Load Rating Ca (N) 15800
8. ECLASS number 23-05-01-91
9. ECLASS2 number 23-05-01-91

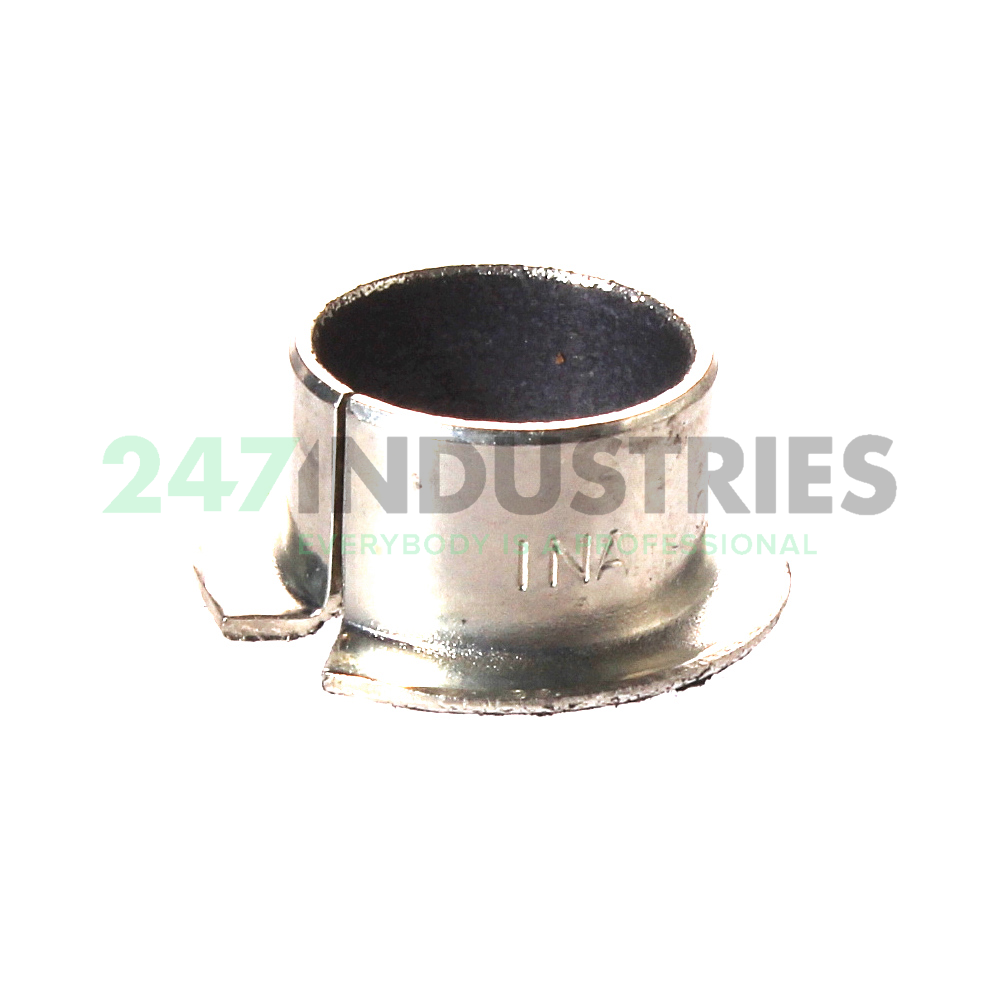

10. Medias description Flanged bush, maintenance-free, ISO 3547, with steel backing
