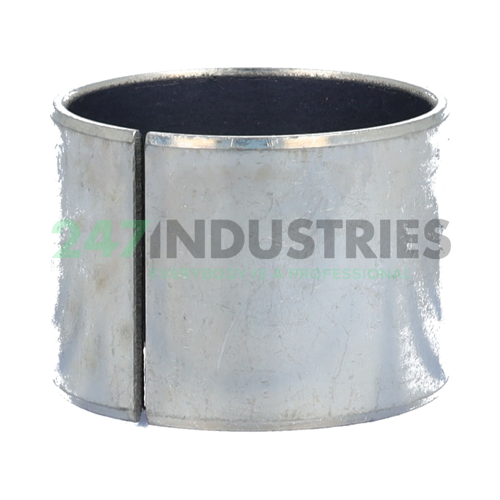

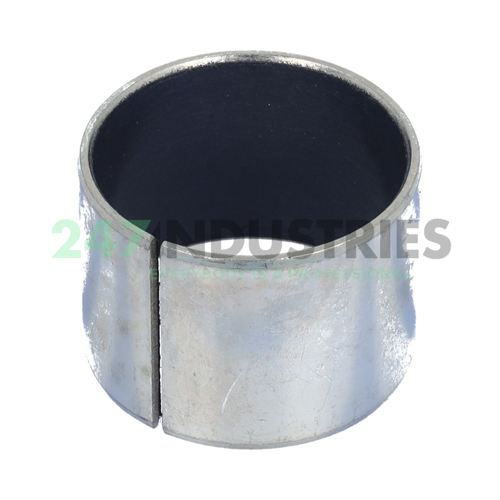

EGB5040-E40-Y INA

All dimensions

1. Inner (d) MM 50,00
2. Outer (D) MM 55,00
3. Width (B) MM 40,00
4. Inner (d) Inch 1.9685
5. Outer (D) Inch 2.1654
6. Width (B) Inch 1.5748
7. Outer diameter (D o) mm 55,00
8. Width (b) mm 40,00

Suffix description

1. E40 Steel Backing With Sintered Layer Of Tin Bronze. Pore Filling And Covering Layer (5 To 30µm) Of PTFE With Friction-Reduction Additives
2. Y Schaeffler Factory Code

Technical details

1. Availability 404 pcs
2. Brand INA
3. Item number EGB5040-E40-Y INA
4. Also known as 0664525970000

5. EAN 4012802618914
6. Category Bushing

Weight and Dimensions

1. Weight (kg) 0.093

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 500000
2. Radial Dynamic Load Rating Cr (N) 280000
3. Basic static load rating, radial (C 0r) "500000.0000"
4. ECLASS number 23-05-01-91
5. ECLASS2 number 23-05-01-91
6. Medias description Metal/polymer composite plain bush, maintenance-free, ISO 3547, with steel backing
