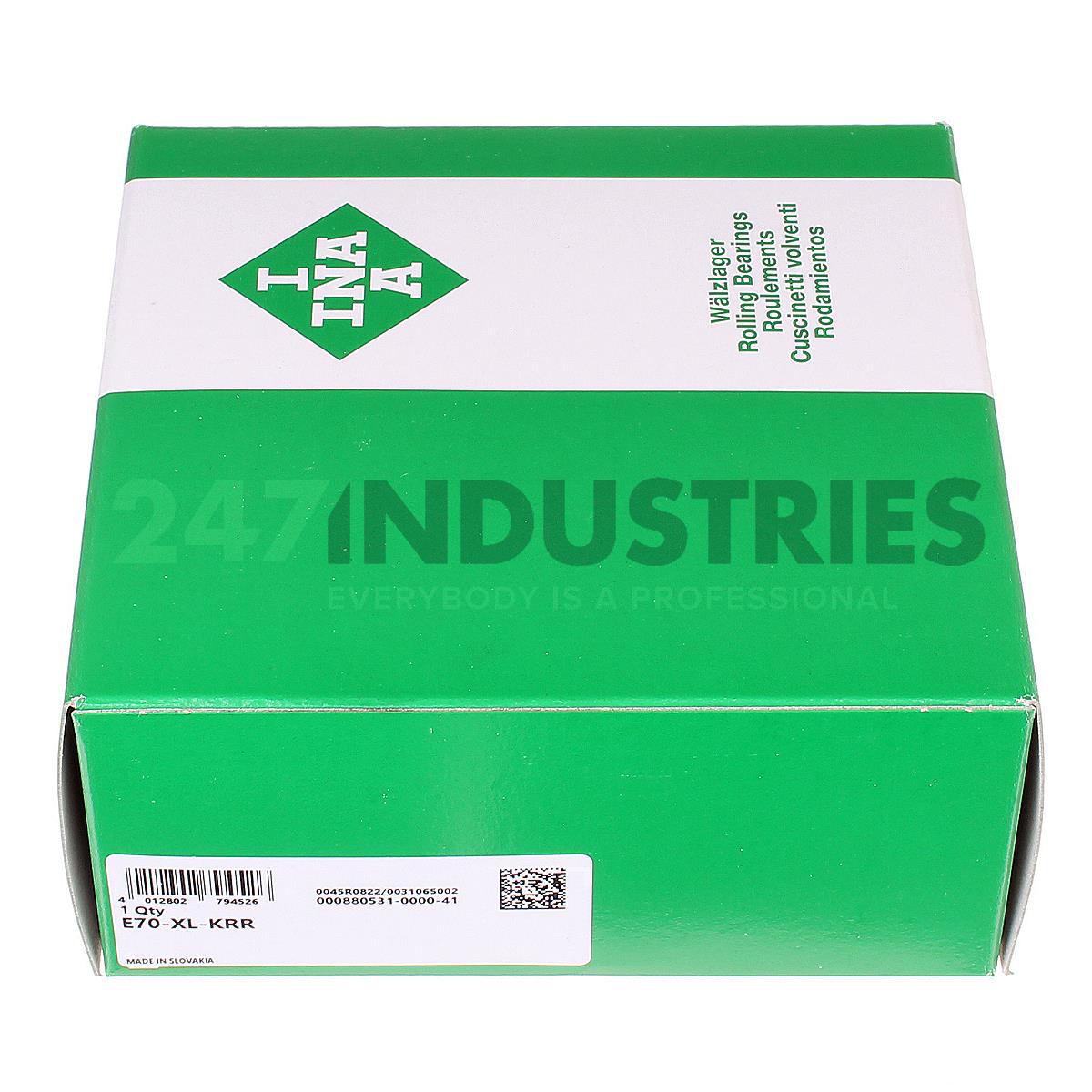

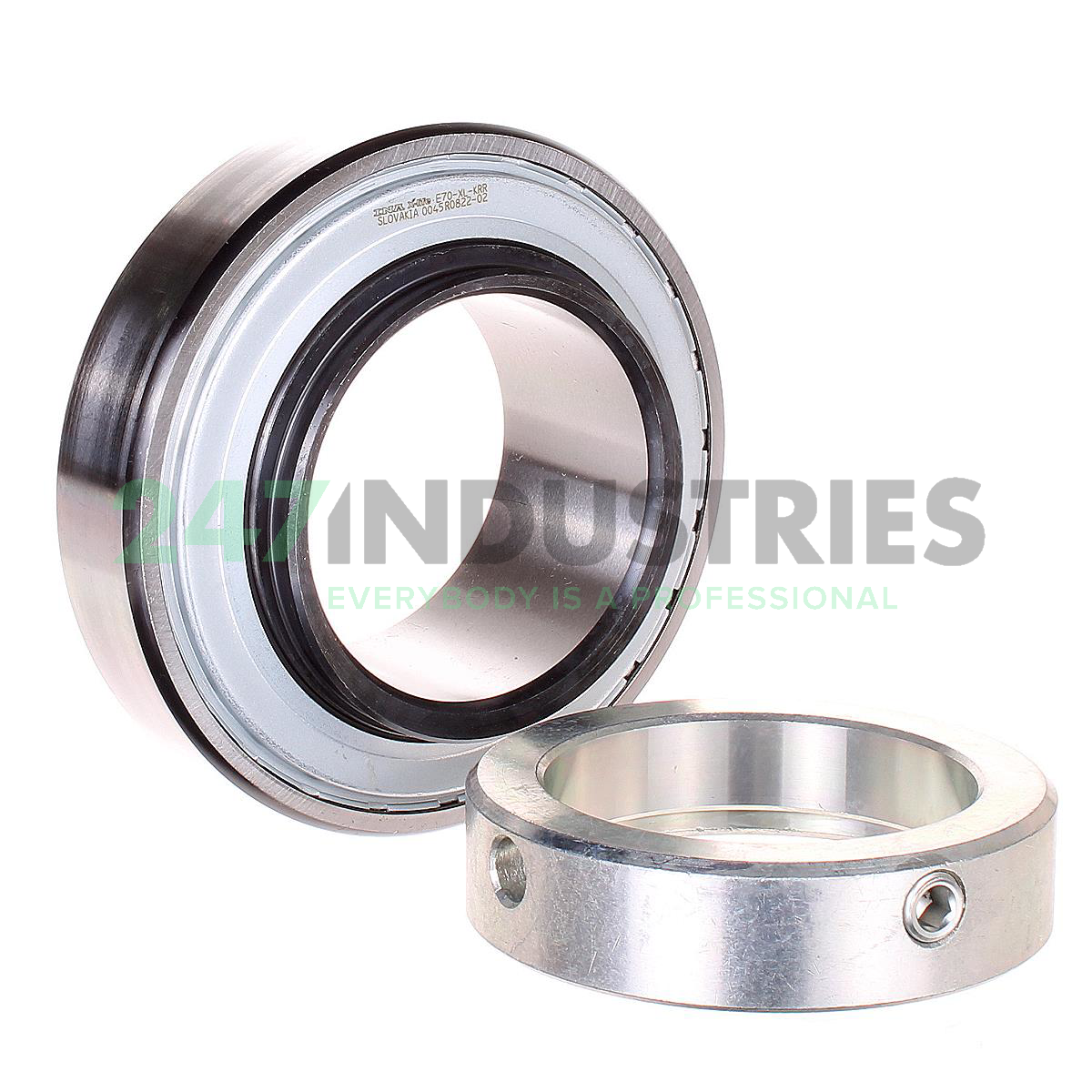

E70-XL-KRR INA

All dimensions

1. Inner (d) MM 70
2. Outer (D) MM 125
3. Width (B) MM 66
4. Inner (d) Inch 2.7559
5. Outer (D) Inch 4.9213
6. Width (B) Inch 2.5984
7. Width (b) mm 48,5
8. Locking collar total width (B 1) mm 66

Suffix description

1. XL X-Life
2. KRR Lip Seals On Both Sides (R Type Seal - Has A Zinc Plated Inner And Outer Cover. Between The Covers There Is An NBR Seal Lip Running On A Ground Shoulder)

Technical details

1. Availability 15 pcs
2. Brand INA
3. Item number E70-XL-KRR INA
4. Also known as 0008805310000
   E70-KRR

5. EAN 4012802794519
6. Category Bearings for Housings

Weight and Dimensions

1. Weight (kg) 2.45

Product Properties

1. Seal 2RS - Rubber Seal on Two Sides
2. Lubrication Standard Lubrication
3. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 44000
2. Radial Dynamic Load Rating Cr (N) 66000
3. ECLASS number 23-05-08-02
4. ECLASS2 number 23-05-08-02
5. Medias description Radial insert ball bearings E..-KRR, cylindrical outer ring, location by eccentric locking collar, R seals on both sides
