E5016XNNTS1 Nachi

Name: E5016XNNTS1 Nachi
Brand: Nachi

€ 224,87 ex VAT

€ 272,10 in VAT

€ 224,87 ex VAT

	Guaranteed same day shipment on orders placed before 18.00h (CEST)
	This product is available from stock
	Worldwide shipping from the Netherlands
	30 days return policy
	Track your order through Track & Trace

E5016XNNTS1 Nachi

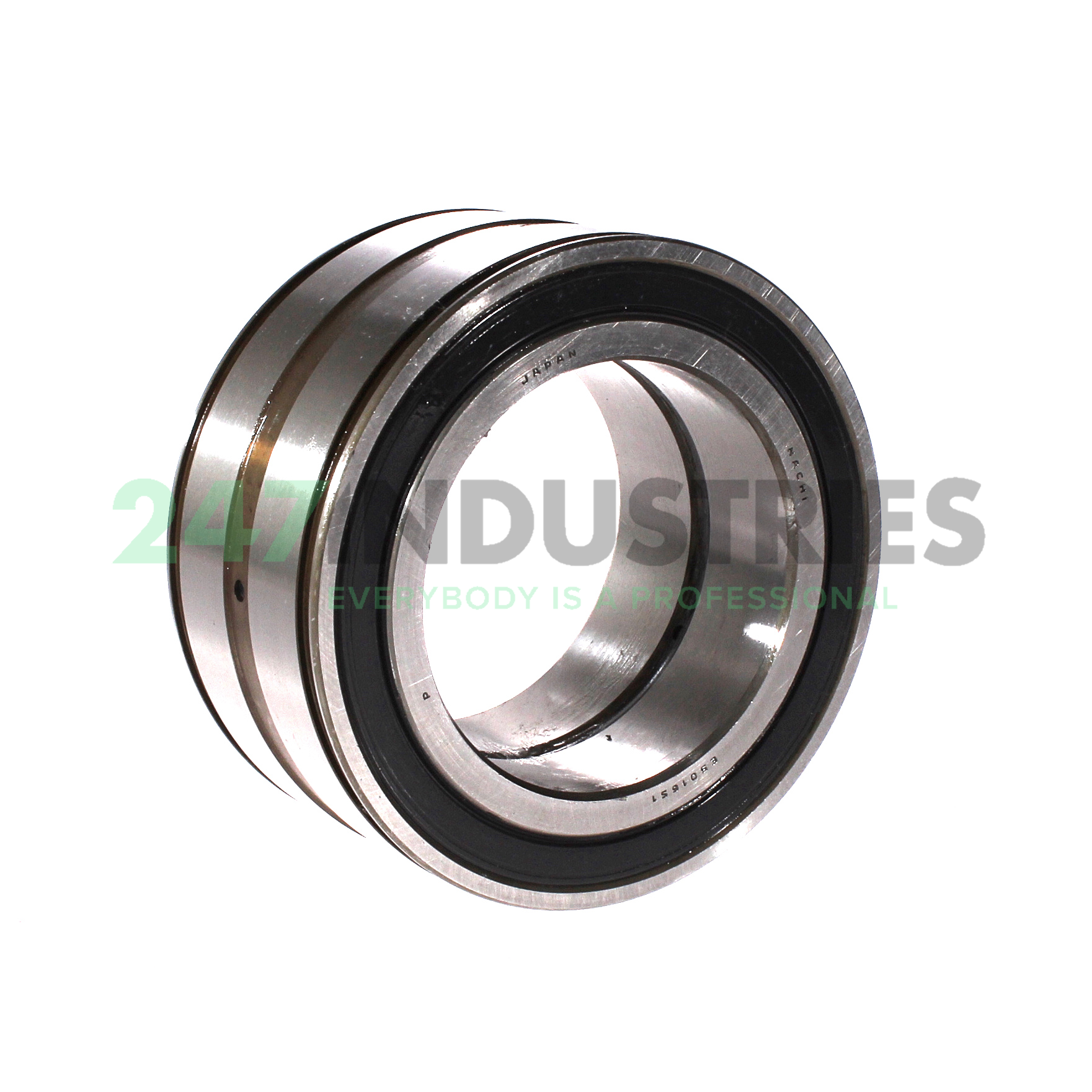

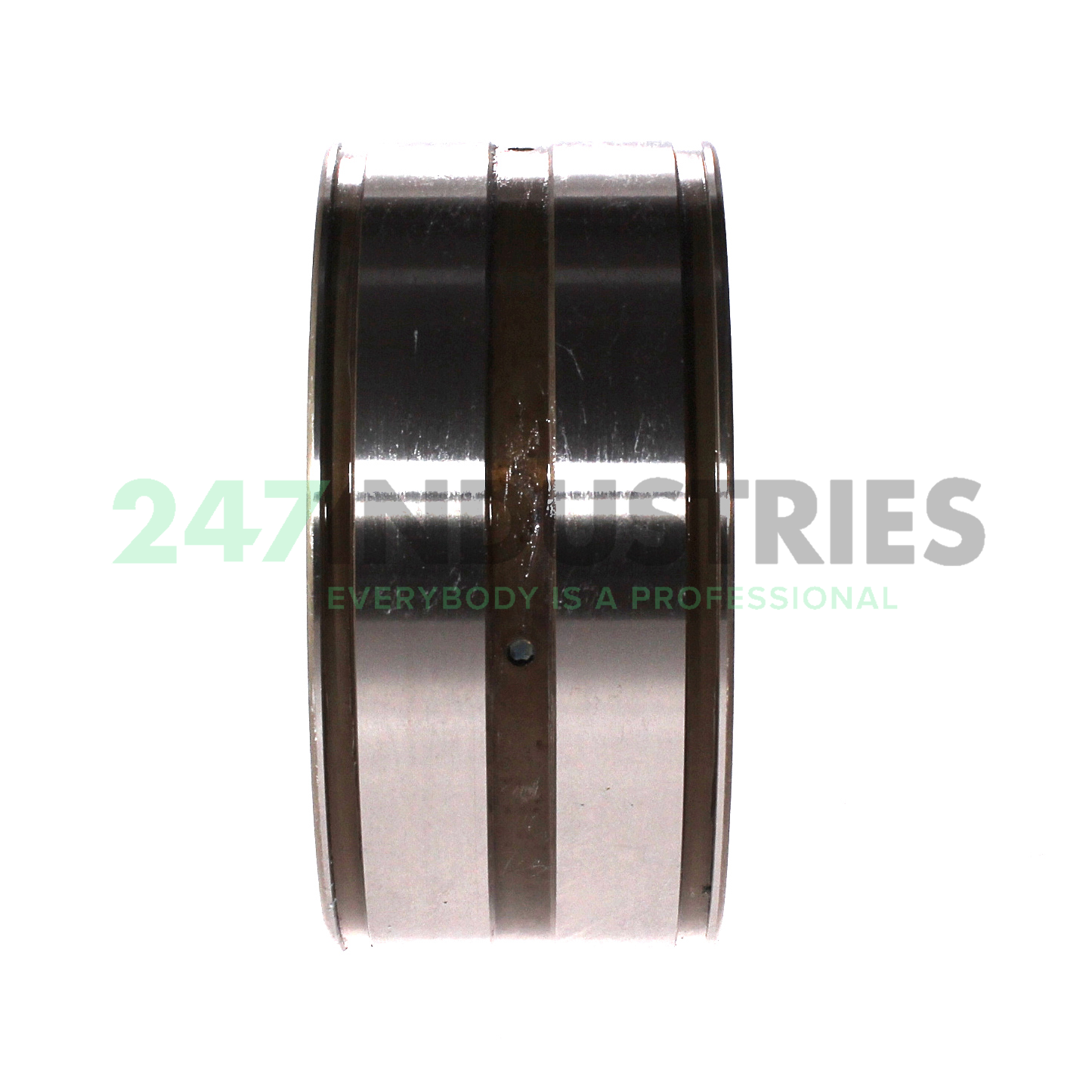

Double-row full-complement cylindrical roller bearing

Stock	10 pcs in stock and ready for shipment
Brand	Nachi
Article number	E5016XNNTS1 Nachi
Inside diameter	80mm
Outside diameter	125mm
Width	60mm

Product description

The E5016XNNTS1 Nachi is a full-complement double-row cylindrical roller bearing. This bearing has a particularly high radial load capacity. The design consists of a solid inner and outer ring with a double row of cylindrical rollers. These rolling elements are guided between flanges. Since there is no cage, a maximum number of rollers can be used. This type of bearing is therefore suitable for very heavy loads where lower rotational speeds are involved.

Help with this product

Email us at: help@247industries.com Response within 24h

Similar to: E5016XNNTS1 Nachi

Loading similair products

Product specifications

Inside diameter 80mm
Outside diameter 125mm
Width 60mm

All dimensions

Inner (d) MM 80
Outer (D) MM 125
Width (B) MM 60
Inner (d) Inch 3.1496
Outer (D) Inch 4.9213
Width (B) Inch 2.3622

Suffix description

X Boundary Dimensions Not In Accordance With ISO Dimension Series
NNTS1 Two Snap Rings And Two Rubber Contact Seals, One Lubricating Hole In Inner Ring
