E5015XNNTS1 Nachi

Name: E5015XNNTS1 Nachi
Brand: Nachi

€ 112,53 ex VAT

€ 136,16 in VAT

€ 112,53 ex VAT

	Guaranteed same day shipment on orders placed before 18.00h (CET)
	This product is available from stock
	Worldwide shipping from the Netherlands
	30 days return policy
	Track your order through Track & Trace

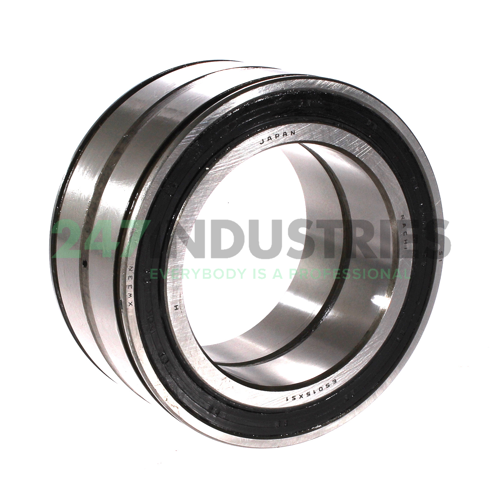

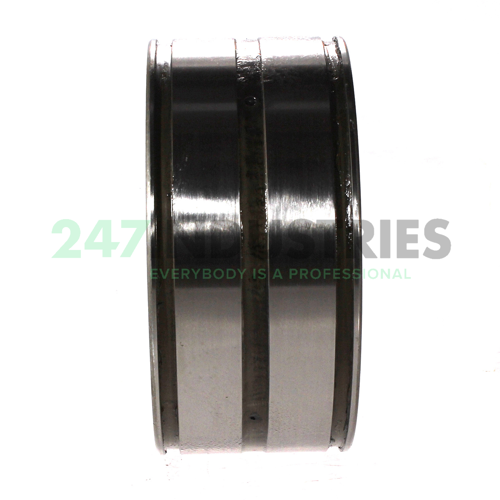

E5015XNNTS1 Nachi

Double-row full-complement cylindrical roller bearing

Stock	4 pcs in stock and ready for shipment
Brand	Nachi
Article number	E5015XNNTS1 Nachi
Inside diameter	75mm
Outside diameter	115mm
Width	54mm

Product description

The E5015XNNTS1 Nachi is a full-complement double-row cylindrical roller bearing. This bearing has a particularly high radial load capacity. The design consists of a solid inner and outer ring with a double row of cylindrical rollers. These rolling elements are guided between flanges. Since there is no cage, a maximum number of rollers can be used. This type of bearing is therefore suitable for very heavy loads where lower rotational speeds are involved.

Email us at: help@247industries.com Response within 24h

Similar to: E5015XNNTS1 Nachi

Loading similair products

Product specifications

Inside diameter 75mm
Outside diameter 115mm
Width 54mm

All dimensions

Inner (d) MM 75
Outer (D) MM 115
Width (B) MM 54
Inner (d) Inch 2.9528
Outer (D) Inch 4.5276
Width (B) Inch 2.126

Suffix description

X Boundary Dimensions Not In Accordance With ISO Dimension Series
NNTS1 Two Snap Rings And Two Rubber Contact Seals, One Lubricating Hole In Inner Ring
