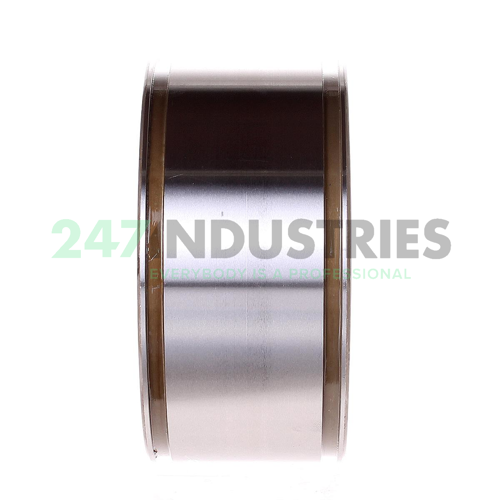

E5014XNNTS1 Nachi

All dimensions

1. Inner (d) MM 70,00
2. Outer (D) MM 110,00
3. Width (B) MM 54,00
4. Inner (d) Inch 2.7559
5. Outer (D) Inch 4.3307
6. Width (B) Inch 2.1260

Suffix description

1. X Boundary Dimensions Not In Accordance With ISO Dimension Series
2. NNTS1 Two Snap Rings And Two Rubber Contact Seals, One Lubricating Hole In Inner Ring

Technical details

1. Availability 0 pcs
2. Brand Nachi
3. Item number E5014XNNTS1 Nachi
4. Also known as NNF5014ADA-2LSV
   SL045014-PP-2NR

5. Category Cylindrical Roller Bearing Double Row

Weight and Dimensions

1. Weight (kg) 1.86

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2L - LS-seal at Both Sides
3. Cage Type FC - Full Complement, No Cage
4. External Modification 2R - 2 Snap Rings in O.D.
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
