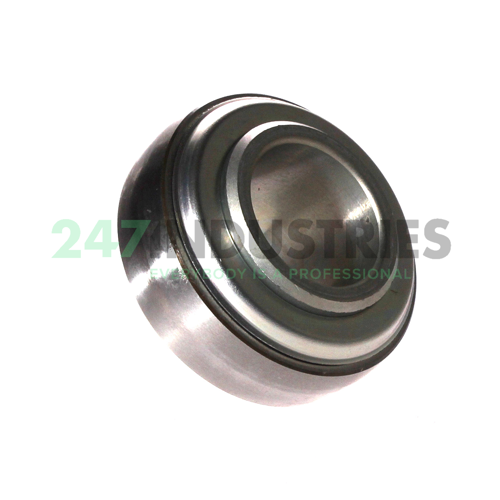

E35-XL-KTT-B-2C-OSE INA

All dimensions

1. Inner (d) MM 35
2. Outer (D) MM 72
3. Width (B) MM 37,7
4. Inner (d) Inch 1.378
5. Outer (D) Inch 2.8346
6. Width (B) Inch 1.4843
7. Outside diameter (D SP) mm 72
8. Width (b) mm 37,7

Suffix description

1. XL X-Life
2. KTT Triple Lip Seals On Both Sides Of The Bearing (T Type Seal)

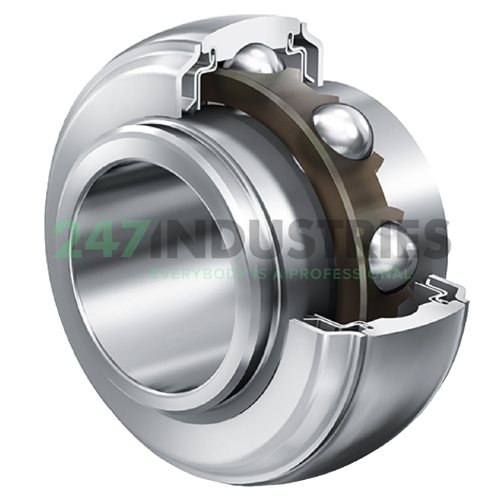

3. B Bearing With Spherical Outer Ring
4. 2C Flinger Shields On Both Sides
5. OSE Bearing Without Locking Element (Eccentric Locking Collar)
6. >A Alteration In Internal Construction. Identical To Old Notation

Technical details

1. Availability 10 pcs
2. Brand INA
3. Item number E35-XL-KTT-B-2C-OSE INA
4. Also known as 0964032250000
   E35-K-TT-B-2C-OS>A
   E35-KTT-B-2C-OSE
   E35-XL-K-TT-B-2C-OS>A
   E35-XL-K-TT-B-2C-OSE

5. EAN 4064327237422
6. Category Bearings for Housings

Weight and Dimensions

1. Weight (kg) 0.445

Product Properties

1. Seal 3T - Tripple Seal
2. Lubrication Standard Lubrication
3. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Basic static load rating, radial (C 0r) 15300
