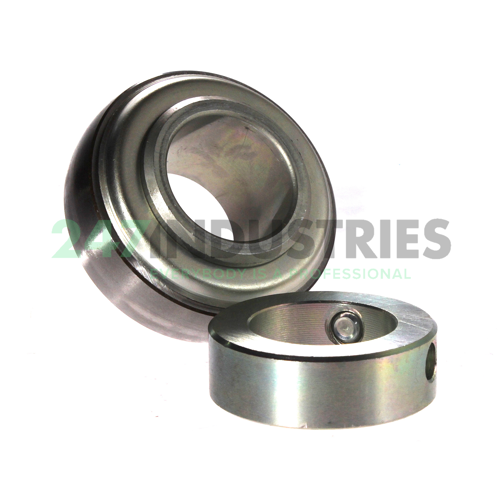

E35-XL-KTT-B-2C INA

All dimensions

1. Inner (d) MM 35
2. Outer (D) MM 72
3. Width (B) MM 51,3
4. Inner (d) Inch 1.378
5. Outer (D) Inch 2.8346
6. Width (B) Inch 2.0197
7. Outside diameter (D SP) mm 72
8. Width (b) mm 37,7
9. Locking collar total width (B 1) mm 51,3

Suffix description

1. XL X-Life
2. KTT Triple Lip Seals On Both Sides Of The Bearing (T Type Seal)
3. B Bearing With Spherical Outer Ring
4. 2C Flinger Shields On Both Sides

Technical details

1. Availability 11 pcs
2. Brand INA
3. Item number E35-XL-KTT-B-2C INA
4. Also known as 0964032330000
   E35-KTT-B-2C

5. EAN 4064327237439
6. Category Bearings for Housings

Weight and Dimensions

1. Weight (kg) 0.59

Product Properties

1. Seal 3T - Tripple Seal
2. Lubrication Standard Lubrication
3. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Basic static load rating, radial (C 0r) 15300
