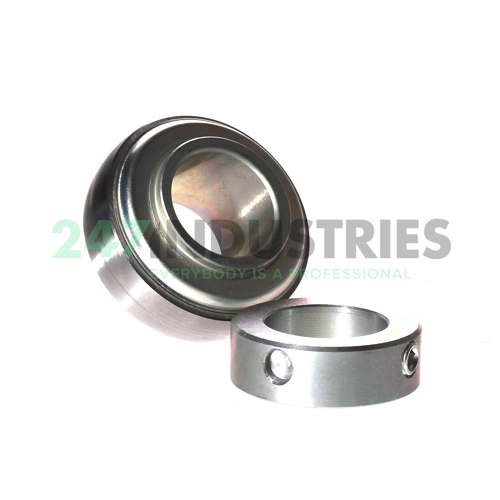

E35-KTT-B-2C>A INA

All dimensions

1. Inner (d) MM 35
2. Outer (D) MM 72
3. Width (B) MM 51,3
4. Inner (d) Inch 1.378
5. Outer (D) Inch 2.8346
6. Width (B) Inch 2.0197

Suffix description

1. KTT Triple Lip Seals On Both Sides Of The Bearing (T Type Seal)
2. B Bearing With Spherical Outer Ring
3. 2C Flinger Shields On Both Sides
4. >A Alteration In Internal Construction. Identical To Old Notation

Technical details

1. Availability 0 pcs
2. Brand INA
3. Item number E35-KTT-B-2C>A INA
4. Category Bearings for Housings

Weight and Dimensions

1. Weight (kg) 0.59

Product Properties

1. Seal 3T - Tripple Seal
2. Lubrication Standard Lubrication
3. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. ECLASS number 23-05-08-02
2. ECLASS2 number 23-05-08-02
