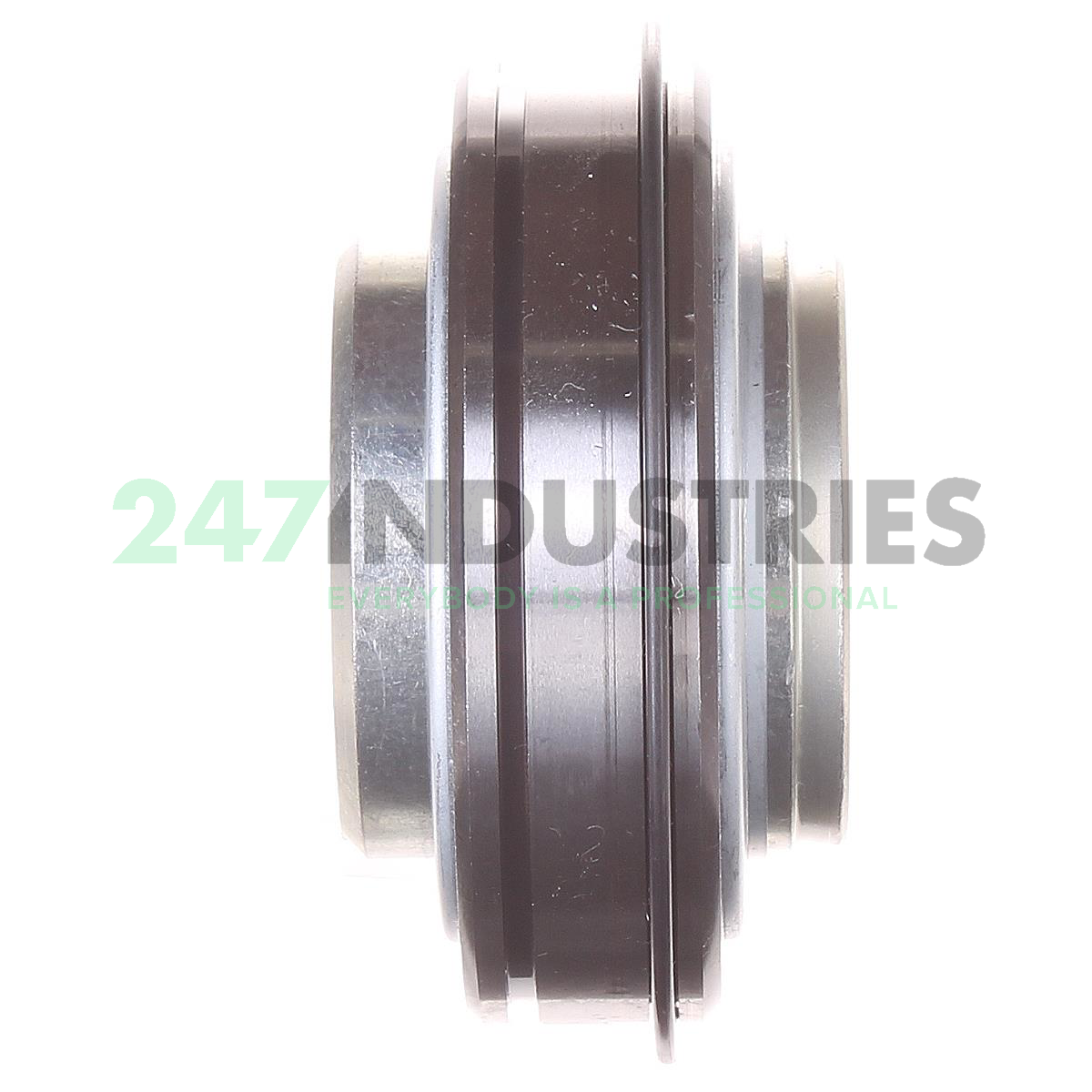

E35-KLL-NR-AH01-OSE INA

All dimensions

1. Inner (d) MM 35
2. Outer (D) MM 72
3. Width (B) MM 51,3
4. Inner (d) Inch 1.378
5. Outer (D) Inch 2.8346
6. Width (B) Inch 2.0197

Suffix description

1. K Conrad (Non-Filling Slot) Type
2. LL Labyrinth Seals On Both Sides (L Type Seal - All Parts Of The L Type Seal Are Zinc Plated On All Sides In Order To Improve Corrosion Protection - No Seal Friction)
3. NR Slot And Snap Ring For Radial Insert Ball Bearings With Cylindrical Outer Ring
4. AH01 Dimensions Can Deviate From Basic Part Number, Internal Clearance Is C3 (Larger Than Normal) and Protected Against Corrosion By Corrotect® Special Coating
5. OSE Bearing Without Locking Element (Eccentric Locking Collar)

Technical details

1. Availability 31 pcs
2. Brand INA
3. Item number E35-KLL-NR-AH01-OSE INA
4. Also known as 0035605970000

5. EAN 4012802822342
6. Category Bearings for Housings

Weight and Dimensions

1. Weight (kg) 0.55

Product Properties

1. Seal 2L - LS-seal at Both Sides
2. Lubrication Standard Lubrication
3. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. ECLASS number 23-05-08-02
2. ECLASS2 number 23-05-08-02

Downloads and links

1. Link to manufacturer Link to manufacturer
