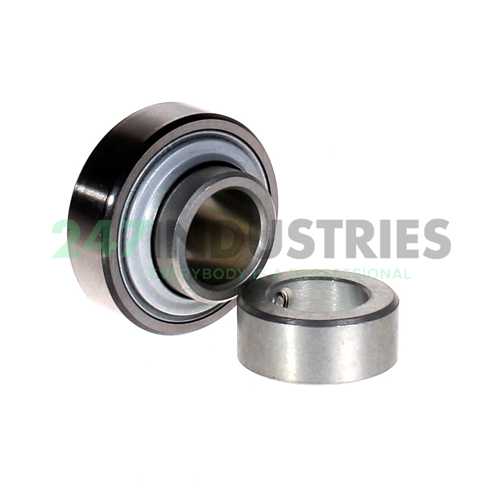

E20-XL-KRR INA

All dimensions

1. Inner (d) MM 20
2. Outer (D) MM 47
3. Width (B) MM 43,7
4. Inner (d) Inch 0.7874
5. Outer (D) Inch 1.8504
6. Width (B) Inch 1.7205
7. Width (b) mm 34,1
8. Locking collar total width (B 1) mm 43,7

Suffix description

1. XL X-Life
2. KRR Lip Seals On Both Sides (R Type Seal - Has A Zinc Plated Inner And Outer Cover. Between The Covers There Is An NBR Seal Lip Running On A Ground Shoulder)

Technical details

1. Availability 8 pcs
2. Brand INA
3. Item number E20-XL-KRR INA
4. Also known as 0008644200000
   E20-KRR

5. EAN 4012802797046
6. Category Bearings for Housings

Weight and Dimensions

1. Weight (kg) 0.2

Product Properties

1. Seal 2RS - Rubber Seal on Two Sides
2. Lubrication Standard Lubrication
3. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 6600
2. Radial Dynamic Load Rating Cr (N) 13600
3. Basic static load rating, radial (C 0r) "6600.0000"
4. ECLASS number 23-05-08-02
5. ECLASS2 number 23-05-08-02
6. Medias description Radial insert ball bearings E..-KRR, cylindrical outer ring, location by eccentric locking collar, R seals on both sides
