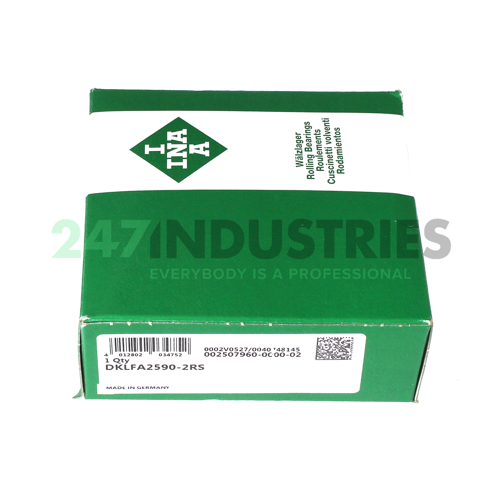

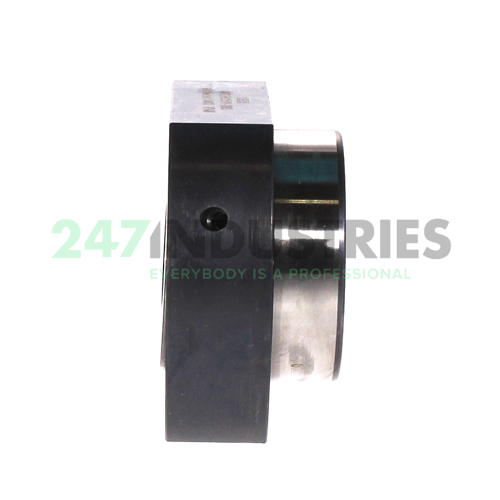

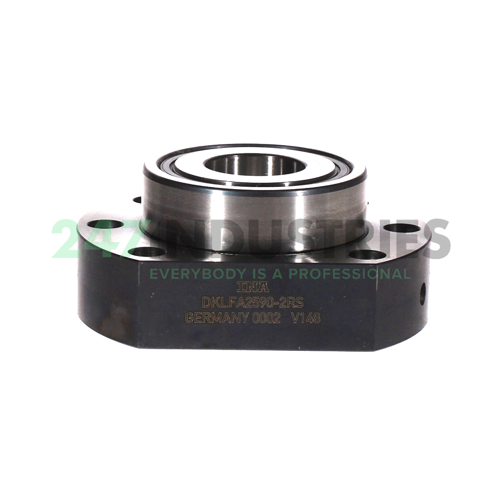

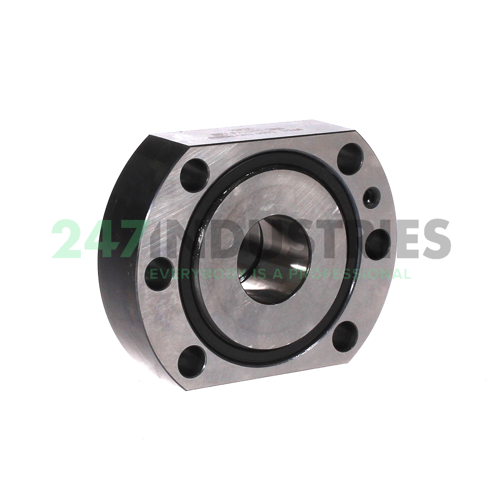

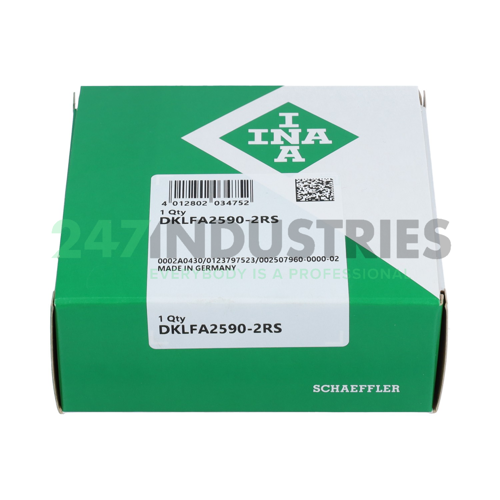

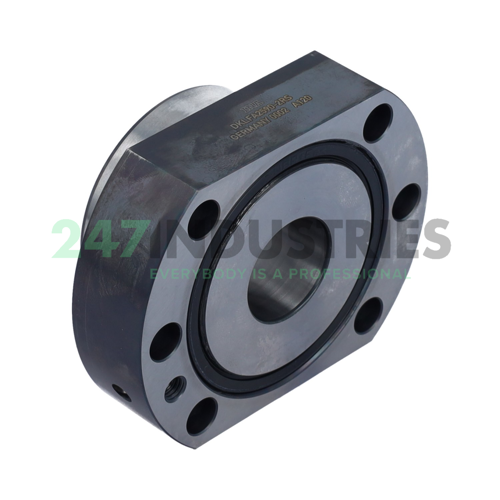

DKLFA2590-2RS INA

All dimensions

1. Inner (d) MM 25,00
2. Outer (D) MM 57,00
3. Width (B) MM 38,00
4. Inner (d) Inch 0.9843
5. Outer (D) Inch 2.2441
6. Width (B) Inch 1.4961
7. Width (b) mm 38,00

Suffix description

1. 2RS Lip Seal At Both Sides Of The Bearing, Axial Fitting

Technical details

1. Availability 7 pcs
2. Brand INA
3. Item number DKLFA2590-2RS INA
4. Also known as 0025079600000

5. EAN 4012802034752
6. Category Angular Contact Ball Bearing Double Row

Weight and Dimensions

1. Weight (kg) 0.9

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RS - Rubber Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification F - Flange
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Split Inner ring / Outer ring Split inner ring

Data from Schaeffler (medias)

1. Basic dynamic load rating, axial (C a) "27500.0000"
2. Axial Static Load Rating C0a (N) 55000
3. Basic static load rating, axial (C 0a) "55000.0000"
4. Axial Dynamic Load Rating Ca (N) 27500
5. Limiting speed for grease lubrication (n G Grease) "4400.0000"
6. Thermally permissible speed (n ϑ) "2000.0000"
7. ECLASS number 23-05-10-02
8. ECLASS2 number 23-05-10-02
9. Medias description Angular contact ball bearing units DKLFA..-2RS, double direction, for screw mounting, lip seals on both sides, with flattened flange
