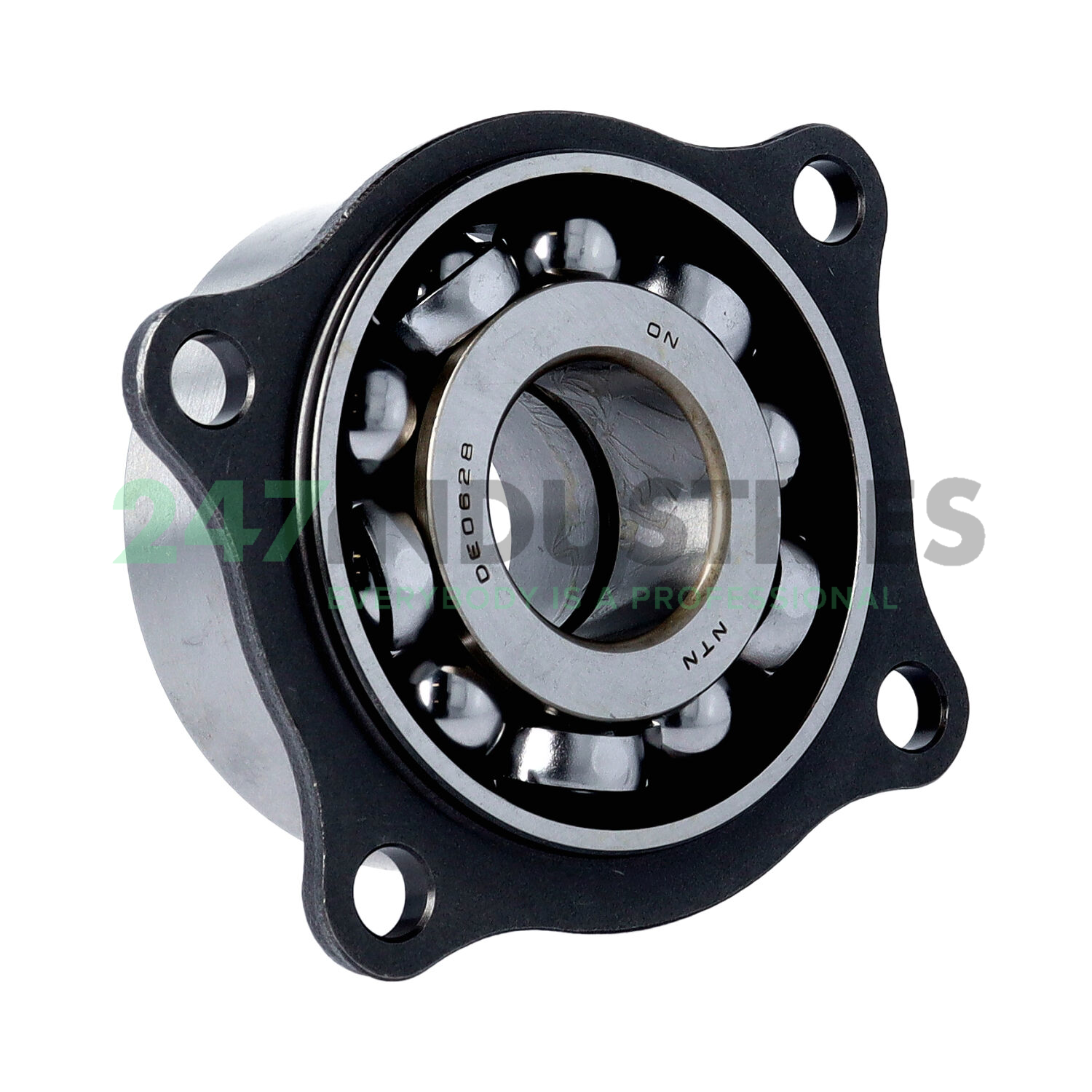

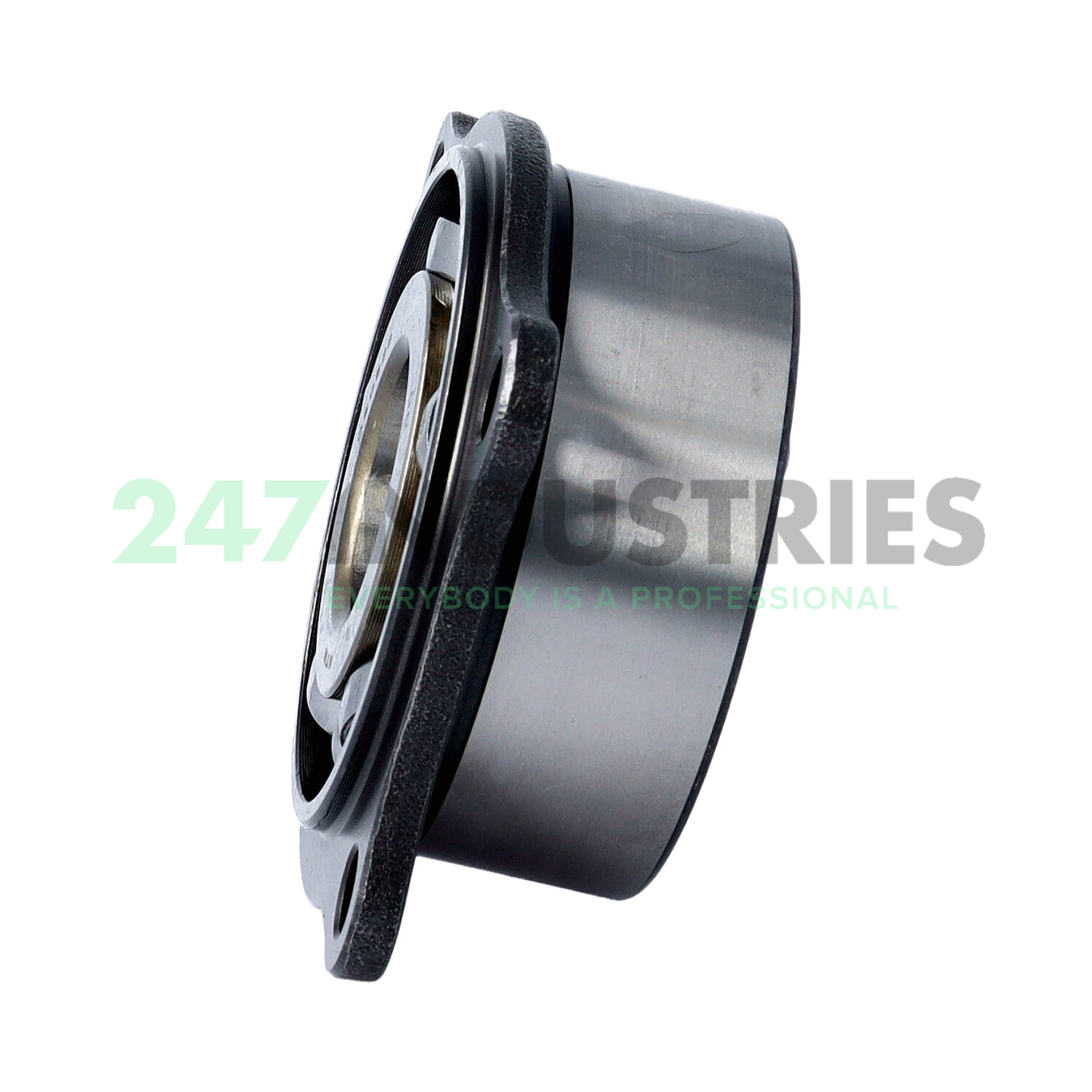

DE0628/GH NTN

All dimensions

1. Inner (d) MM 29
2. Outer (D) MM 74
3. Width (B) MM 38
4. Inner (d) Inch 1.1417
5. Outer (D) Inch 2.9134
6. Width (B) Inch 1.4961

Technical details

1. Availability 0 pcs
2. Brand NTN
3. Item number DE0628/GH NTN
4. Category Angular Contact Ball Bearing Double Row

Weight and Dimensions

1. Weight (kg) 0.848

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Split Inner ring / Outer ring Split inner ring
