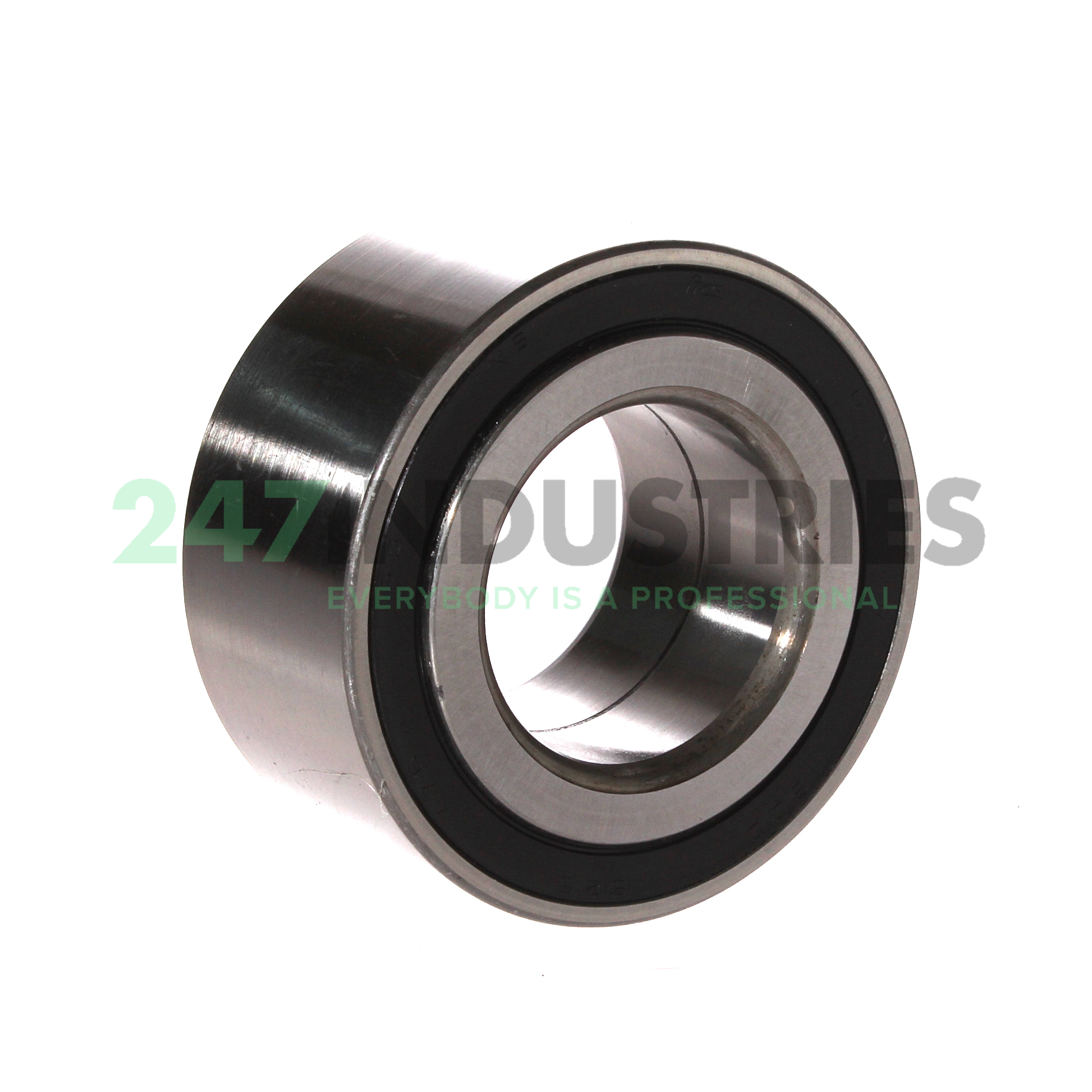

DAC4484CW 2RS CS76 Koyo (JTEKT)

All dimensions

1. Inner (d) MM 44
2. Outer (D) MM 84
3. Width (B) MM 42
4. Inner (d) Inch 1.7323
5. Outer (D) Inch 3.3071
6. Width (B) Inch 1.6535

Suffix description

1. C 15° Contact Angle
2. W Ball Bearing Wide Series
3. 2RS Rubber Seals At Each Side Of The Bearing
4. CS76 Special Clearance In Micron

Technical details

1. Availability 13 pcs
2. Brand Koyo (JTEKT)
3. Item number DAC4484CW 2RS CS76 Koyo (JTEKT)
4. Category Angular Contact Ball Bearing Double Row

Weight and Dimensions

1. Weight (kg) 0.916

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RS - Rubber Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Split Inner ring / Outer ring Split inner ring
