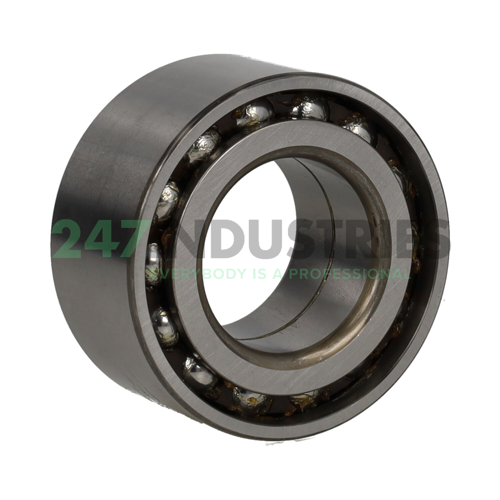

DAC3668AWCS36 Koyo (JTEKT)

All dimensions

1. Inner (d) MM 36
2. Outer (D) MM 68
3. Width (B) MM 33
4. Inner (d) Inch 1.4173
5. Outer (D) Inch 2.6772
6. Width (B) Inch 1.2992

Suffix description

1. A Special Internal Design
2. W Ball Bearing Wide Series
3. CS36 Special Clearance In Micron

Technical details

1. Availability 4 pcs
2. Brand Koyo (JTEKT)
3. Item number DAC3668AWCS36 Koyo (JTEKT)
4. Category Angular Contact Ball Bearing Double Row

Weight and Dimensions

1. Weight (kg) 0.468

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RS - Rubber Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play Special Internal Clearance
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Split Inner ring / Outer ring Split inner ring
