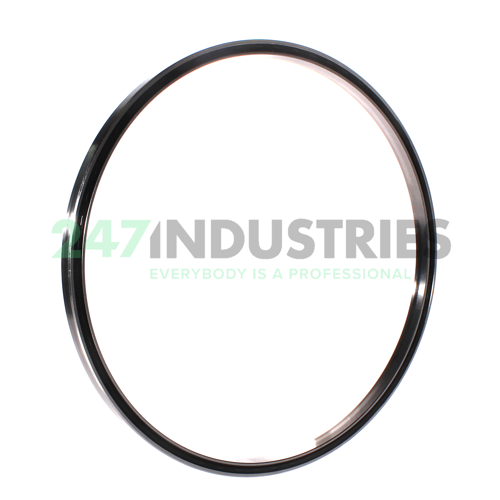

CSXU100-2RS-HLE INA

All dimensions

1. Inner (d) MM 254
2. Outer (D) MM 273,05
3. Width (B) MM 12,7
4. Inner (d) Inch 10
5. Outer (D) Inch 10.75
6. Width (B) Inch 0.5
7. Width (b) mm 12,7

Suffix description

1. 2RS Rubber Seals At Each Side Of The Bearing
2. HLE Factory Location Code, No Additional Meaning. Can Be Used As Standard

Technical details

1. Availability 3 pcs
2. Brand INA
3. Item number CSXU100-2RS-HLE INA
4. Also known as 0035132110000
   6000046
   FPXU1000-2RS1
   JSU100XPO
   JU100XPO
   L18SG1000.2RSD
   NBX25412DD

5. EAN 4047643181594
6. Category Four Point Contact Ball Bearing

Weight and Dimensions

1. Weight (kg) 0.617

Product Properties

1. Seal 2RS - Rubber Seal on Two Sides
2. Cage Type M - Brass Cage
3. External Modification No External Modification
4. Radial Internal Play Cn Normal Internal Play
5. Precision ABEC.1 Tolerances
6. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
7. Split Inner ring / Outer ring Standard

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 35000
2. Radial Dynamic Load Rating Cr (N) 14300
3. ECLASS number 23-05-08-03
4. ECLASS2 number 23-05-08-03
5. Medias description Thin Section Bearing CSXU..-2RS, four-point contact bearing
