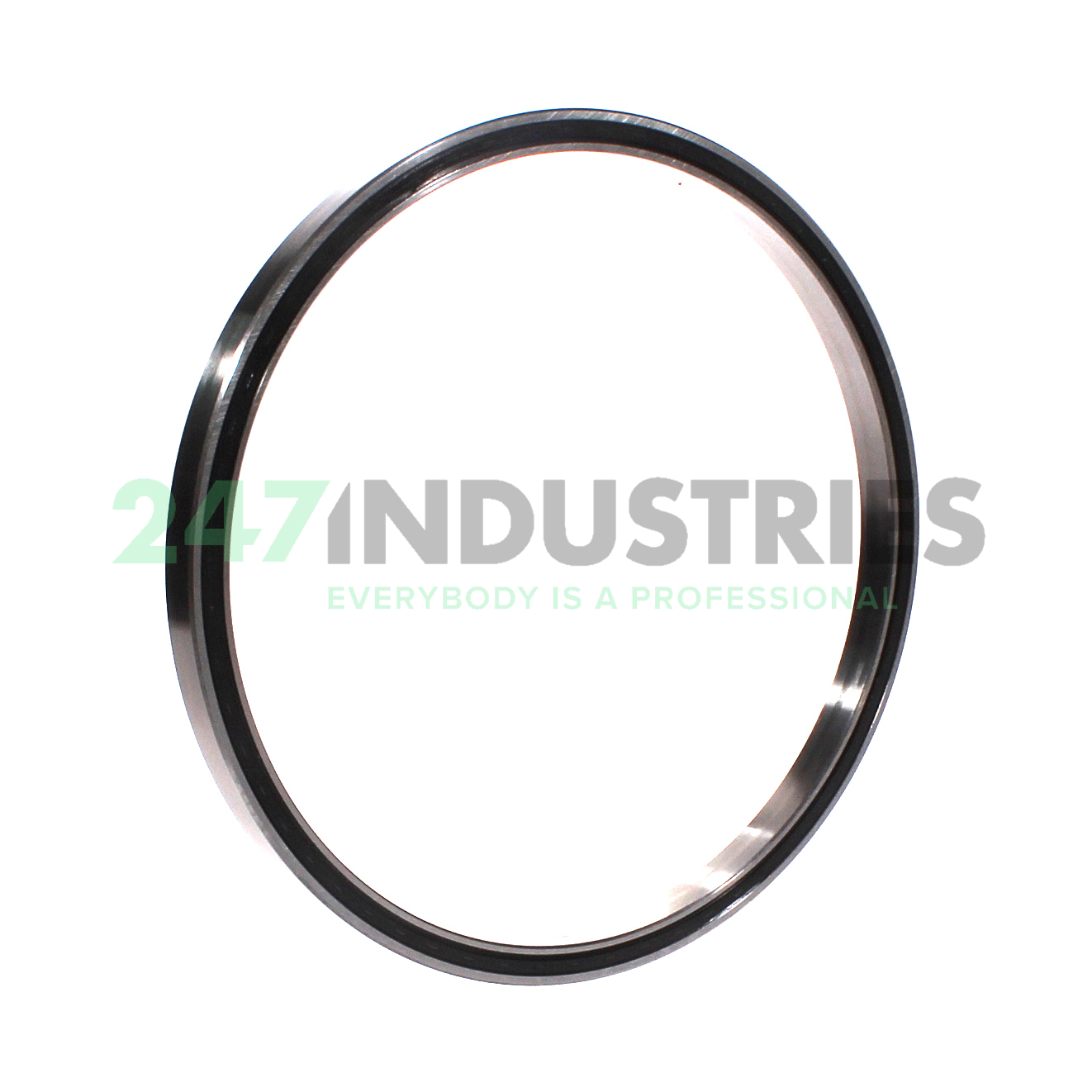

CSXU070-2RS-HLE INA

All dimensions

1. Inner (d) MM 177,80
2. Outer (D) MM 196,85
3. Width (B) MM 12,70
4. Inner (d) Inch 7.0000
5. Outer (D) Inch 7.7500
6. Width (B) Inch 0.5000
7. Width (b) mm 12,70

Suffix description

1. 2RS Rubber Seals At Each Side Of The Bearing
2. HLE Factory Location Code, No Additional Meaning. Can Be Used As Standard

Technical details

1. Availability 3 pcs
2. Brand INA
3. Item number CSXU070-2RS-HLE INA
4. Also known as 0036862300000
   6000046
   FPXU700-2RS1
   JSU070XPO
   JU070XPO
   L18SG700.2RSD

5. EAN 4054364141240
6. Category Four Point Contact Ball Bearing

Weight and Dimensions

1. Weight (kg) 0.44

Product Properties

1. Seal 2RS - Rubber Seal on Two Sides
2. Cage Type M - Brass Cage
3. External Modification No External Modification
4. Radial Internal Play Cn Normal Internal Play
5. Precision ABEC.1 Tolerances
6. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
7. Split Inner ring / Outer ring Standard

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 24700
2. Radial Dynamic Load Rating Cr (N) 12600
3. Basic static load rating, radial (C 0r) "24700.0000"
4. ECLASS number 23-05-08-03
5. ECLASS2 number 23-05-08-03
6. Medias description Thin Section Bearing CSXU..-2RS, four-point contact bearing
