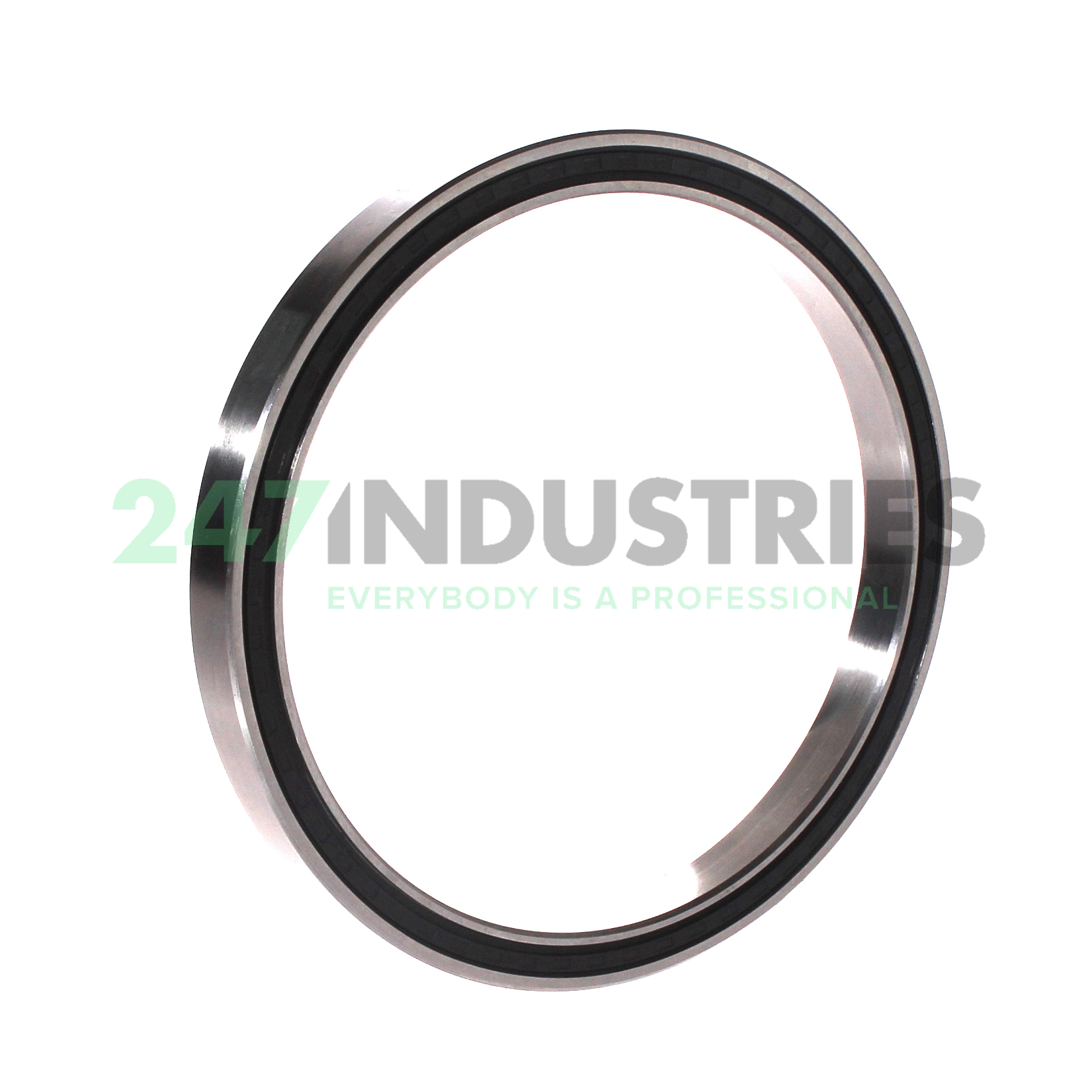

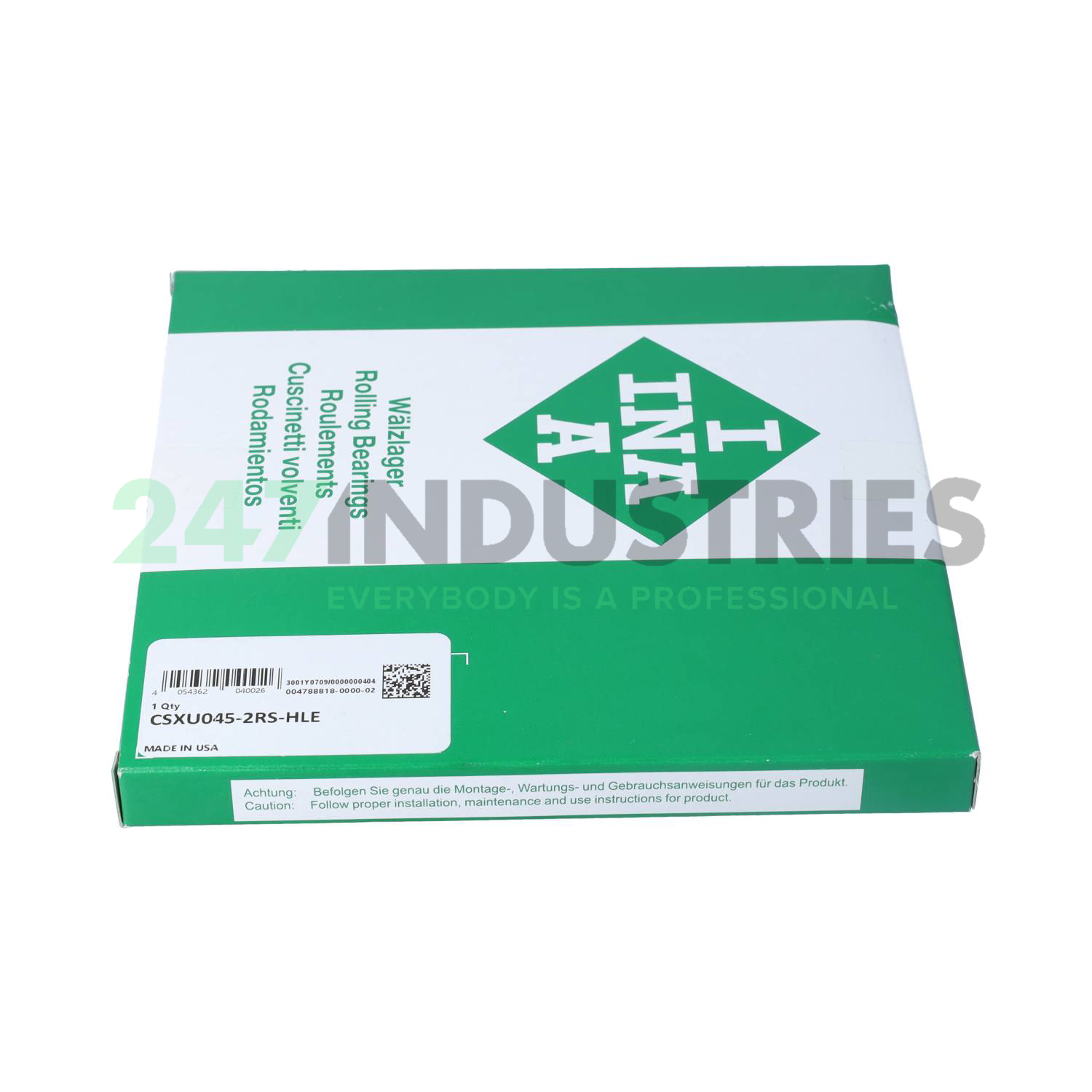

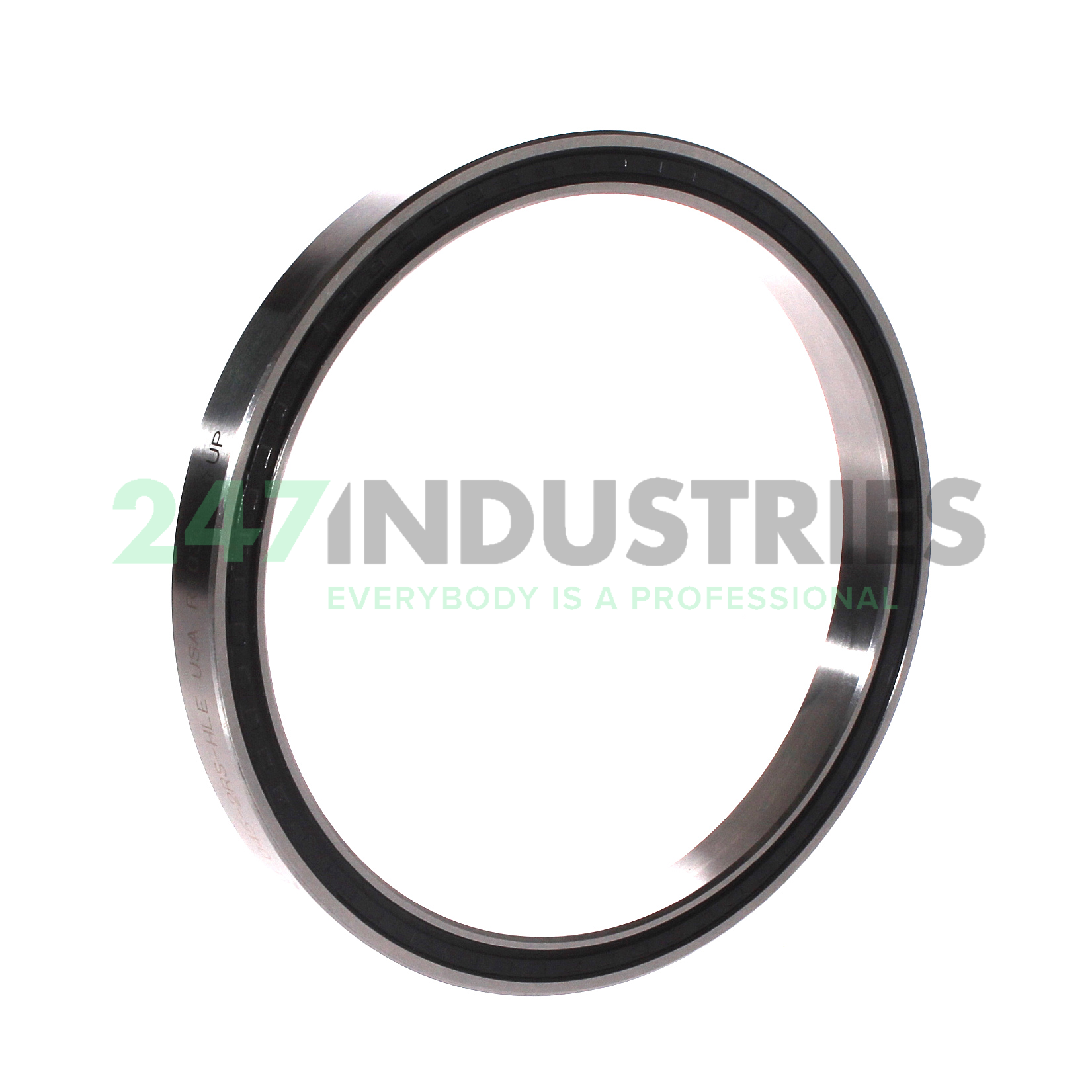

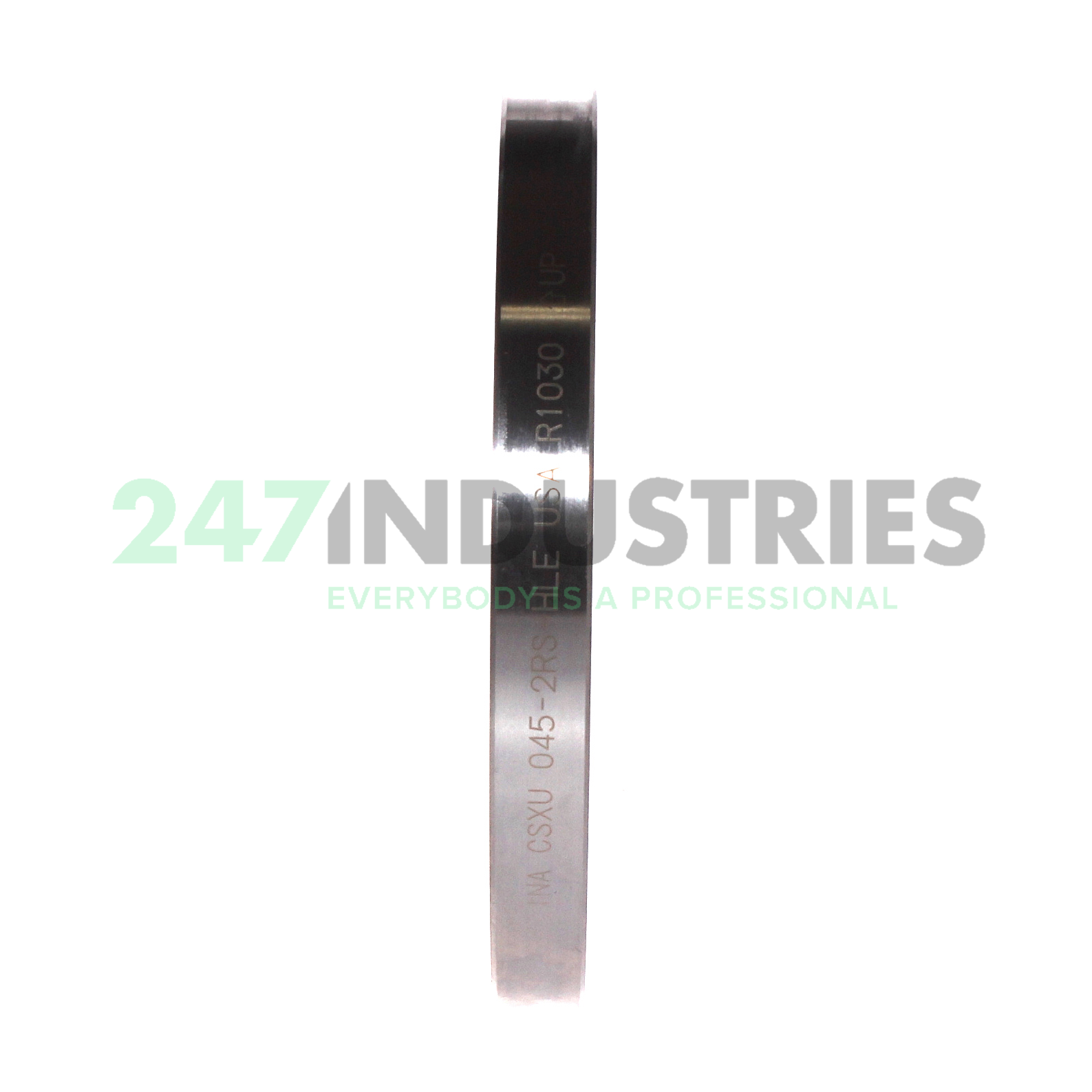

CSXU045-2RS-HLE INA

All dimensions

1. Inner (d) MM 114,30
2. Outer (D) MM 133,35
3. Width (B) MM 12,70
4. Inner (d) Inch 4.5000
5. Outer (D) Inch 5.2500
6. Width (B) Inch 0.5000
7. Width (b) mm 12,70

Suffix description

1. 2RS Rubber Seals At Each Side Of The Bearing
2. HLE Factory Location Code, No Additional Meaning. Can Be Used As Standard

Technical details

1. Availability 1 pc
2. Brand INA
3. Item number CSXU045-2RS-HLE INA
4. Also known as 0047888180000
   6000046
   FPXU408-2RS1
   JSU045XPO
   JU045XPO
   L18SG408.2RSD
   NBX 11412DD

5. EAN 4054362040026
6. Category Four Point Contact Ball Bearing

Weight and Dimensions

1. Weight (kg) 0.263

Product Properties

1. Seal 2RS - Rubber Seal on Two Sides
2. Cage Type M - Brass Cage
3. External Modification No External Modification
4. Radial Internal Play Cn Normal Internal Play
5. Precision ABEC.1 Tolerances
6. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
7. Split Inner ring / Outer ring Standard

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 16100
2. Radial Dynamic Load Rating Cr (N) 10800
3. Basic static load rating, radial (C 0r) "16100.0000"
4. ECLASS number 23-05-08-03
5. ECLASS2 number 23-05-08-03
6. Medias description Thin Section Bearing CSXU..-2RS, four-point contact bearing

Downloads and links

1. Link to manufacturer Link to manufacturer
