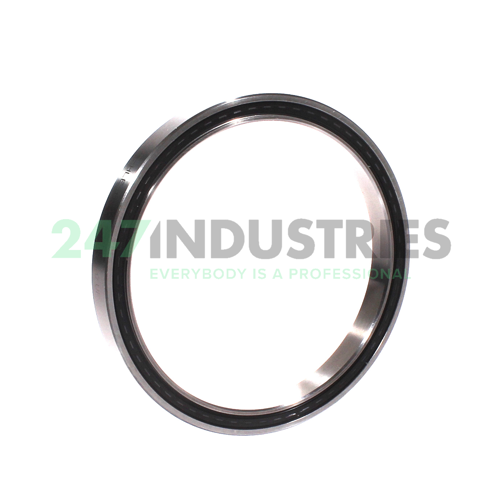

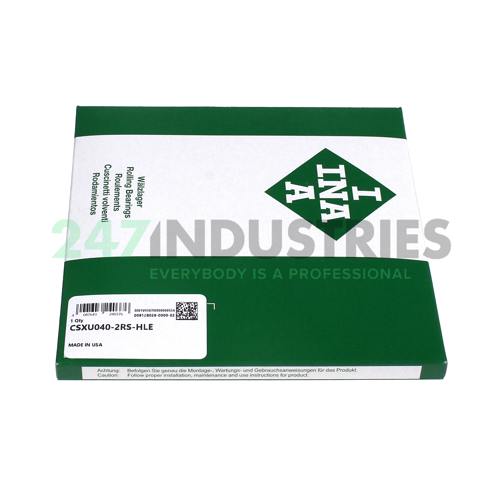

CSXU040-2RS-HLE INA

All dimensions

1. Inner (d) MM 101,6
2. Outer (D) MM 120,65
3. Width (B) MM 12,7
4. Inner (d) Inch 4
5. Outer (D) Inch 4.75
6. Width (B) Inch 0.5
7. Width (b) mm 12,7

Suffix description

1. 2RS Rubber Seals At Each Side Of The Bearing
2. HLE Factory Location Code, No Additional Meaning. Can Be Used As Standard

Technical details

1. Availability 3 pcs
2. Brand INA
3. Item number CSXU040-2RS-HLE INA
4. Also known as 0091280260000
   6000046
   FPXU400-2RS1
   JSU040XPO
   JU040XPO
   L18SG400.2RSD
   NBX10112DD

5. EAN 4047643240376
6. Category Four Point Contact Ball Bearing

Weight and Dimensions

1. Weight (kg) 0.236

Product Properties

1. Seal 2RS - Rubber Seal on Two Sides
2. Cage Type M - Brass Cage
3. External Modification No External Modification
4. Radial Internal Play Cn Normal Internal Play
5. Precision ABEC.1 Tolerances
6. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
7. Split Inner ring / Outer ring Standard

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 14400
2. Radial Dynamic Load Rating Cr (N) 10400
3. ECLASS number 23-05-08-03
4. ECLASS2 number 23-05-08-03
5. Medias description Thin Section Bearing CSXU..-2RS, four-point contact bearing
