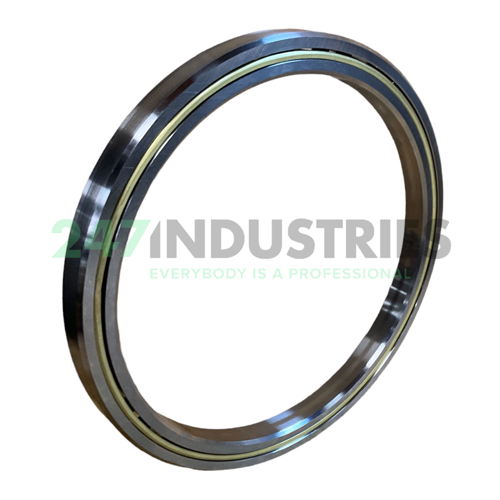

CSXG110-HLE INA

All dimensions

1. Inner (d) MM 279,4
2. Outer (D) MM 330,2
3. Width (B) MM 25,4
4. Inner (d) Inch 11
5. Outer (D) Inch 13
6. Width (B) Inch 1
7. Width (b) mm 25,4

Suffix description

1. HLE Factory Location Code, No Additional Meaning. Can Be Used As Standard

Technical details

1. Availability 2 pcs on Mon 23 Mar
2. Brand INA
3. Item number CSXG110-HLE INA
4. Also known as 0095844120000
   6000046
   FPXG1100
   KG110XP0
   L18WA1100
   NBX27925

5. EAN 4054362039884
6. Category Four Point Contact Ball Bearing

Weight and Dimensions

1. Weight (kg) 3.9

Product Properties

1. Seal No Seal
2. Cage Type M - Brass Cage
3. External Modification No External Modification
4. Radial Internal Play Cn Normal Internal Play
5. Precision ABEC.1 Tolerances
6. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
7. Split Inner ring / Outer ring Standard

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 136000
2. Radial Dynamic Load Rating Cr (N) 72000
3. ECLASS number 23-05-08-03
4. ECLASS2 number 23-05-08-03
5. Medias description Thin Section Bearing CSXG, four-point contact bearing
