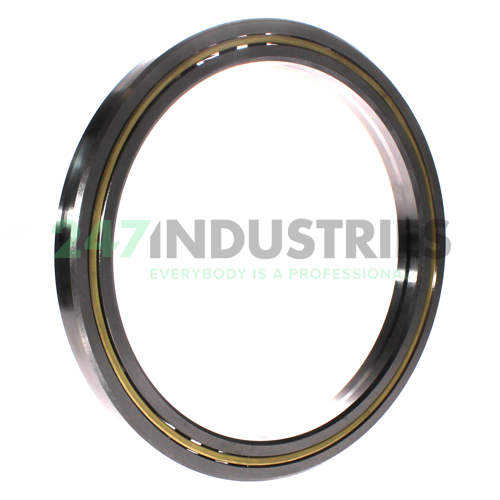

CSXG090-HLE INA

All dimensions

1. Inner (d) MM 228,6
2. Outer (D) MM 279,4
3. Width (B) MM 25,4
4. Inner (d) Inch 9
5. Outer (D) Inch 11
6. Width (B) Inch 1
7. Width (b) mm 25,4

Suffix description

1. HLE Factory Location Code, No Additional Meaning. Can Be Used As Standard

Technical details

1. Availability 4 pcs
2. Brand INA
3. Item number CSXG090-HLE INA
4. Also known as 0037477430000
   6000046

5. EAN 4054364296766
6. Category Four Point Contact Ball Bearing

Weight and Dimensions

1. Weight (kg) 3.266

Product Properties

1. Seal No Seal
2. Cage Type P - Plastic Molded Cage
3. External Modification No External Modification
4. Radial Internal Play Cn Normal Internal Play
5. Precision ABEC.1 Tolerances
6. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
7. Split Inner ring / Outer ring Standard

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 112000
2. Radial Dynamic Load Rating Cr (N) 67000
3. ECLASS number 23-05-08-03
4. ECLASS2 number 23-05-08-03
5. Medias description Thin Section Bearing CSXG, four-point contact bearing
